When installing an SFP or SFP+ module, you should hear a click as the triangular pin on the bottom of the
module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the
receptacle. Verify that the modules are completely seated and secured in their assigned receptacles on the line
card by firmly pushing on each SFP or SFP+ module.
Note
Bale Clasp SFP or SFP+ Module
The bale clasp SFP or SFP+ module has a clasp that you use to remove or install the module (see the figure
below).

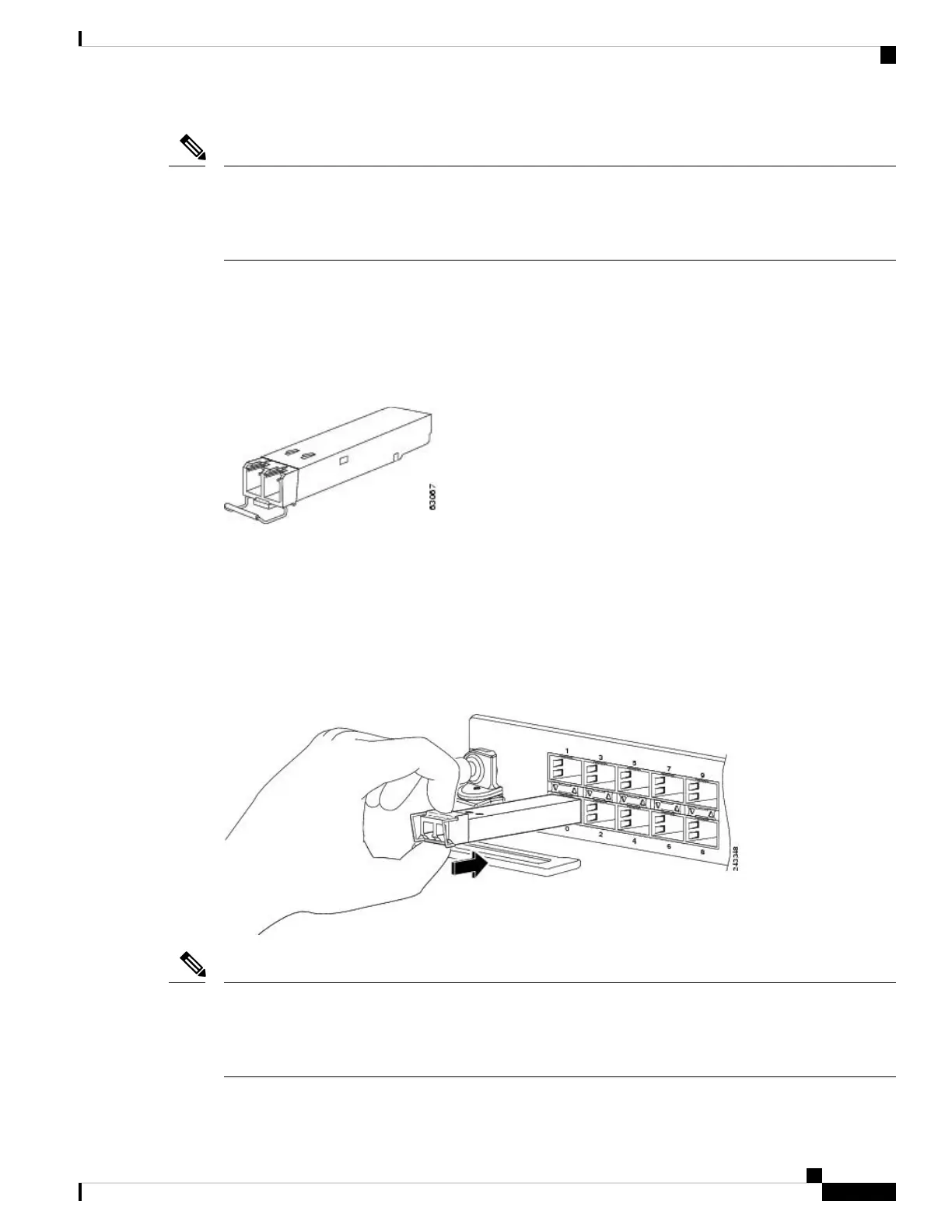

Figure 48: Bale Clasp SFP or SFP+ Module
Installing a Bale Clasp SFP or SFP+ Module
To install this type of SFP or SFP+ module, follow these steps:
1. Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
2. Close the bale clasp before inserting the SFP module.
3. Line up the SFP module with the port and slide it into the port (see the figure below .
Figure 49: Installing a Bale Clasp SFP Module into a Port
When installing an SFP or SFP+ module, you should hear a click as the triangular pin on the bottom of the
SFP module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured
in the receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles
on the line card by firmly pushing on each SFP module.
Note
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
97
Installing and Removing Line Cards and Transceiver Modules
Bale Clasp SFP or SFP+ Module
