Cisco A9K-MOD400-TR User Manual

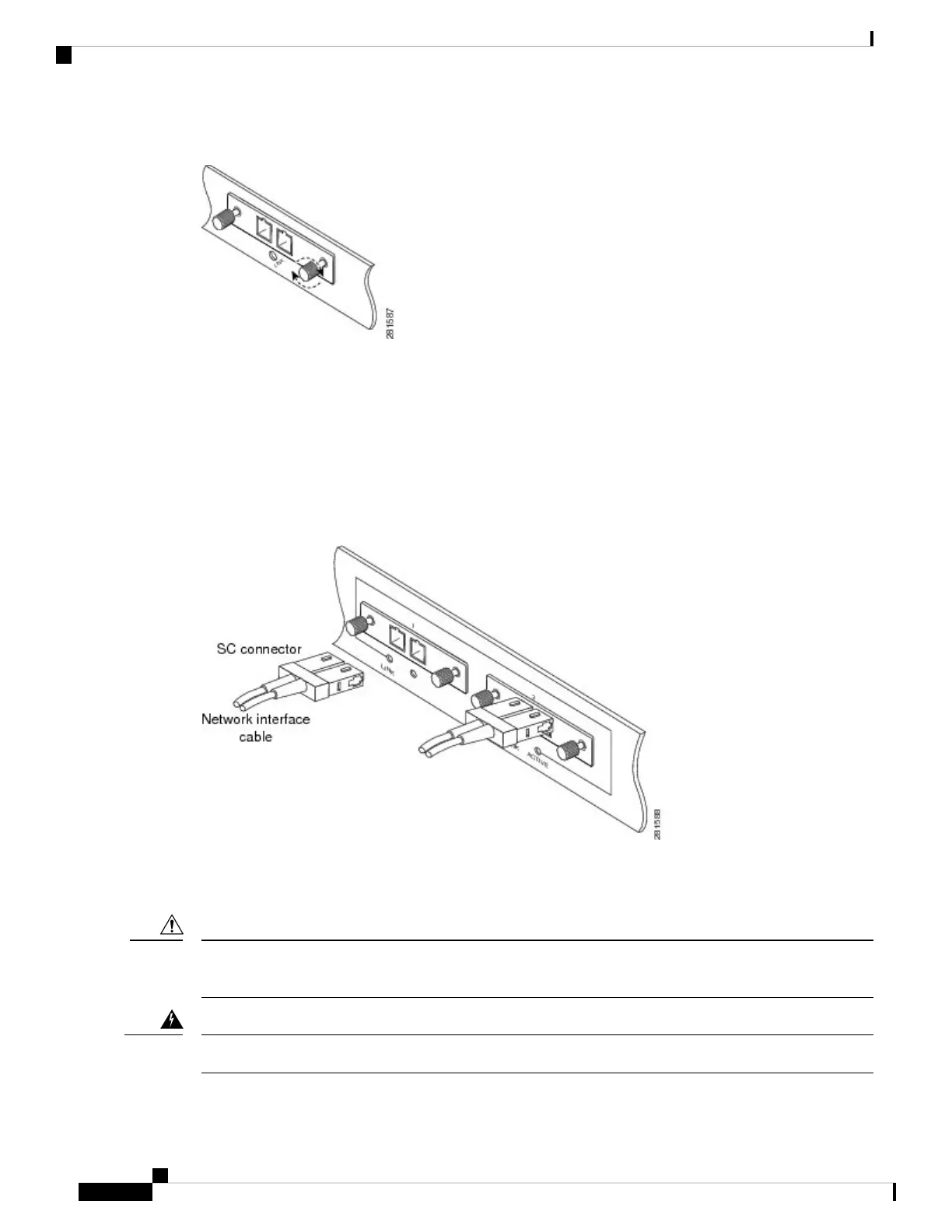

Figure 68: Securing a CFP Transceiver Module
7. Reinstall the dust plug into the CFP transceiver’s optical bore until you are ready to attach the network
interface cable.
8. When you are ready to attach the network cable interface, remove the dust plugs and inspect and clean fiber
connector end faces, and then immediately attach the network interface cable connectors into the CFP transceiver
optical bores (see the figure below).
For complete information on inspecting and cleaning fiber-optic connections, see Cleaning Fiber-Optic
Connectors.
Figure 69: Cabling an Optical CFP Transceiver Module with SC Connectors
Removing a CFP Transceiver Module
The CFP transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding
device when handling the CFP transceivers or coming into contact with the modules.
Caution
Class 1 laser product. Statement 1008
Warning
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
114
Installing and Removing Line Cards and Transceiver Modules
Removing a CFP Transceiver Module

Cisco A9K-MOD400-TR Specifications
