and two cages of 100G coherent transceiver CFP2. The line card is available only in -TR (Packet Transport
Optimized) version.
Each SFP+ and CFP2 cage has an adjacent Link LED visible on the front panel. The Link LED indicates the
status of the associated SFP+ or CFP2 cage, as described in Line Card LEDs, on page 138.
The following figure shows this line card’s front panel and connectors.

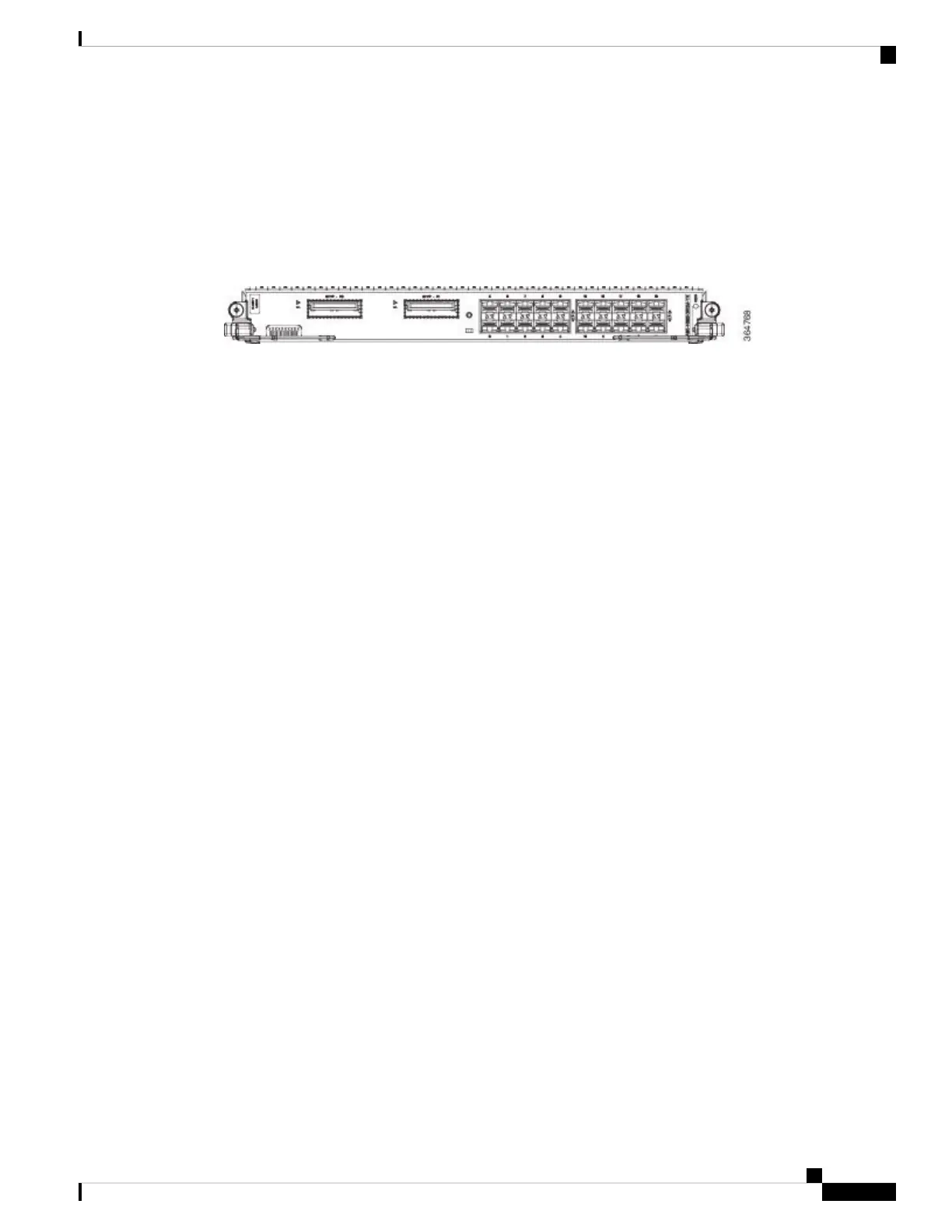

Figure 20: 2-Port 100G + 20-Port 10-Gigabit Ethernet Combination IPoDWDM Line Card with CFP2 and SFP+
Modular Line Cards and Modular Port Adapters
There are four types of modular line cards (MLCs) as follows:
• 80-Gb card
• 160-Gb card
• 200-Gb card
• 400-Gb card
Each type of card is available in -SE (Service Edge Optimized) and -TR (Packet Transport Optimized) variants.
The two variants are functionally equivalent, but vary in configuration scale and buffer capacity.
The 400 Gigabyte Modular Line Cards only support the following MPAs (Modular Port Adapters):
• 2-port 10GE Modular Port Adapter (MPA) with XFP
• 4-Port 10GE Modular Port Adapter (MPA) with XFP
• 8-port 10GE Modular Port Adapter (MPA) with SFP+
• 2-port 40GE Modular Port Adapter (MPA), with QSFP+
• 1-Port 40GE Modular Port Adapter (MPA), with QSFP+
• 20-Port 10-Gigabit Ethernet Modular Port Adapter (MPA) with SFP+
• 1-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2-DCO and CPAK
• 1-Port 200-Gigabit Ethernet Modular Port Adapter with CFP2-DCO
• 2-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2-DCO and CPAK
• 32-port GE Modular Port Adapter (MPA) with MACsec
The following figure shows the front panel of the modular line card with a 20-port Gigabit Ethernet MPA
installed in bay 1.
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
45
Overview
Modular Line Cards and Modular Port Adapters
To Next Page
