Mylar Tab SFP or SFP+ Module
The mylar tab SFP or SFP+ module has a tab to pull to remove the module from a port as shown in the
following figure.

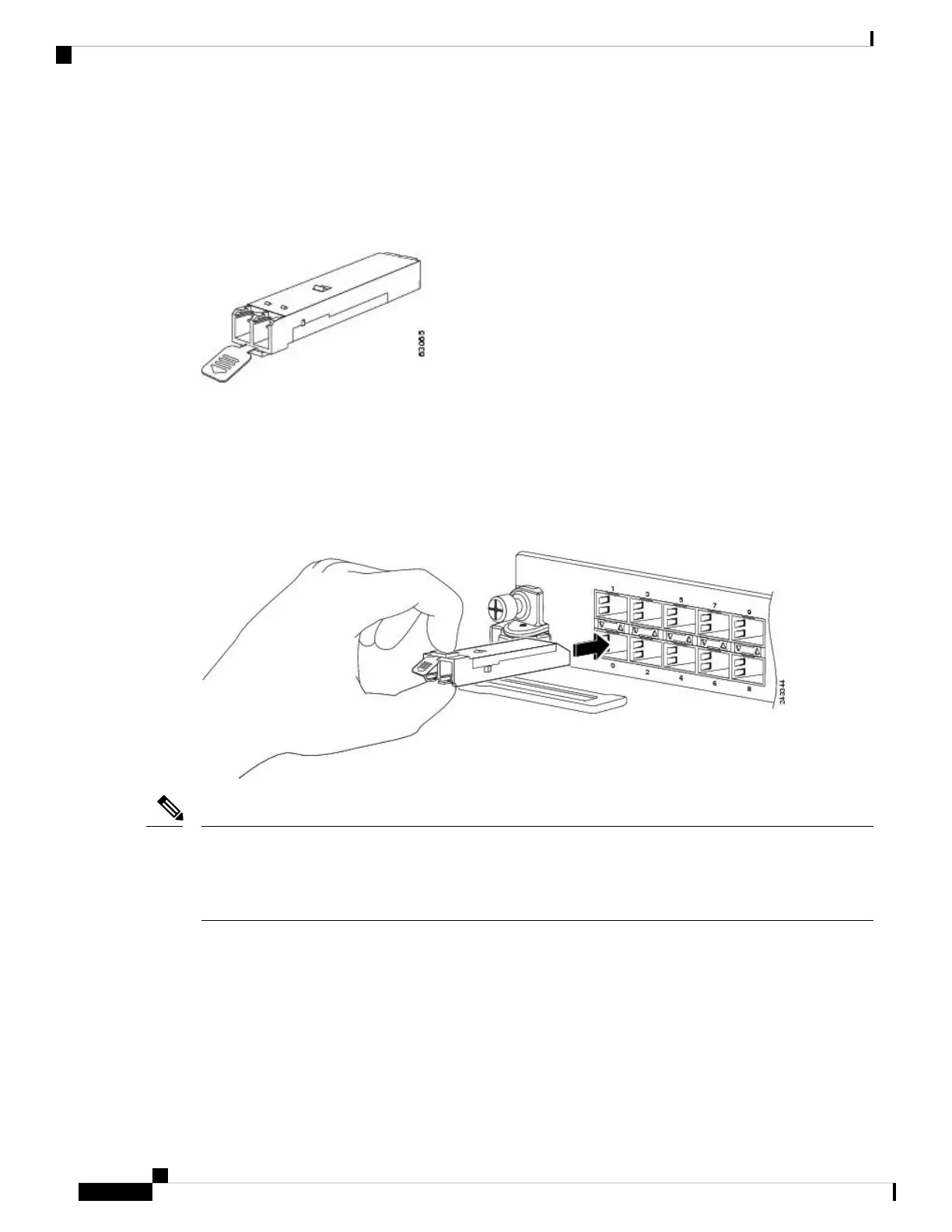

Figure 51: Mylar Tab SFP or SFP+ Module
Installing a Mylar Tab SFP or SFP+ Module
To install this type of SFP or SFP+ module, follow these steps:
1. Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
2. Line up the SFP module with the port, and slide it into place as shown in the following figure.
Figure 52: Installing a Mylar Tab SFP Module
When installing an SFP module, you should hear a click as the triangular pin on the bottom of the SFP module
snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle.
Verify that the SFP modules are completely seated and secured in their assigned receptacles on the line card
by firmly pushing on each SFP module.
Note
Removing a Mylar Tab SFP or SFP+ Module
To remove this type of SFP or SFP+ module, follow these steps:
1. Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
2. Disconnect and remove all interface cables from the ports; note the current connections of the cables to
the ports on the line card.
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
100
Installing and Removing Line Cards and Transceiver Modules
Mylar Tab SFP or SFP+ Module
