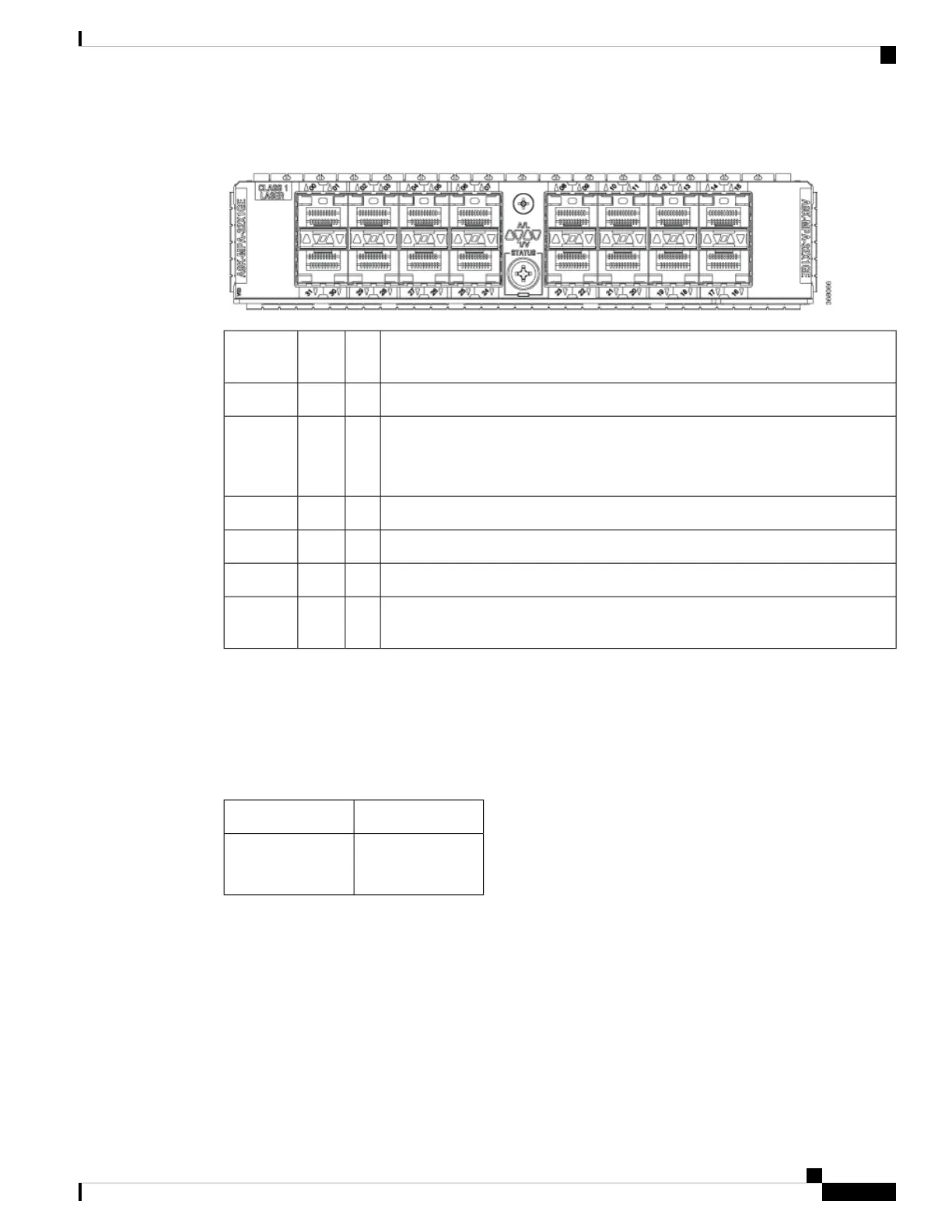

Figure 36: 32-Port Gigabit Ethernet MPA with MACsec
MeaningStateColorLED
Label
Port is not enabled.OffOffA/L
Port is enabled and the link is up.
The MPA A/L (Active/Link) LED will blink green and amber when there is traffic
activity.
OnGreen
Port is enabled and the link is down.OnRed
Modular port adapter power is off.OffOffSTATUS
Modular port adapter is ready and operational.OnGreen
Modular port adapter power is on and good, and modular port adapter is being
configured.
OnAmber
Compatibility Matrix for MOD 200 and MOD 400 Line Cards
The following tables list the MPAs supported with MOD200 (A9K-MOD200-SE, A9K-MOD200-TR) and
MOD400 (A9K-MOD400-SE, A9K-MOD400-TR) line cards.
Table 23: MPA supported on A9K-MOD200-SE and A9K-MOD200-TR
Bay 1Bay 0
None2x100G-MPA
20x10G-MPA
