Cub Cadet Challenger 550 User Manual

4‐37
Engine
Oil Pump
No.
1
Part Name

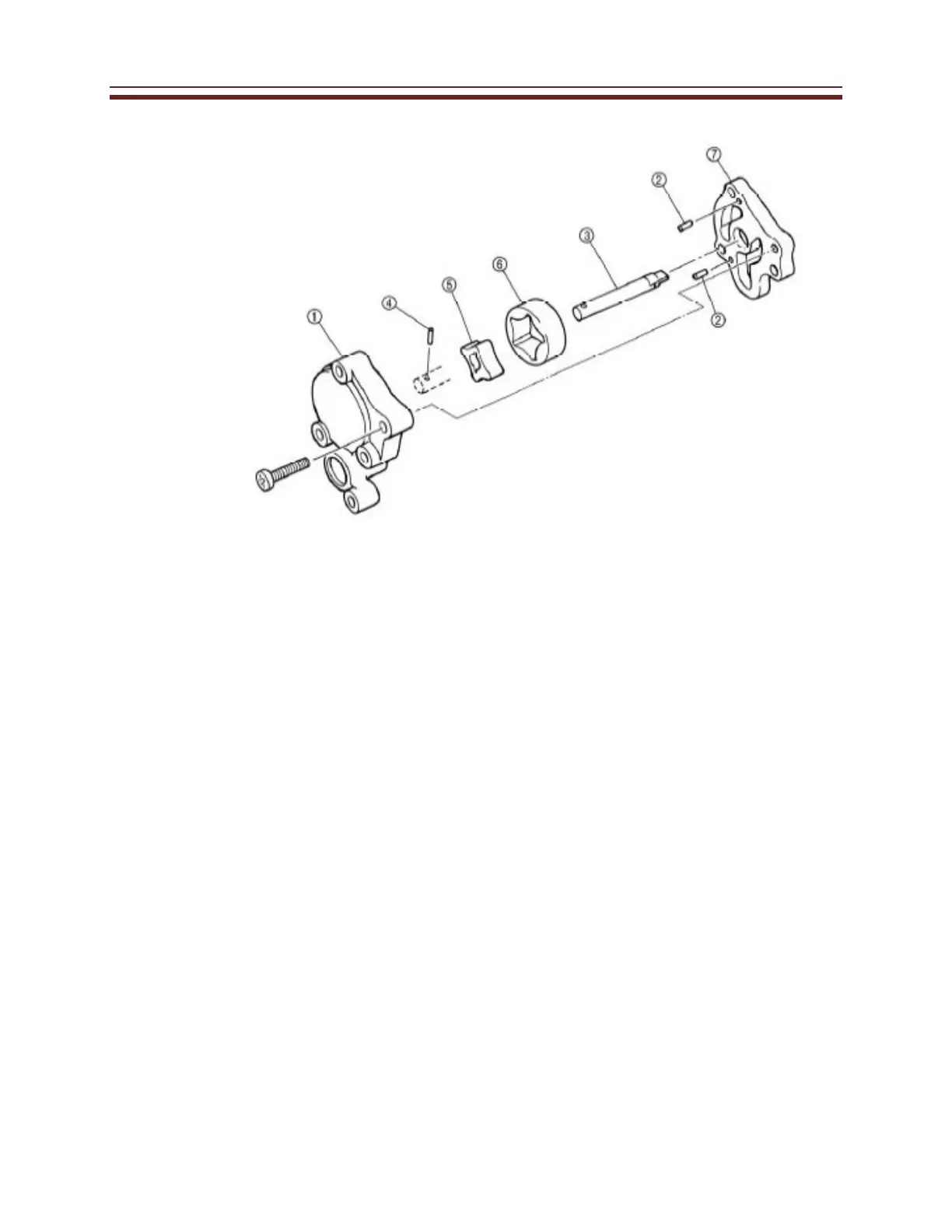

Disassembling the oil pump
Rotor cover
Qty
1
Remarks
Remove the parts in the order listed
2
Pin
2
3
Shaft
1
4
Pin
1
5
Inner rotor
1
6
Outer rotor
1
For installation, reverse the order
7
Oil Pump housing
1
listed

Cub Cadet Challenger 550 Specifications

General

Brand	Cub Cadet
Model	Challenger 550
Category	Utility Vehicle
Language	English
