Engine

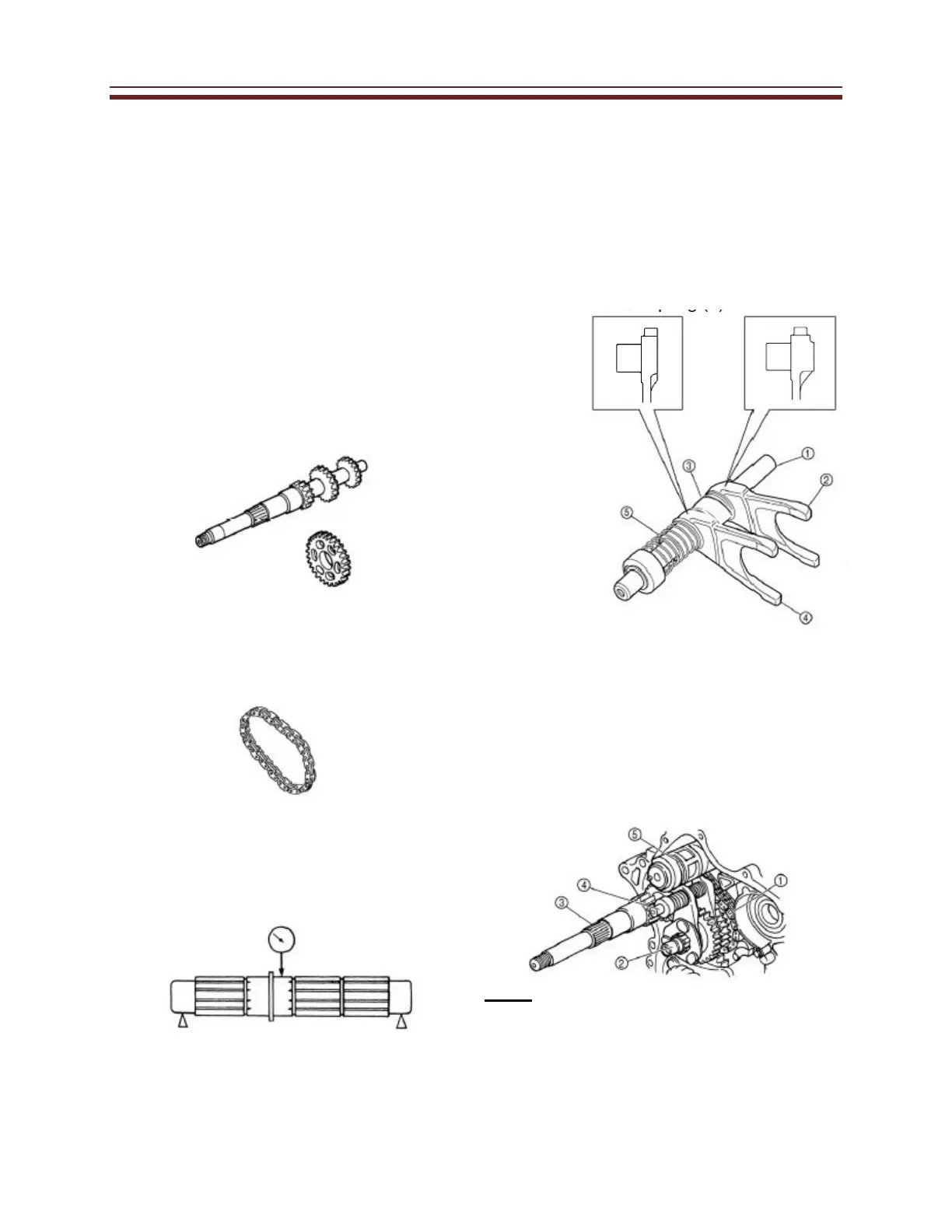

Inspect the secondary shaft and driven
sprocket.
• Gear teeth
Look for discoloration, pitting or
wear.
• Gear movement
Look for smooth operation.
• Cir clips
Look for bends, looseness or
damage.
• Chain
Look for cracks, stretch or wear.
Measure the shaft run out
Use a truing stand and a dial
gauge.
Shaft run out limit 0.06 mm
Install
• Assembling the shift fork
Guide bar (1)
Shift fork (2)
Long Spring (3)
Shift fork (4)
Short Spring (5)
Installing the transmission
• Chain(1)
• Drive shaft assembly(2)
• Secondary Shaft(3)
• Shift fork assembly(4)
• Shift drum(5)
• Low wheel gear
Note:
Oil each gear and bearing thoroughly
before assembling be sure the
transmission is in neutral and that the
gears turn freely.
