Electrical
Troubleshooting a starter motor failure
Check:
1.
Fuses (Main, Ignition, and Signaling) for continuity.
2.
Battery for 12.8V or more
3.

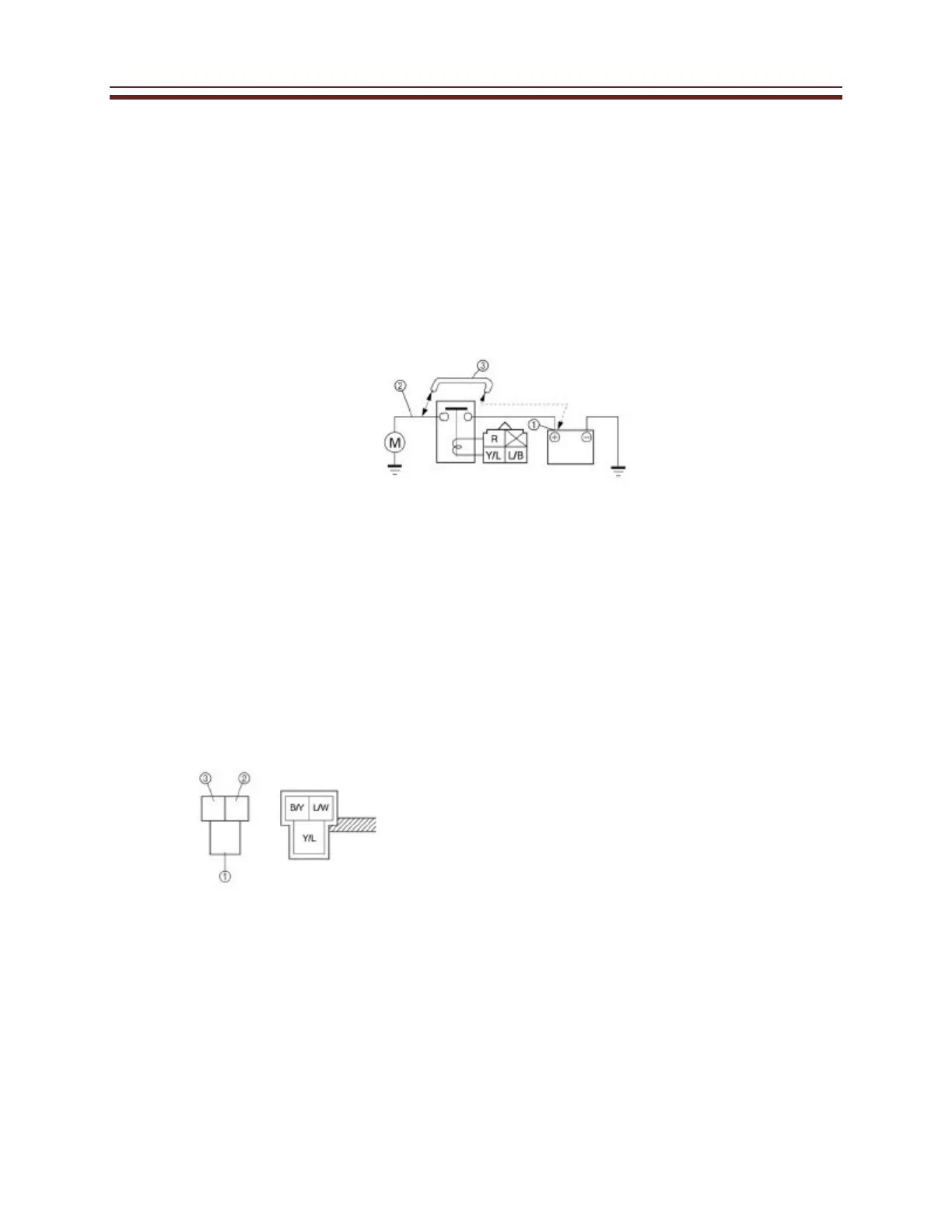

Starter motor
Connect a jumper of equal size from battery positive to the starter motor.
Warning: If the size of jumper wire is too small the jumper could burn and
or cause injury.
4.
Starter relay
Connect Battery positive to Yellow/Blue terminal (1)
Connect Battery Negative to Blue/Black terminal (2)
Connect multi meter positive to Red terminal (3)
Connect multi meter negative to Black terminal (4).
Check for continuity.
5.
Main Switch for continuity
6.
Gear position switch for continuity
7.
Brake light switch for continuity
8.
Wiring connections
