5‐63
Chassis

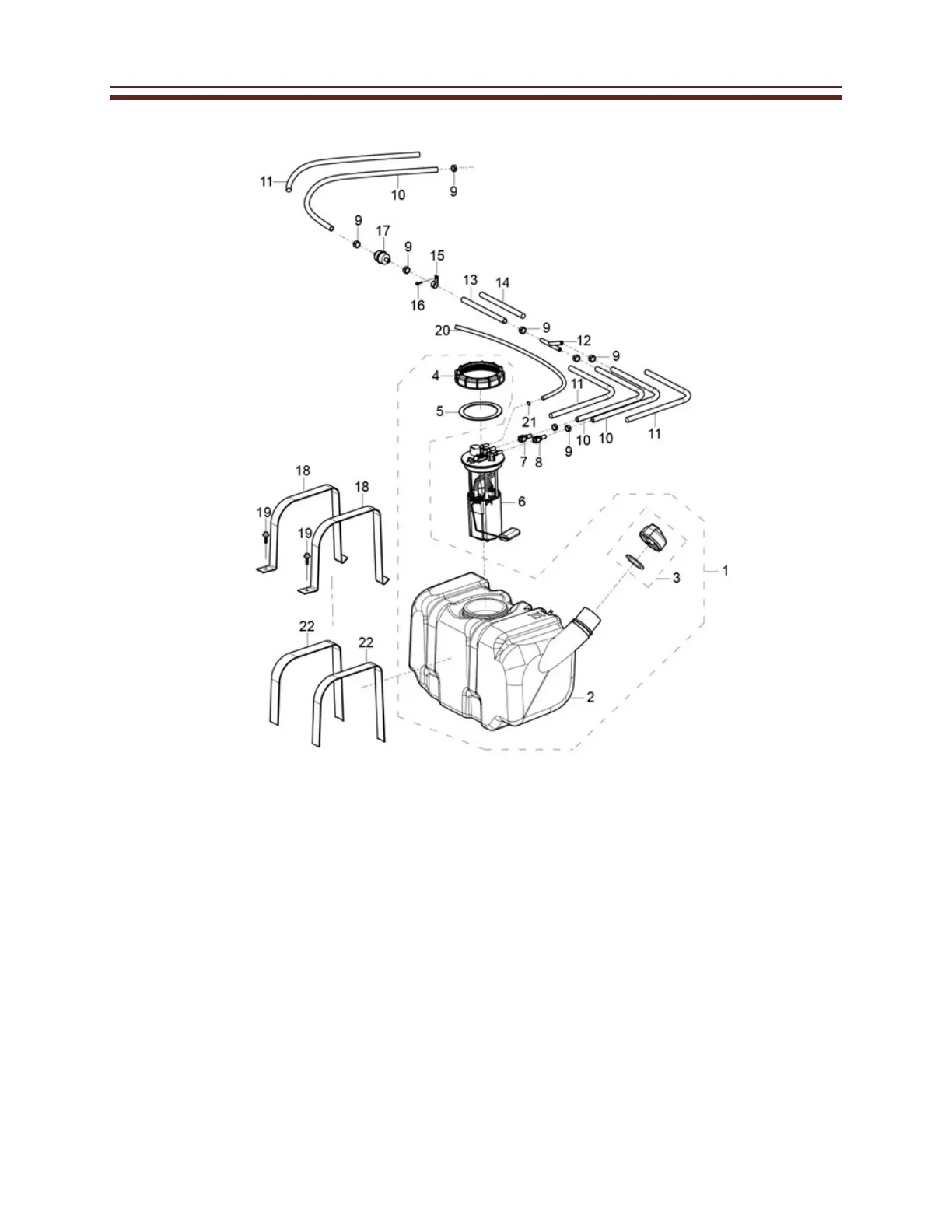

FUEL TANK
No.
Part Name
Qty
Remarks
1
Removing the fuel tank
Fuel tank assembly
1
2
Fuel tank
1
3
Cap gas tank
1
4
Cap fuel pump
1
5
Gasket pump
1
6
Fuel pump
1
7
Connector outlet fuel
1
8
Connector inlet fuel
1
9
Climp A
8
10
Line fuel(0.05MPa)
Ⅰ
3
11
Hose heat insulation
3
