Cub Cadet Challenger 550 User Manual

5‐16
Chassis

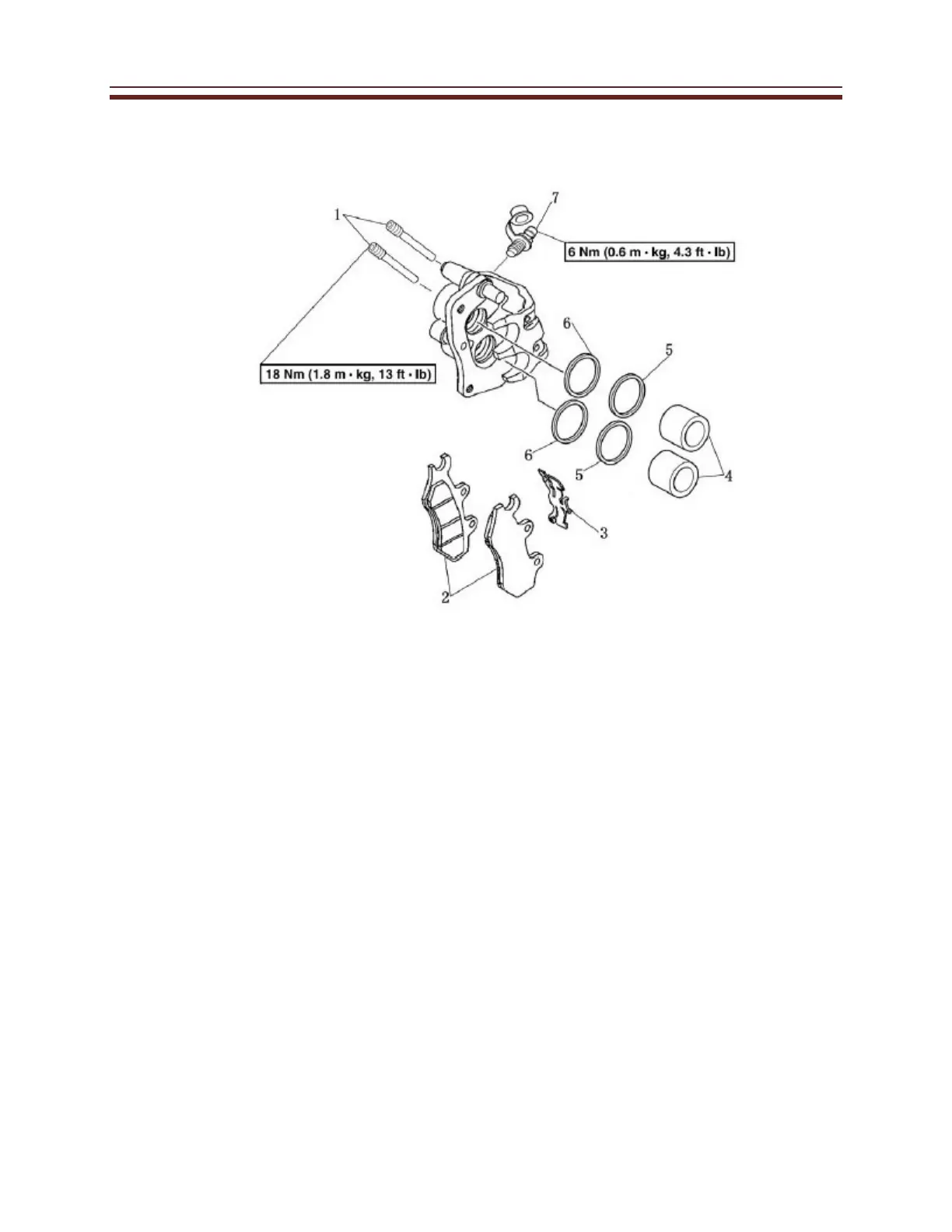

Brake Caliper Disassembly
No.
Part Name
Qty
Remarks
Disassembling the front brake caliper
Remove the parts in the order
listed
1
Brake pad holding bolt
2
2
Brake pad
2
3
Pad spring
1
4
Brake caliper piston
1
5
Dust seal
2
6
Caliper Piston seal
2
For installation, reverse the
7
Bleed screw
2
order listed.

Cub Cadet Challenger 550 Specifications

General

Brand	Cub Cadet
Model	Challenger 550
Category	Utility Vehicle
Language	English
