Cub Cadet Challenger 550 User Manual

2-23
Specifications

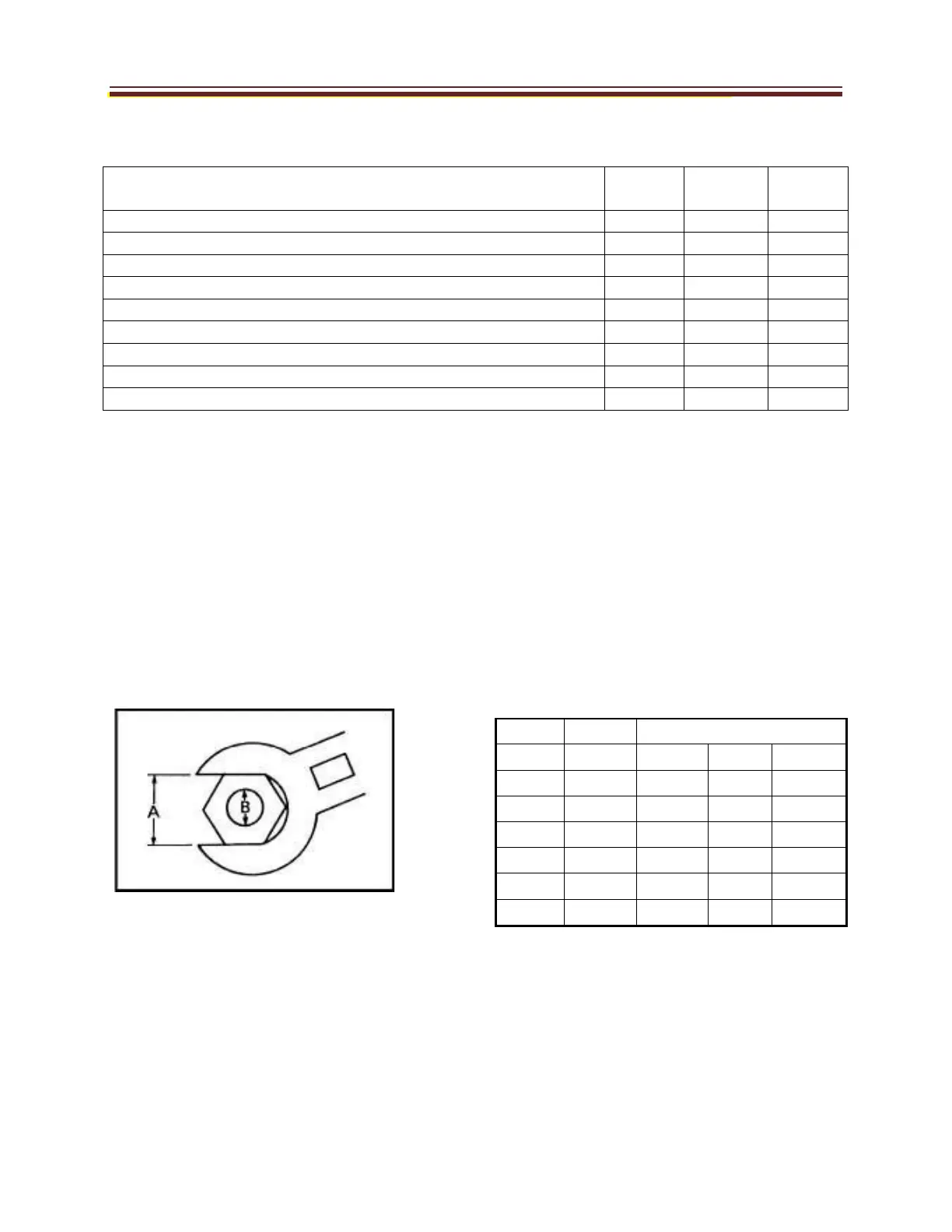

CHASSIS TIGHTENING TORQUES
Part to be tightened
Thread
Size
Torque
Nm
Torque
Ft Lbs
Front bumper and frame
10mm
60
44
12mm
90
43
Upper instrument panel and frame
6mm
8
5.9
Ceiling side frame (enclosure) and frame
10mm
60
44
Support frame
10mm
60
44
Top frame
10mm
60
44
Side Frame
10mm
60
44
Seat Support
8mm
22
16
Footrest plate
6mm
8
5.9
General Tightening Torque Specs
This chart specifies tightening torques for standard fasteners with a standard ISO thread
pitch. Tightening torque specifications for special components or assemblies are
provided for each chapter of this manual. To avoid warping tighten multi-fastener
assemblies in a crisscross pattern and progressive stages until the specified tightening
torque is reached. Unless otherwise specified, tightening torque specifications require
clean, dry threads. Components should be at room temperature.
A: Distance between flats
B: Outside thread diameter
A B General tightening torques
(nut) (bolt) Nm m · kg ft · lb
10 mm 6 mm 8 0.8 5.9
12 mm 8 mm 22 2.2 16
14 mm 10 mm 60 6.0 44
17 mm 12 mm 90 9.0 66
19 mm 14 mm 120 12.0 88
22 mm 16 mm 150 15.0 110

Cub Cadet Challenger 550 Specifications

General

Brand	Cub Cadet
Model	Challenger 550
Category	Utility Vehicle
Language	English
