Chassis

5‐12

Inspect the Front Brake Discs

•

Inspect for galling or damage

•

Measure brake disc runout.

Brake disc runout.

0.10 mm (0.004 in)

•

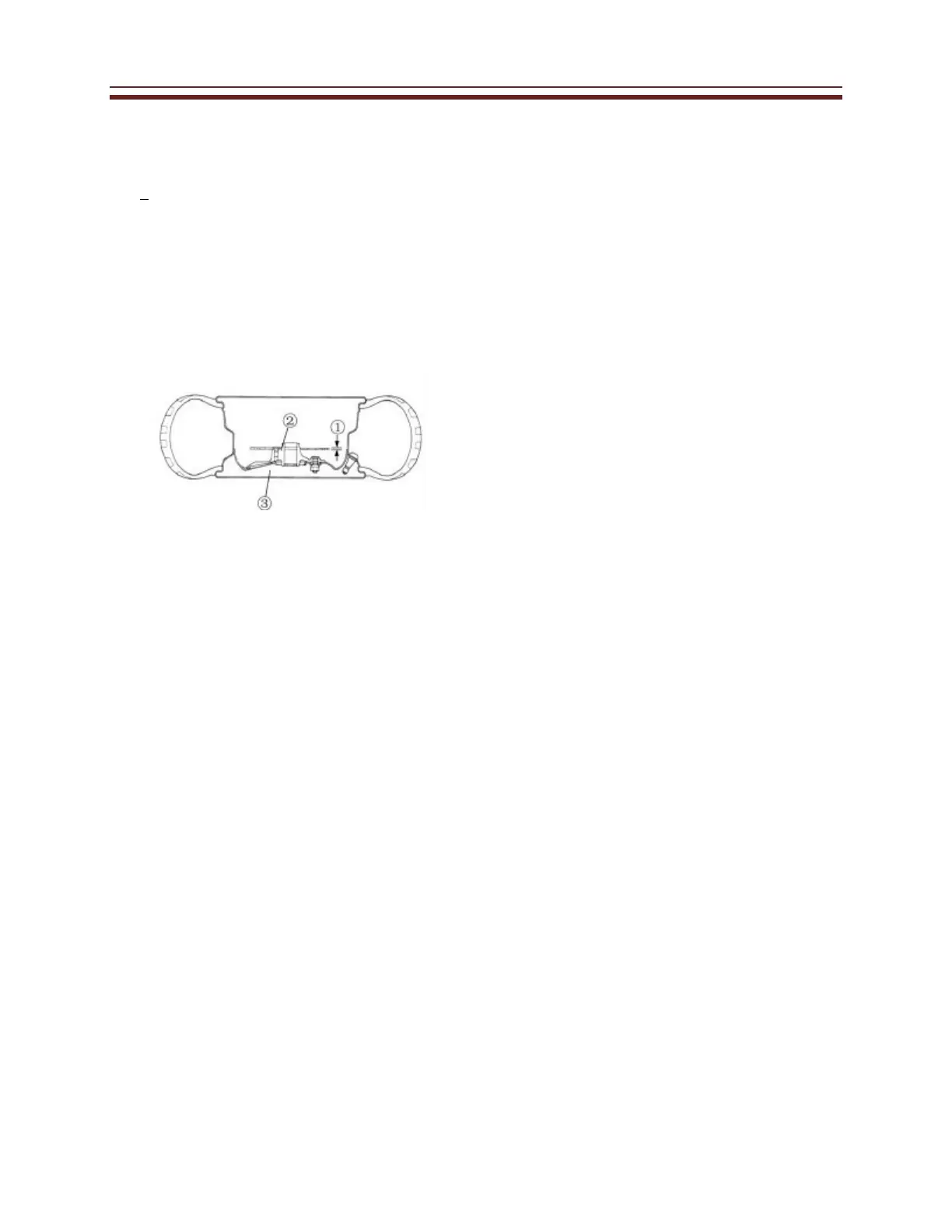

Brake disc thickness (1)

•

Wheel Hub (2)

•

Rim (3)

Brake disc minimum thickness

3.0 mm (0.12 in)
