D-Link DSR-Series User Manual 88
Section 6 - Wireless Settings
WPS

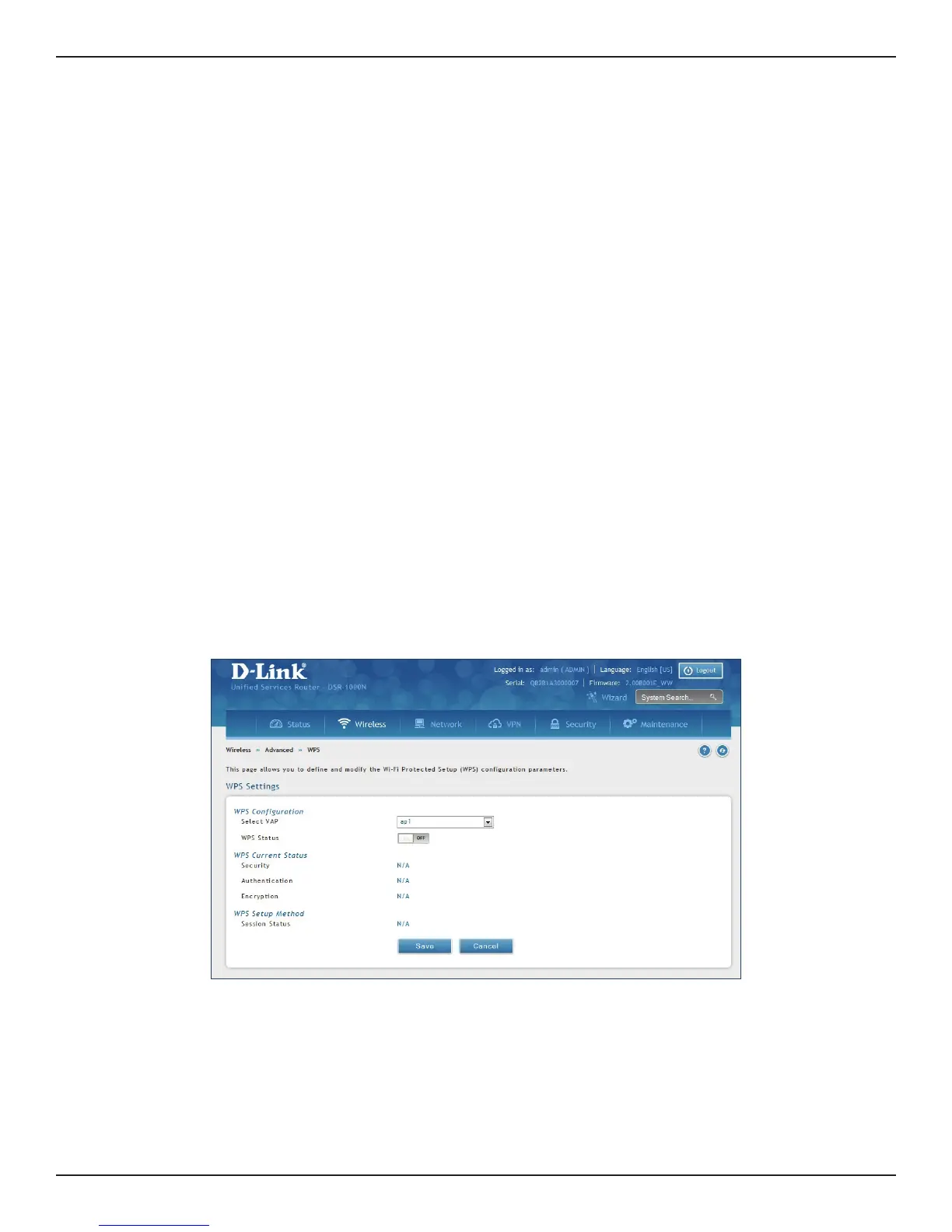

Path: Wireless > Advanced > WPS
WPS is a simplied method to add supporting wireless clients to the network. WPS is only applicable for APs that
employ WPA or WPA2 security. To use WPS, select the eligible VAPs from the drop-down menu of APs that have
been congured with this security and enable WPS status for this AP.
The WPS Current Status section outlines the security, authentication, and encryption settings of the selected AP.
These are consistent with the AP’s prole. There are two setup options:
• Personal Identication Number (PIN): The wireless device that supports WPS may have an
alphanumeric PIN, if it does add the PIN in this eld. The router will connect within 60 seconds
of clicking the “Congure via PIN” button immediately below the PIN eld. There is no LED
indication that a client has connected.
• Push Button Conguration (PBC): For wireless devices that support PBC, press and hold the
WPS button for two seconds, and then press the WPS button (or initiate WPS via GUI) on your
wireless client within two minutes. The AP will detect the wireless device and establish a secure
link to the client.
To enable and connect clients using WPS:
1. Click Wireless > Advanced > WPS.
2. Select which VAP you want to perform the WPS process from the drop-down menu.
3. Toggle WPS Status to ON and click Save.
