Figure 15 - Help Link
2. Click any text or term displayed in green italics to view its description or definition.
3. To disable the help mode, click Done.
Logout
Use this link to logout of the Dell W-Series Instant UI.
Monitoring
This link displays the Monitoring pane. This pane can be used to monitor the DellW-Instant
network. Use the down arrow located to the right side of these links to compress or expand
the monitoring pane. The monitoring pane consists of the following sections:
l "Info " on page 33
l "RF Dashboard" on page 34
l "Usage Trends " on page 35

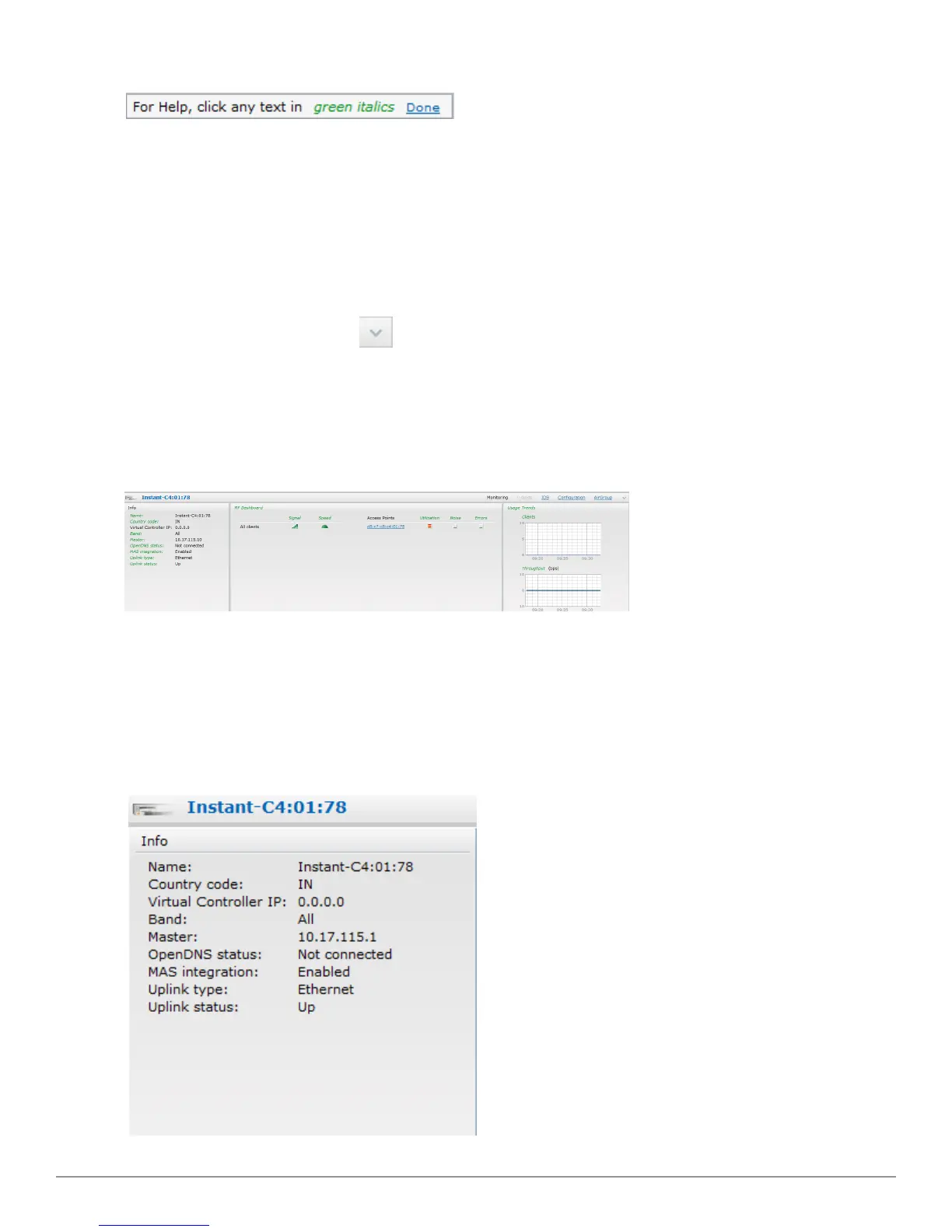

Figure 16 - Monitoring on Instant UI
Info
Displays the configuration information of the Virtual Controller by default. In a "Network View"
on page 232, this section displays configuration information of the selected network. Similarly, in
an "DellW-Instant Access Point View" on page 235 or "Client View" on page 243, this section
displays the configuration information of the selected W-IAP or the client.
Figure 17 - Info Section in the Monitoring Pane
Dell PowerConnect W-Series Instant Access Point 6.2.0.0-3.2.0.0 | User Guide 33 | DellW-Instant User Interface
