Hardware information Ethernet pinouts

Digi CM User Guide 185

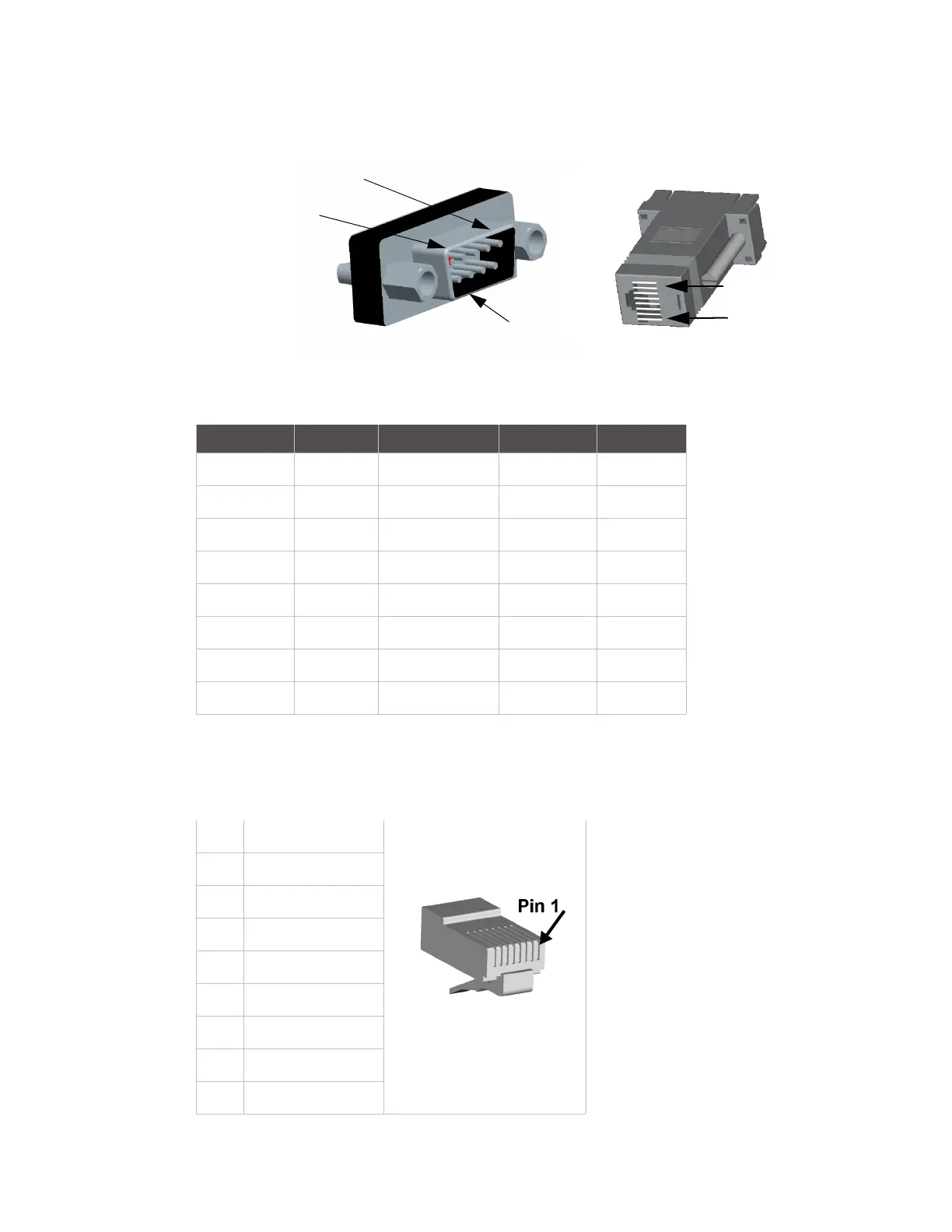

DB-9 Male modem adapter (Digi 8-pack reorder P/N 76000702)

(Available but not included)

DB-9 Male Modem to RJ-45 Pin Assignment

Ethernet pinouts

The Digi CM unit uses a standard Ethernet connector, that is a shielded and compliant with AT&T

258 specifications.

RJ-45 Signal DB-9M Signal

1CTSConnected to8CTS

2DSRConnected to6DSR

3RxDConnected to2RxD

4GNDConnected to5GND

5 DCD Connected to 1 DCD

6TxDConnected to3TxD

7DTRConnected to4DTR

8RTSConnected to7RTS

Pin #1

Pin #8

Pin #5

Pin #1

Pin #6

Pin Description

1Tx+

2Tx-

3Rx+

4NC

5NC

6Rx-

7NC

8NC
