Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
2-10
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
500 Series Manifold Stations

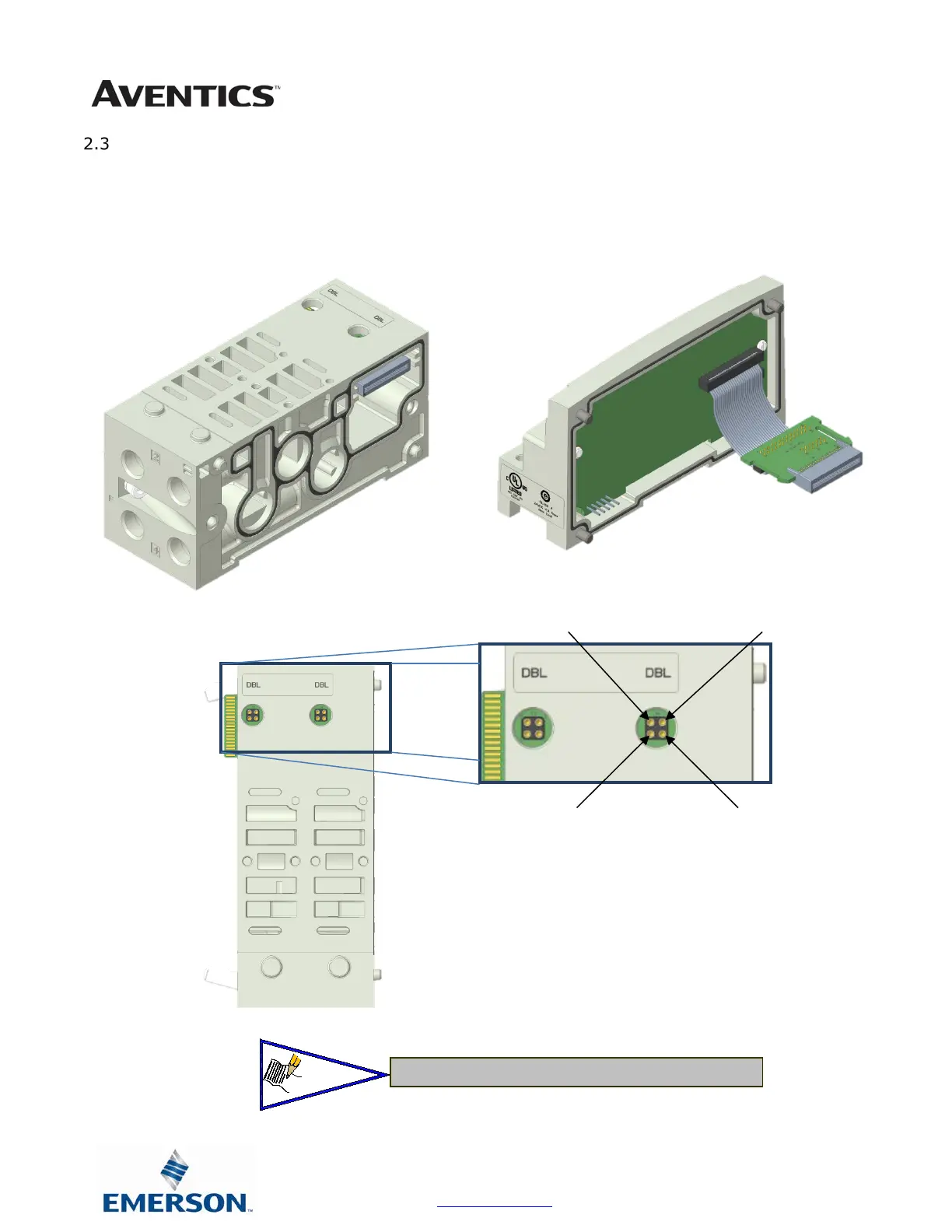

Solenoid Coil Connections using Z-Board™ Technology for 50X valve series
Z-Board
™
plug together technology connects all valve solenoids to the valve coil output driver board, located in the valve
adapter. There is a maximum of 32 coil outputs available on the complete manifold assemblies. The 32 available outputs are
accessed on the 501 series valves utilizing 4 station manifolds and on the 502 and 503 series utilizing 2 station manifolds.
NOTE!
A single solenoid valve’s coil is always on the “14” end.
14 Solenoid,
Pin No. 1
Not Used,
Pin No. 3
Common,
Pin No. 4
12 Solenoid,
Pin No. 2
