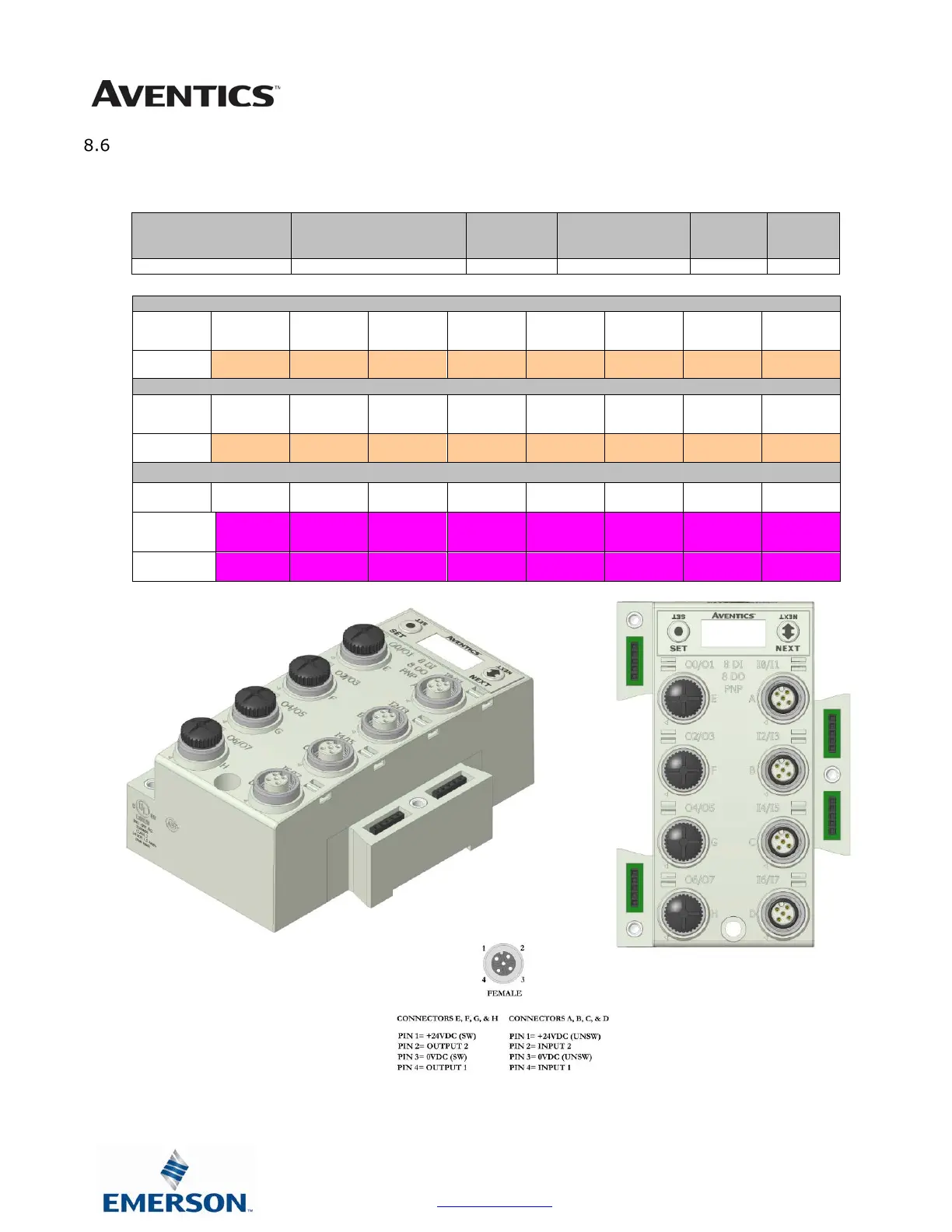

Digital Input/Output Modules
Two Digital I/O per Connector – M12 Female Modules
Module Part No. I/O Type
Short Circuit
Protection
Short Circuit
Protection Status
Bits
Output
Points
Input
Points
240-211
PNP (Sourcing)
YES
YES
8
8
Output Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Output 7 Output 6 Output 5 Output 4 Output 3 Output 2 Output 1 Output 0
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Input 7 Input 6 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable)
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status
X+1
(Selectable)
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
