G3 Series EtherCAT
TM
Technical Manual
7-59
Subject to change without notice
www.asco.com/g3

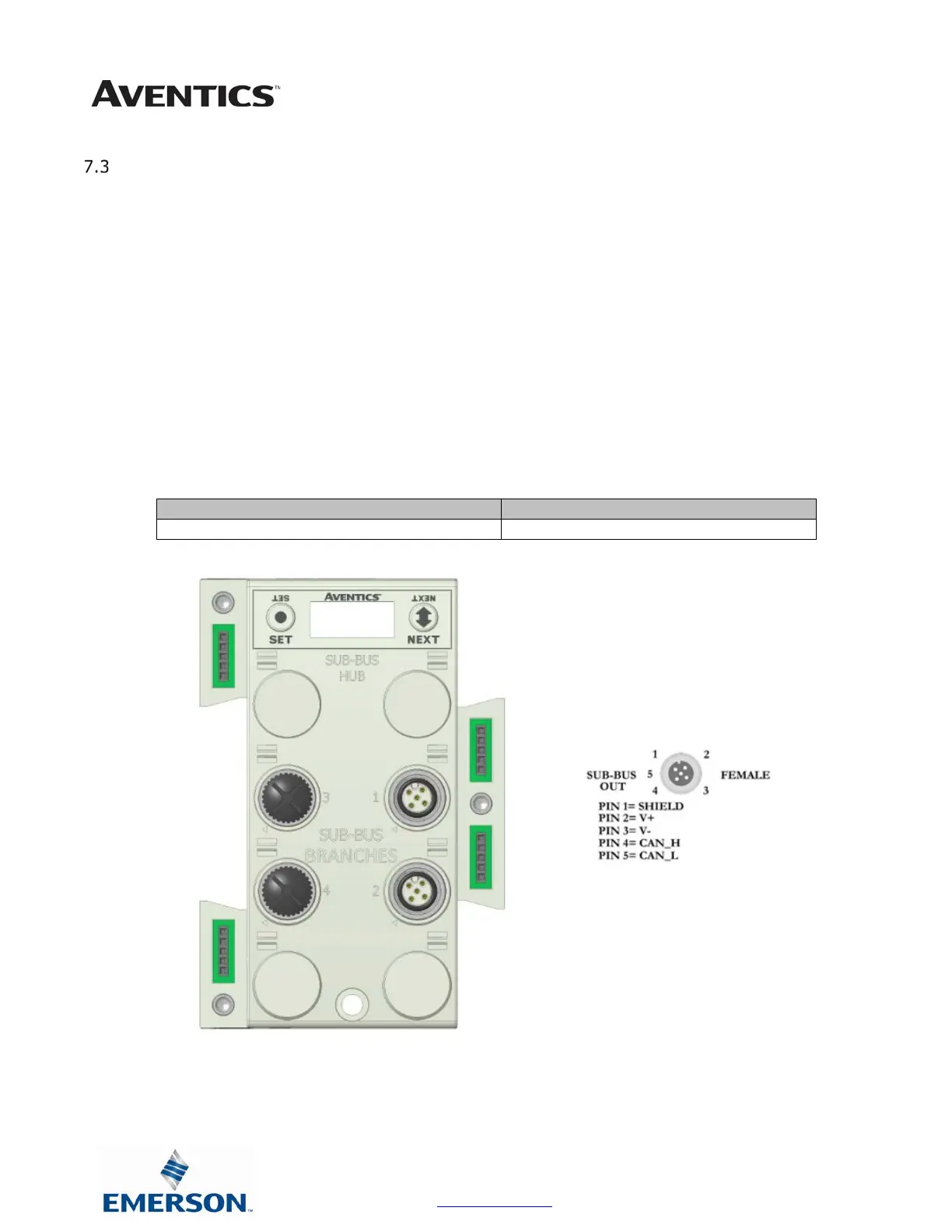

Sub-Bus Hub Module
The G3 HUB module allows for branch distribution from the I/O side of the G3 System and can be
integrated into the existing G3 Series Sub-Bus configuration. Auto Addressing allows for trouble free set up
and configuration. Input, Output, as well as Valve manifolds can be attached to the available four Branches
on a HUB module. Each G3 System can support up to two HUB modules, allowing for maximum flexibility.
The HUB module is transparent to the I/O side of the G3 and does not reserve one of the potential sixteen
positions.
13. Used when distributing the Sub-Bus to another assembly.
14. SUB-BUS OUT - 5 pin M12 female communication connector.
o Used to distribute the Sub-Bus to the next Sub-Bus assembly.
o Carries 24 VDC power (up to 3A) for electronics of the next module.
15. Cannot connect a Hub to a branch of another Hub
16. Each branch of the Hub can accommodate a sub-bus cable length of 30 meters.
Sub-Bus Hub Module 240-326
