Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
4-19
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

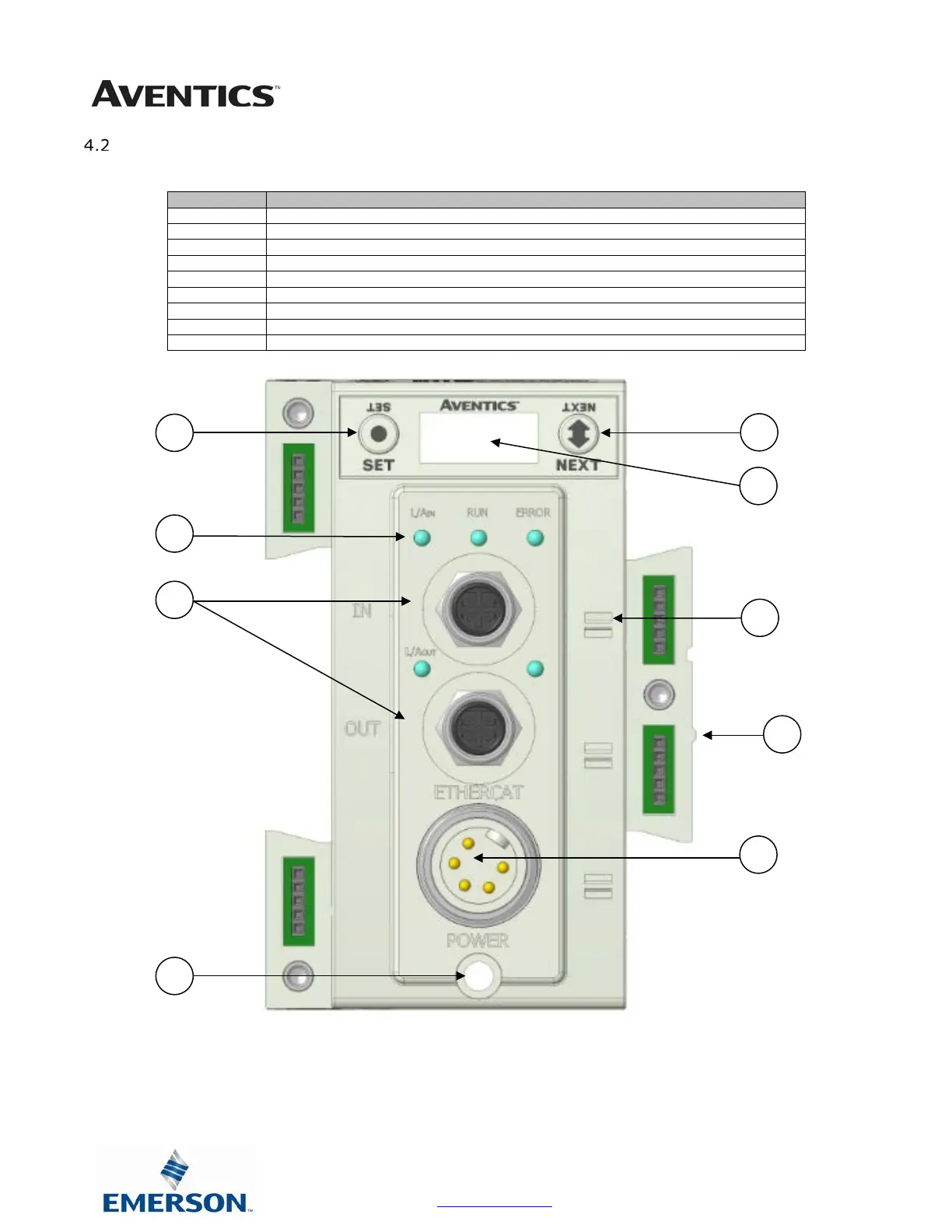

Communication Module Description
Detail No.
Description
1
“Set” Button – used to navigate through user menus and to set parameters
2
Status LEDs
3
4 Pin M12 D-Coded Female Communication Connectors
4
Mounting Hole
5
“Next” Button – used to navigate through user menus and to set parameters
6
Graphic Display – used to display parameter information
7
Slot for text ID tags
8
Keying for preventing I/O module insertion
9
5 Pin MINI Male Power Connector
6
8
7
3
9
4
1
2
5
