Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
9-91
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
502 and 503 Series, up to 80 solenoid coils
502 and 503 series, 4 station manifold with integrated 16 coil valve driver, power connector and mid-station supply and
exhaust ports
• To be used with 502 and 503 series valves on valve manifold assemblies with 33-80 coils.
• Up to 3 of these valve drivers can be used on each assembly
• Required to use on manifold assemblies larger than 32 coils, this manifold block has a M12 power connector and
two additional port 1 supply and port 3/5 exhaust ports.
• Aux power is required and will provide power to the 16 coils available via the extended coil valve driver.
Pin #1 = No Connection
Pin #2 = No Connection
Pin #3 = 0 VDC
Pin #4 = +24 VDC
1
3
4
2
Byte X
Byte X+1
Byte X+2
Byte X+3
Byte X+4
Byte X+5
Byte X+6
Byte X+7
Byte X+8
Byte X+9
Recommended blank station plates to achieve
maximum number of coils with least number of
stations

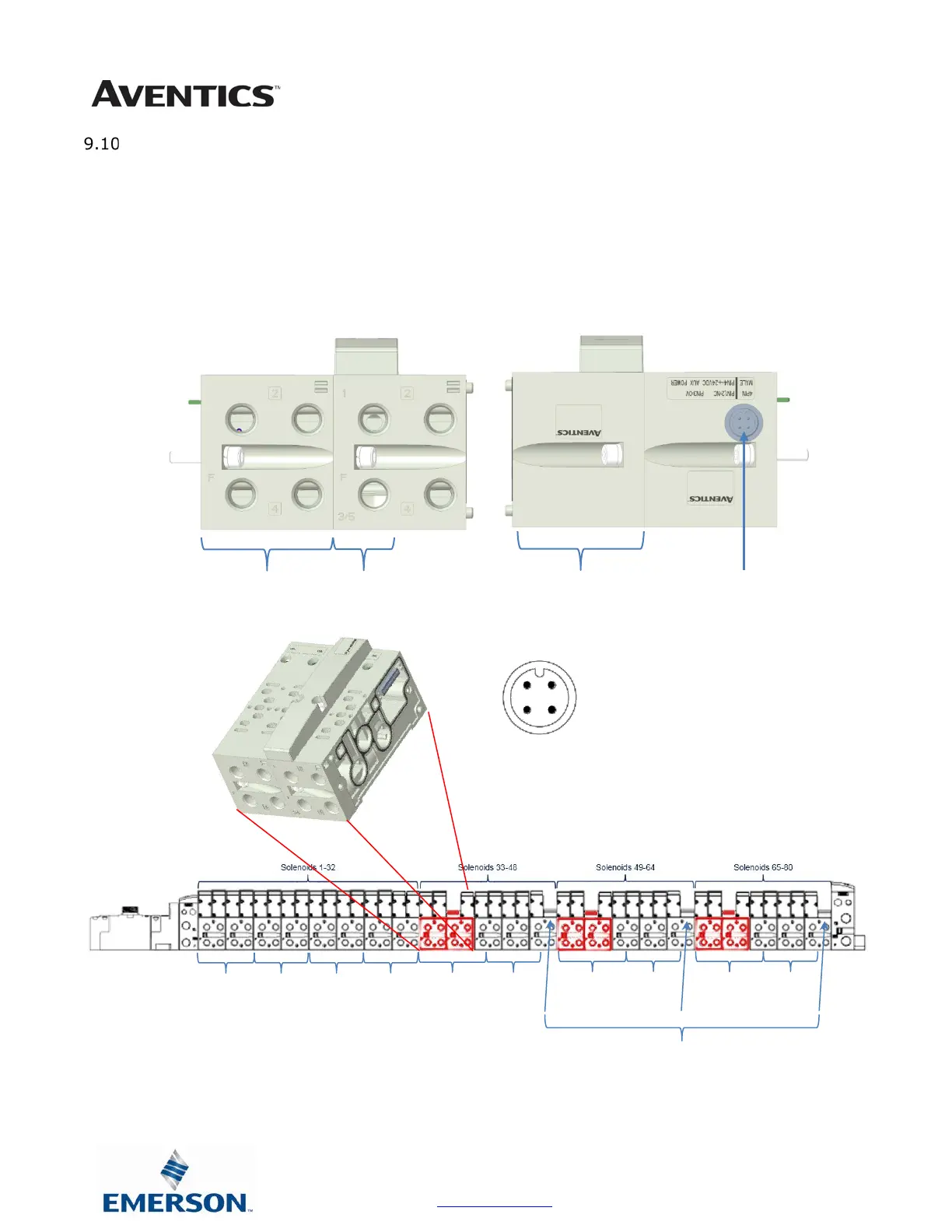

Auxiliary Power
Integrated 16 coil
valve driver
Mid-Station Supply/Exhaust
