Zoned Power

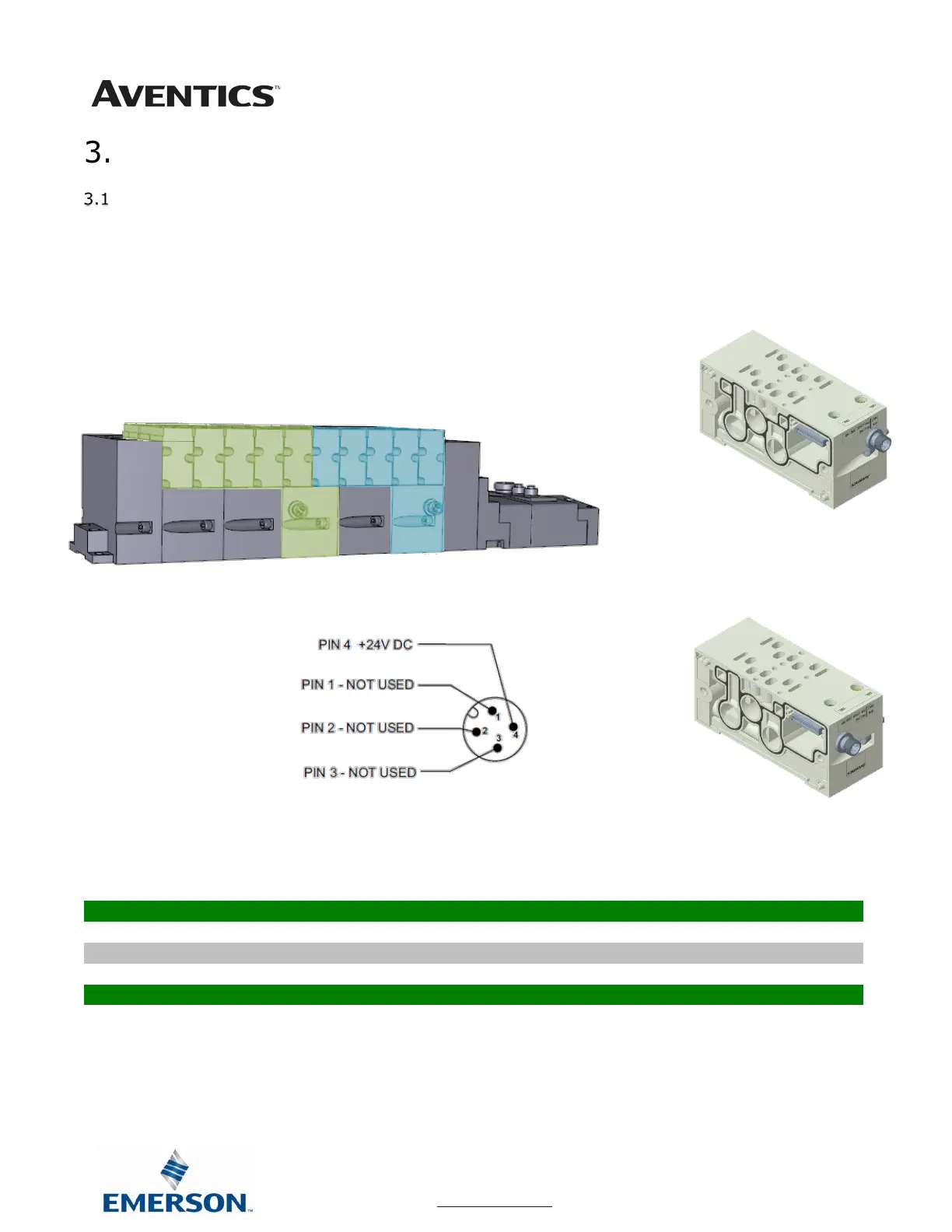

503 Series Zoned Power application
The Zoned Power Manifold blocks can be incorporated into a 503 manifold assembly
to isolate Power to a number of valve stations, independent from the main power of
the manifold. This is achieved by the integral 4 Pin M12 connector along with the
modified manifold board. The total number of Zoned Power Manifold blocks is
determined by the maximum solenoid outputs as defined by the type of interface
(e.g. G3 Electronics, Terminal Strip, D-Sub). For user flexibility, the Zoned Power
Manifold blocks are available in both "proprietary" and "ISO" versions and can be
ordered with the M12 connector starting at the first or second station.
Technical Data
Electrical Data:
Voltage:
24 VDC (0 VDC must be common with main power)
Connection:
4 Pin M12 Single Key Male
Environmental:
IP65 (with proper connection)
V Wiring Option
W Wiring Option
V
W
W & V Connector Pin Out
