Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
5-35
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

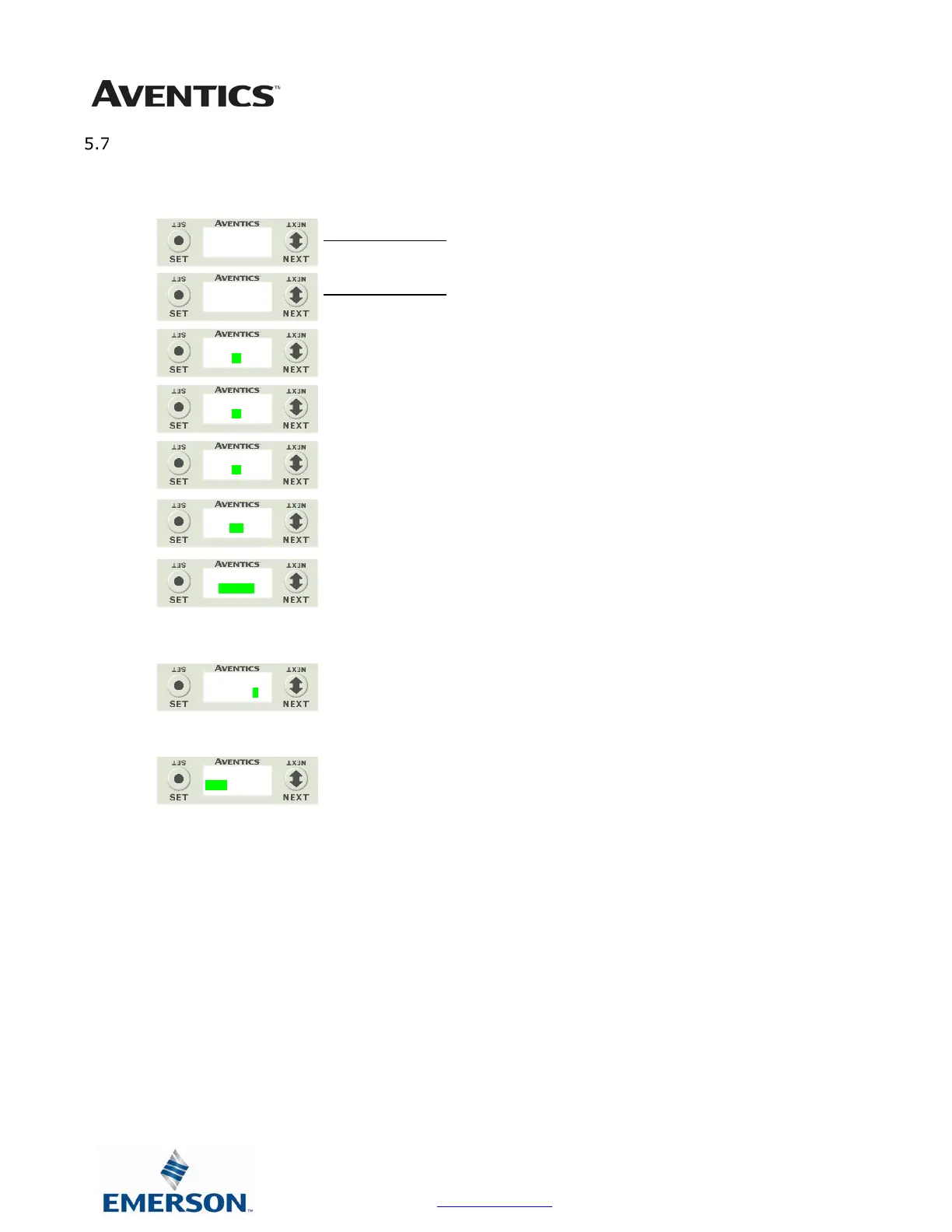

Config Mode
Steps to Set Coil Configuration
1. Press the SET button to enter the CONFIG MODE sub-menu.
2. Press the SET button and the NEXT button to change the number
of coils.
a. 64 - allows the node to recognize one additional valve
driver.
b. 96 - allows the node to recognize two additional valve
drivers
c. 128 - allows the node to recognize three additional
valve drivers
d. RETURN – Takes you back to the main menu
Press the SET button to confirm your choice.
3. Press the NEXT button to select Yes or No to accept the setting
a. Selecting No will bring you back to the main CONFIG MODE
menu.
b. Selecting Yes will take you to the following
SAVE SETTINGS
menu.
Press the SET button to confirm your choice
Saved Setting Steps
4. Press the NEXT button to select either NOW or LATER.
a. Selecting NOW will cause the node to reset and apply the
new setting.
b. Selecting LATER will cause the setting to be saved in
temporary memory to allow you to make additional
parameter changes before the node is reset. However, you
must ACCEPT the saved changes before your next power
cycle otherwise they will be lost.
Press the SET button to confirm your choice.
CONFIG MODE
STANDARD
SELECT COILS
32=STANDARD
SELECT COILS
32
SELECT COILS
64
SELECT COILS
96
SELECT COILS
128
SELECT COILS
RETURN
ACCEPT
64 Y N
SAVE SETTINGS
NOW LATER
