Electrical Connections

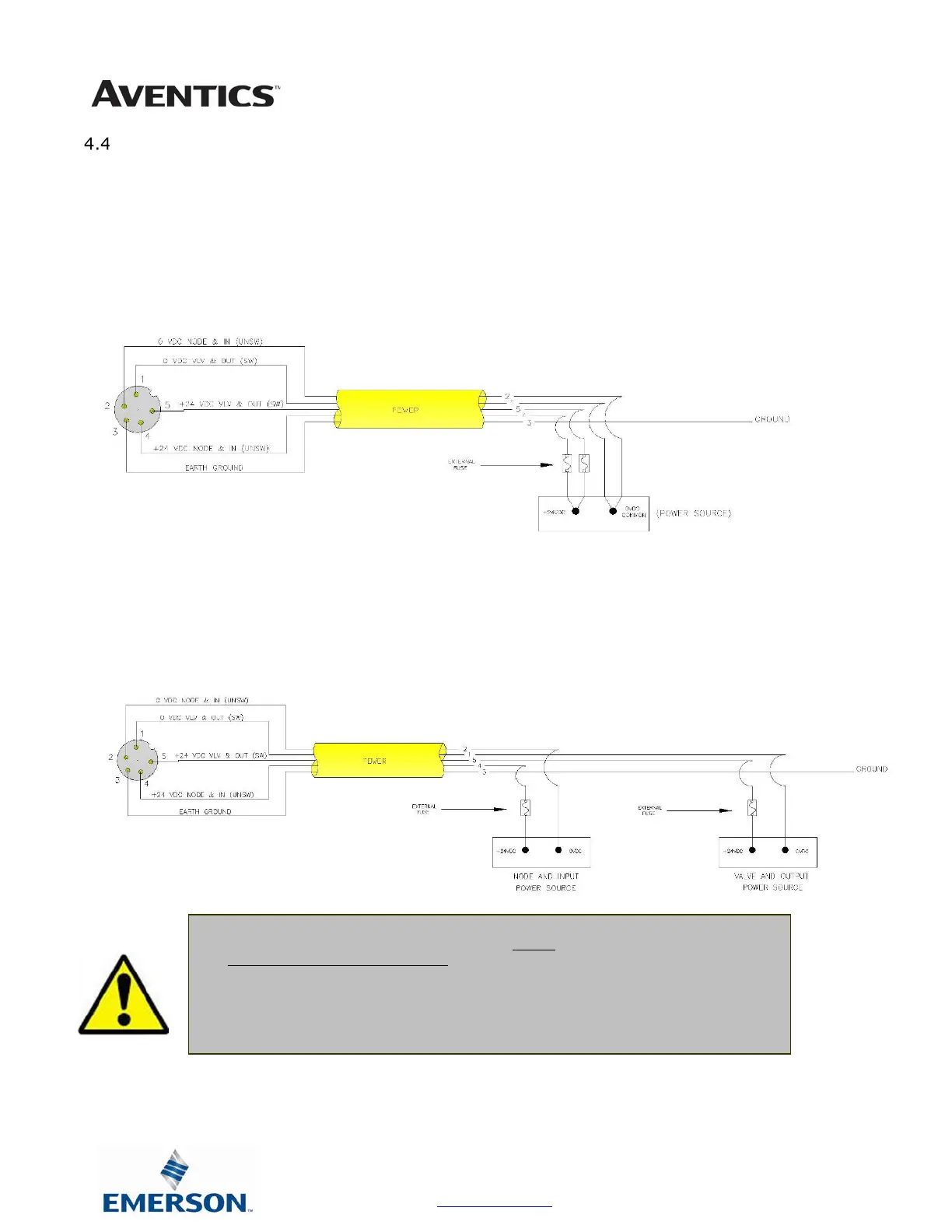

Power Connector Wiring Diagram
Power Supply Example (Non-isolated commons)
Power Supply Example (Isolated commons)
• Please see page 4-26 for external fuse sizing guide.
• When using molded connector power cables, Do Not rely on wire colors for Pin-Out.
Always use pin number references.
• Power common (0 VDC) pins 3 and 4 are isolated from each other to allow separate
(isolated) power supply connection if required. However, they can be tied together if a
single common, non-isolated, application is preferred.
