Sub-Bus Distribution Modules

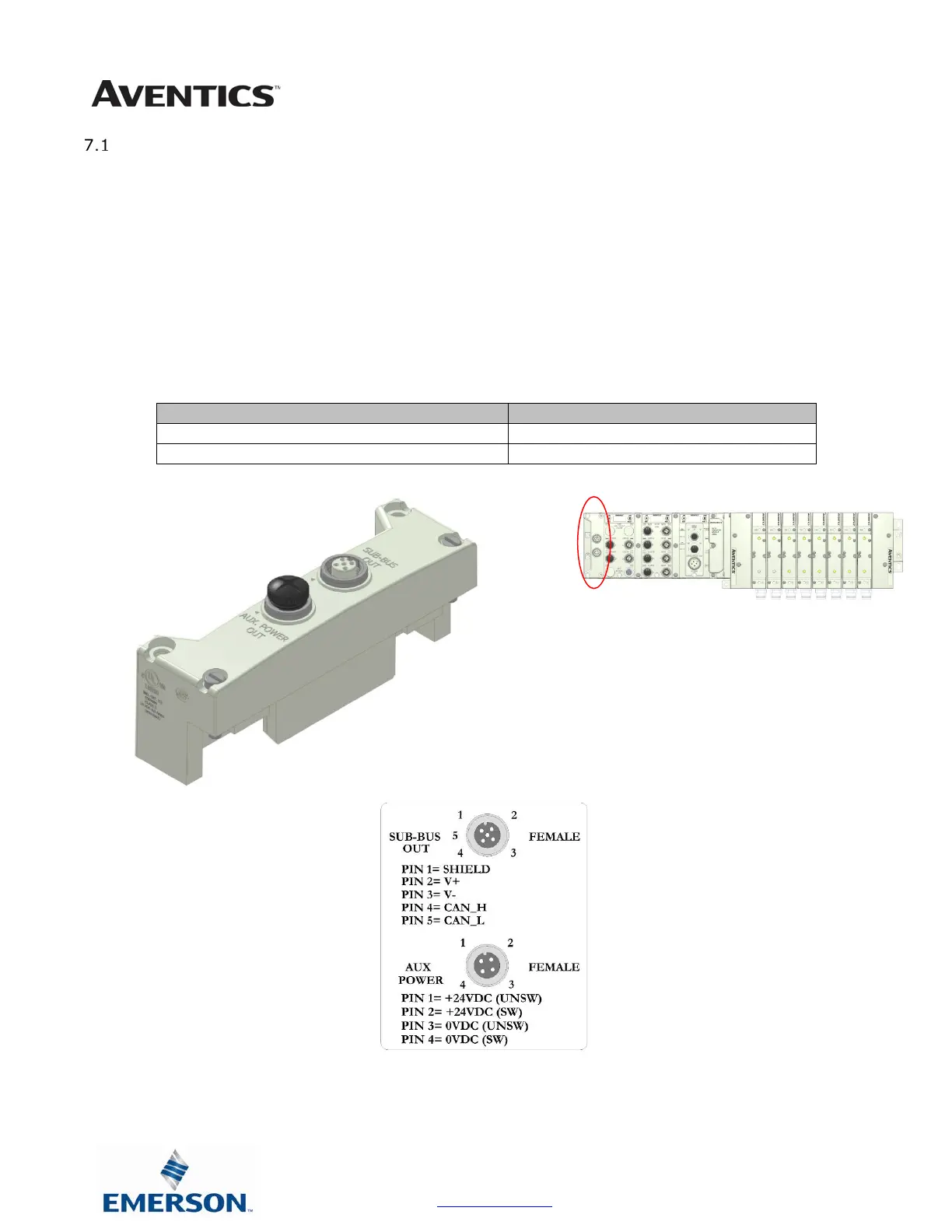

SUB-BUS OUT Module
1. Used only when distributing the Sub-Bus to another assembly is required.
2. SUB-BUS OUT - 5 pin M12 female communication connector.
o Used to distribute the Sub-Bus to the next Sub-Bus assembly.
o Carries 24 VDC power for electronics of the next module.
3. AUX. POWER OUT - 4 pin M12 female aux. power connector.
o Optional connection.
o Used as a convenience way to distribute the power connection to the next
Sub-Bus assembly.
Description Replacement Part Number
Sub-Bus OUT Module with Din Rail Mounting 240-244
Sub-Bus OUT module without Din Rail Mounting 240-183
