Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
8-64
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

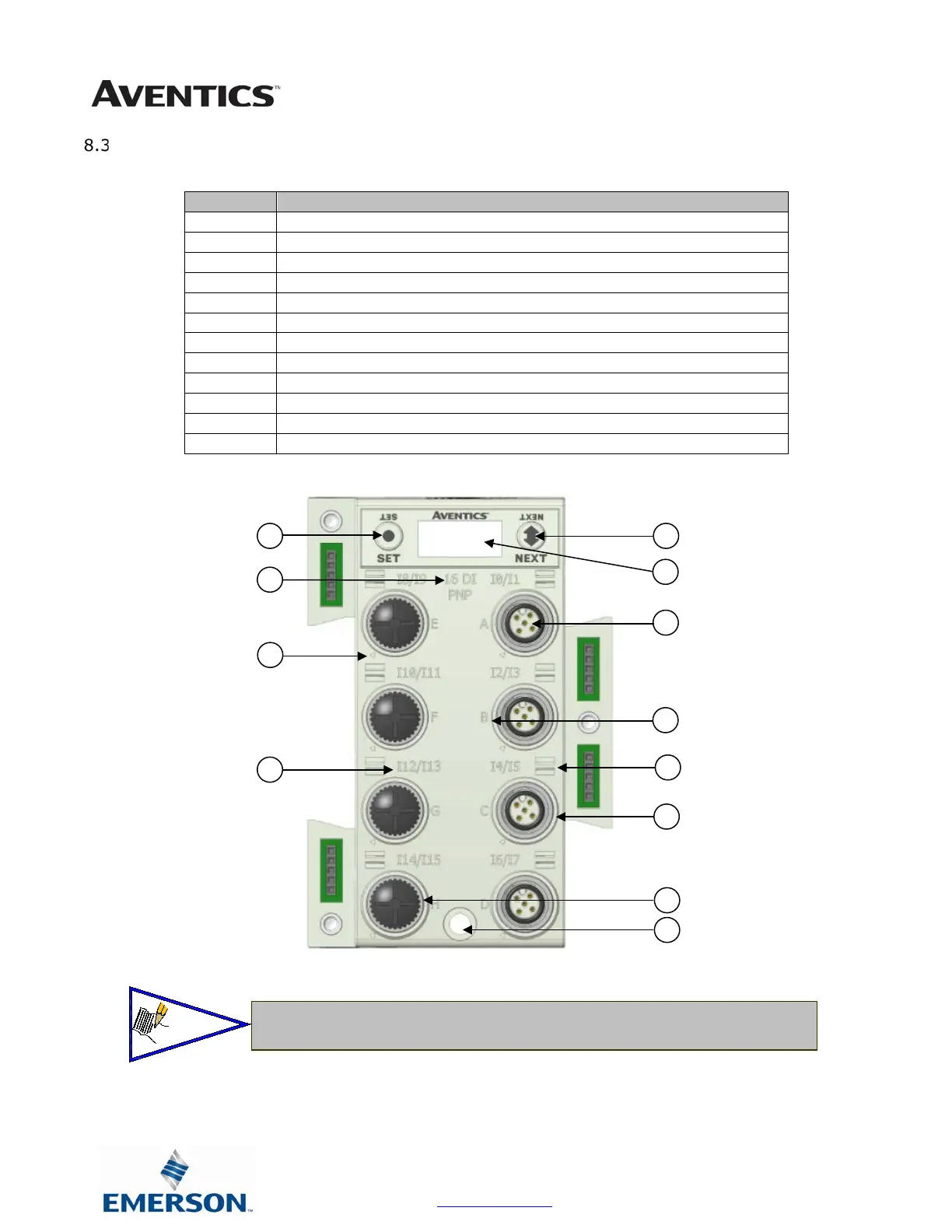

I/O Module Descriptions and Menus
Detail No.
Description
1
“Set” Button – used to navigate through user menus and set parameters
2
Module Function (I/O Type)
3
Alignment arrow for SPEEDCON connector
4
Bit Designation for I/O
5
“Next” Button – used to navigate through user menus and set parameters
6
Graphic Display
7
5 Pin M12 female I/O connector
8
Connector designation
9
Metal threads for SPEEDCON connector
10
Slot for text ID tags
11
Dust Cover
12
Mounting hole
9
4
6
8
7
3
1
2
5
12
11
10
• All dust covers must be tightened to a torque of 4-6 in. lbs. to maintain the
IP65 integrity.
NOTE!
