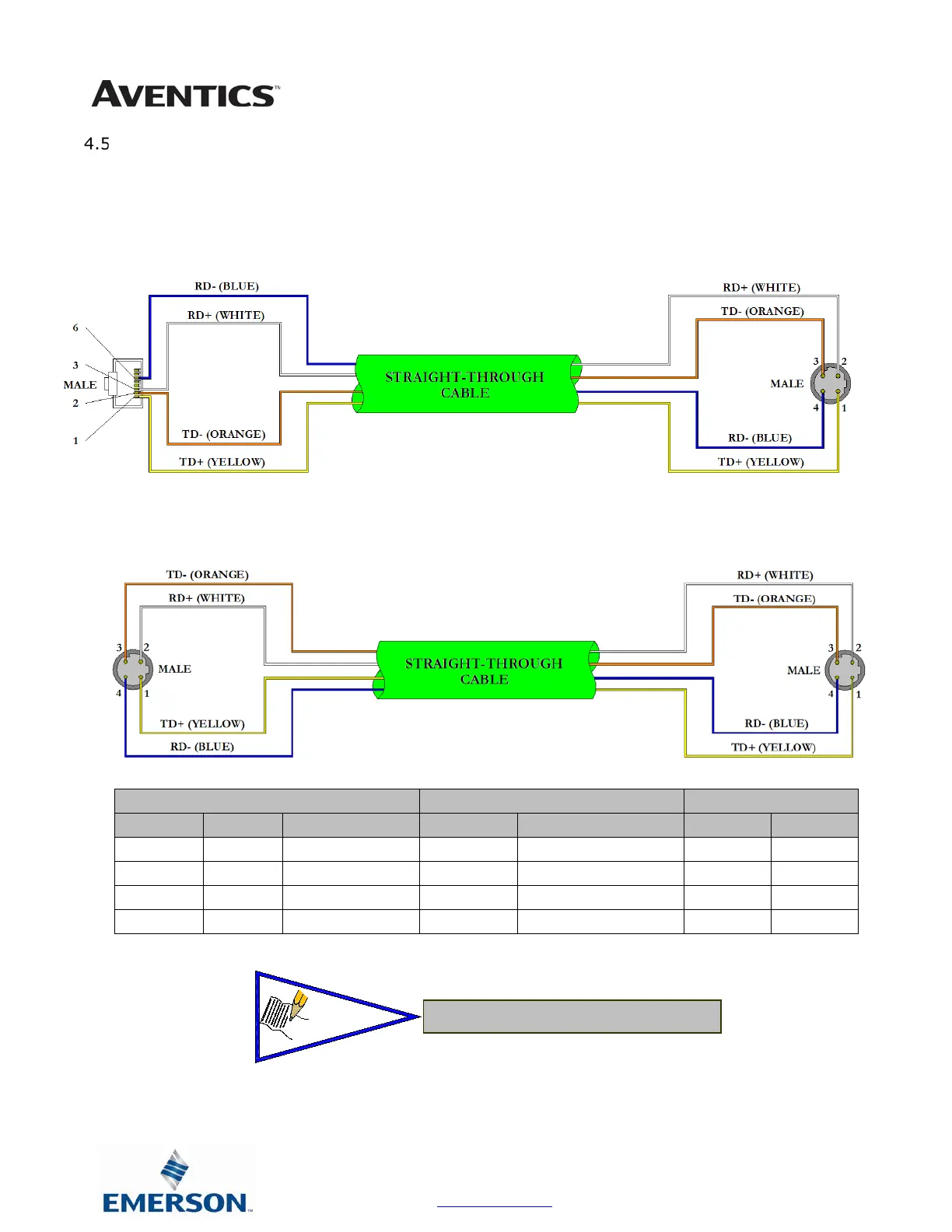

Ethernet Straight-Through Cabling Diagrams
Straight-Through Ethernet cable is used when connecting an Ethernet node to any component (router, switch,
hub, computer, etc.). Here are some basic wiring examples of Straight-Through cabling.
RJ45 to M12 D Coded Cable
M12 D Coded to M12 D Coded Cable
Description
Color
Pin Number
EtherCAT
TM
Ethernet
Star Quad
2-Pair
RJ45
M12
TD+
TX+
Transmit Data +
YELLOW
WHITE / ORANGE
1
1
TD-
TX-
Transmit Data -
ORANGE
ORANGE
2
3
RD+
RX+
Receive Data +
WHITE
WHITE / GREEN
3
2
RD-
RX-
Receive Data -
BLUE
GREEN
6
4
• RJ45 shown as T-568B standard.
