G3 Series EtherCAT
TM
Technical Manual
11-115
Subject to change without notice
www.asco.com/g3
Sub-Bus Hub Module

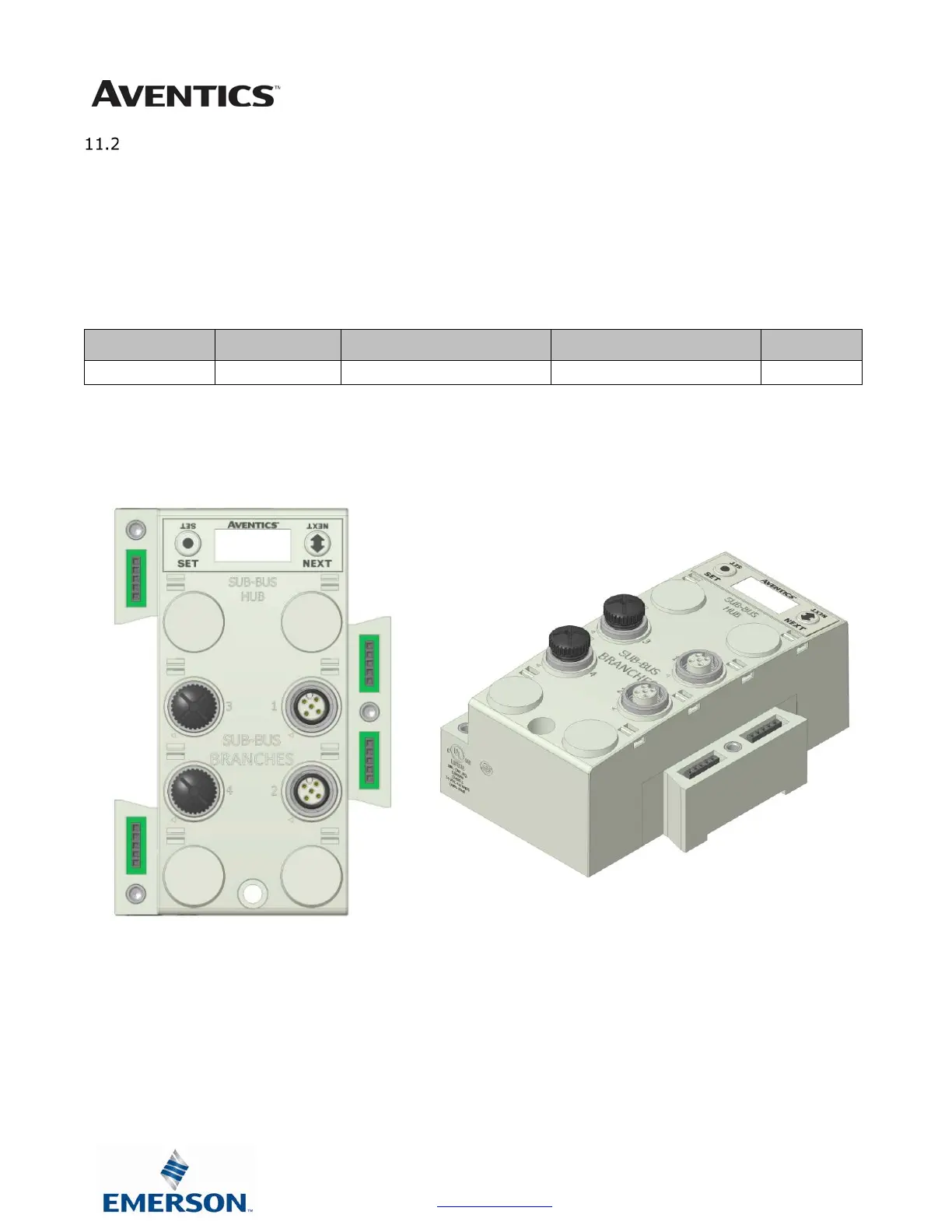

The G3 HUB module allows for branch distribution from the I/O side of the G3 System and can be
integrated into the existing G3 Series Sub-Bus configuration. Auto Addressing allows for trouble free
set up and configuration. Input, Output, as well as Valve manifolds can be attached to the available
four Branches on a HUB module. Each G3 System can support up to two HUB modules, allowing for
maximum flexibility. The HUB module is transparent to the I/O side of the G3 and does not reserve
one of the potential sixteen positions.
Module Type Diagnostics Input Size / Output Size Branches
240-326 HUB Sub-Bus Short Circuit 0 / 0 – See Note 4
