G3 Series EtherCAT
TM
Technical Manual
12-123
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

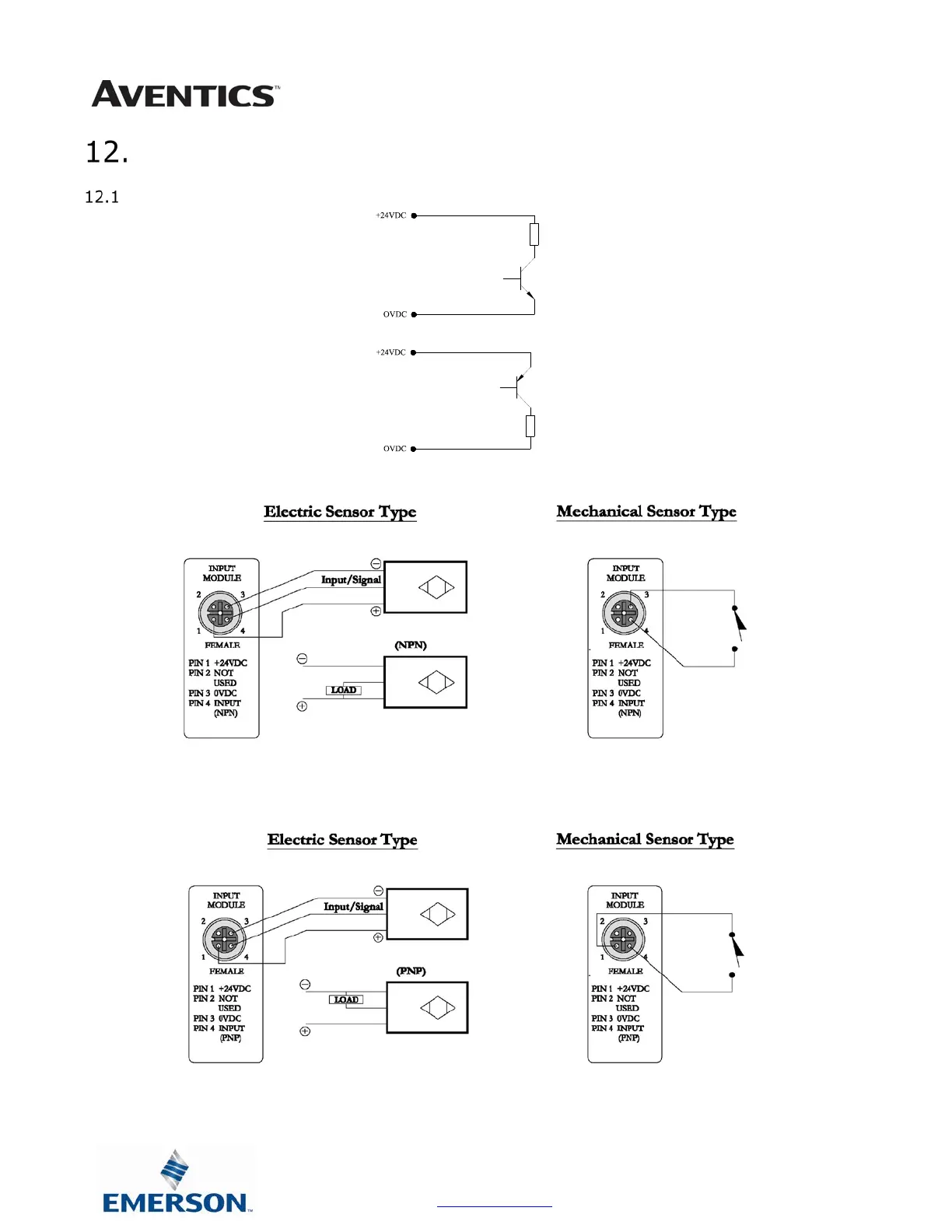

I/O Module(s) Wiring Diagrams
12.1 NPN/PNP Definitions
NPN Descriptions
• Sinking
• Switching Negative
• Positive Common
PNP Descriptions
• Sourcing
• Switching Positive
• Negative Common
NPN (Sinking) Input Connection
PNP (Sourcing) Input Connection
LOAD
LOAD
