Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
9-90
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

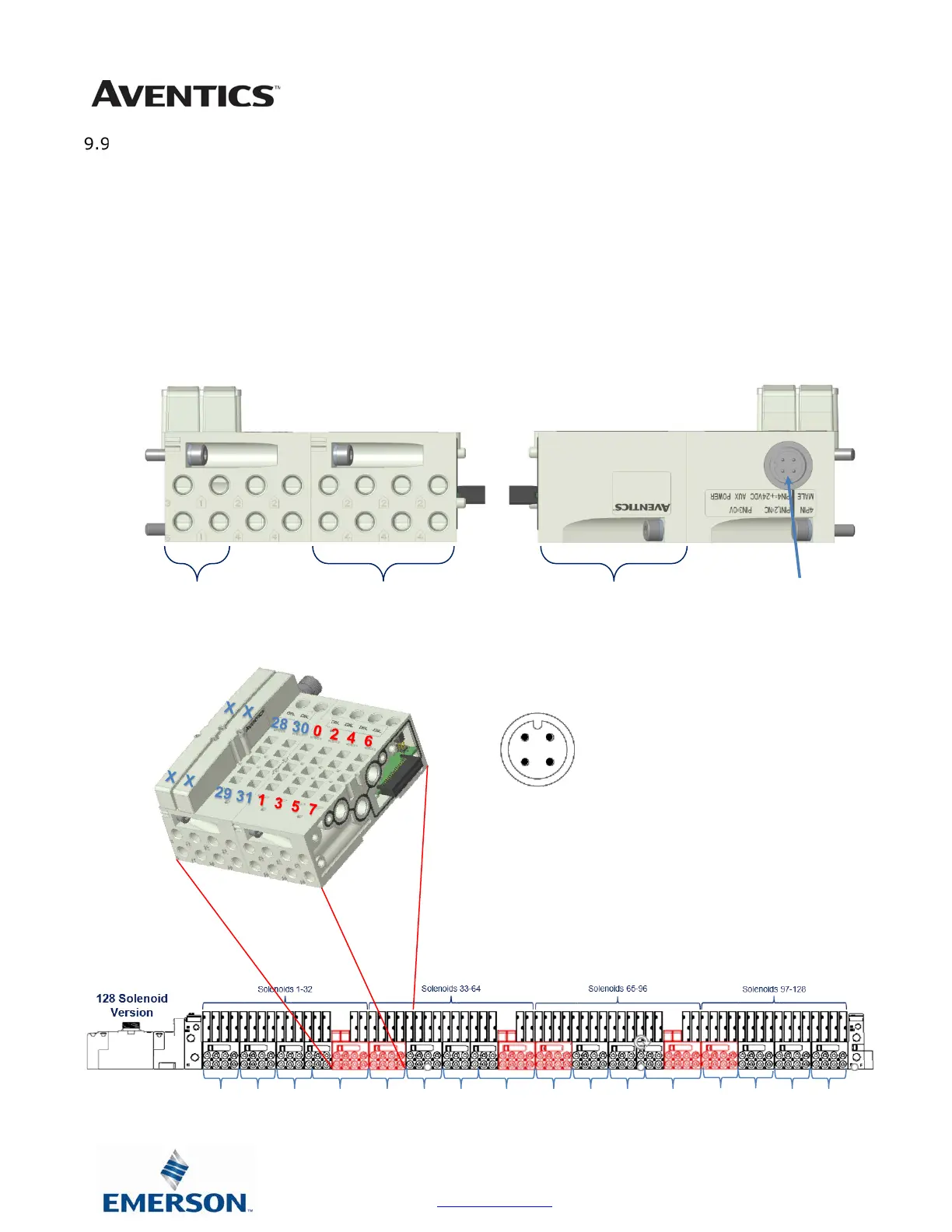

501 Series, up to 128 solenoid coils
501 series, 8 station manifold with integrated 32 coil valve driver, auxiliary power connector and mid-station supply and
exhaust ports
• To be used with 501 series valves on valve manifold assemblies with 33-128 coils.
• Up to 3 of these valve drivers can be used on each assembly
• Required to use on manifold assemblies larger than 64 coils, this manifold block has a M12 power connector to
supplement the main power connection on the G3 node and two additional port 1 supply and port 3/5 exhaust
ports.
• Aux power is required to be connected to the aux power connector provided on the extended coil valve driver.
Pin #1 = No Connection
Pin #2 = No Connection
Pin #3 = 0 VDC
Pin #4 = +24 VDC
1
3
4
2
Byte X
X+1
X+2
X+3
X+4
X+5
X+6
X+7
X+8
X+9
X+10
X+11
X+12
X+13
X+14
X+15
Mid-Station Supply/Exhaust
Auxiliary Power
Integrated 32 coil
valve driver
Integrated 32 coil
valve driver
