G3 Series EtherCAT
TM
Technical Manual
5-32
Subject to change without notice
www.asco.com/g3
Station Alias Sub-Menu

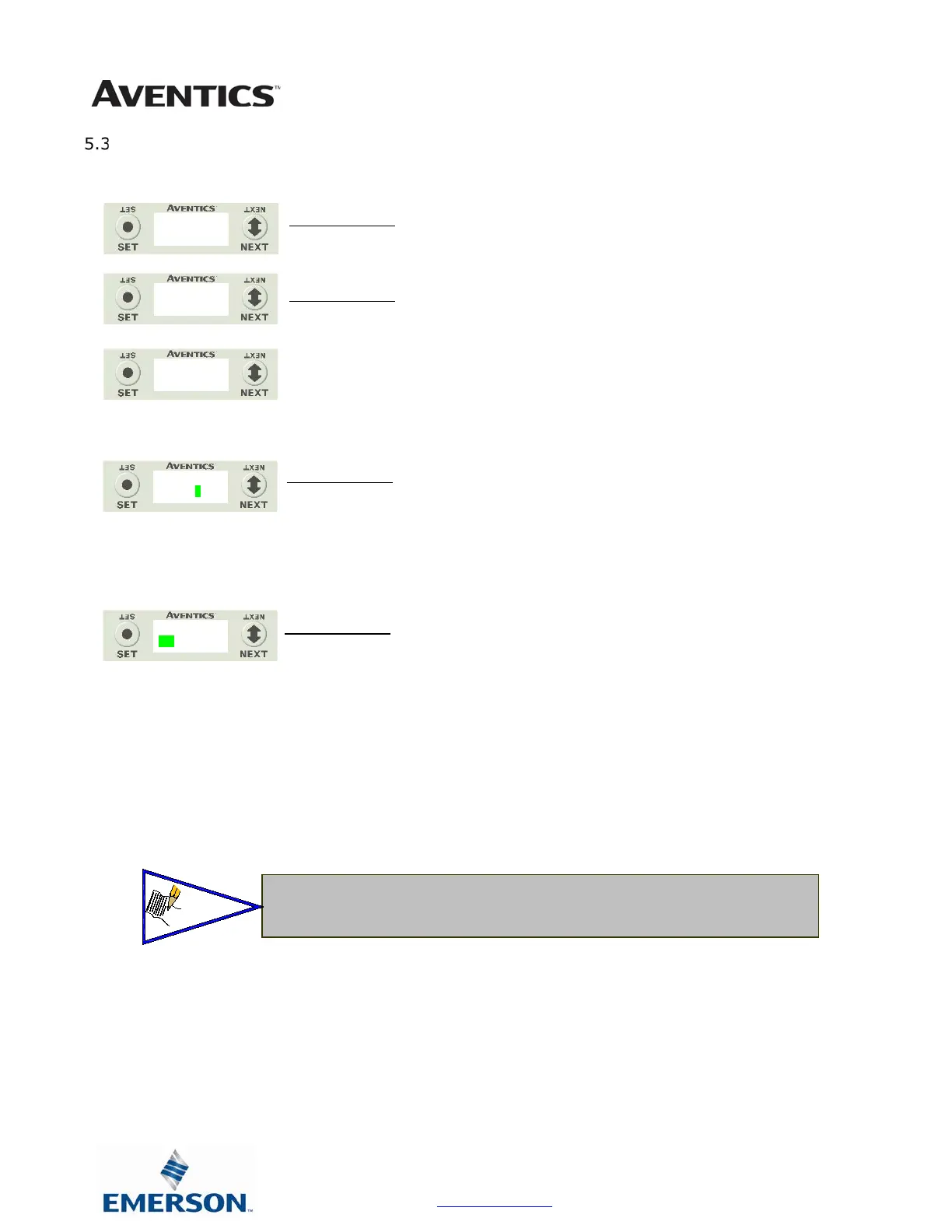

Steps to Set Station Alias
1. Press the SET button to enter the “Station Alias” sub-menu.
2. Press the NEXT button to scroll through the choices for the
tens digit of the node address.
Press the SET button to select the tens digit and move into
the ones digit selection.
3. Press the NEXT button to scroll through the choices for the
ones digit of the node address.
Press the SET button to select the ones digit.
4. Press the NEXT button to select Yes or No to accept the
address shown on the display,
a. Selecting No will bring you back to the main
Address menu.
b. Selecting Yes will take you to the following
SAVE
SETTINGS menu.
Press the SET button to confirm your choice.
5. Press the NEXT button to select either NOW or LATER.
a. Selecting NOW will cause the node to reset and
apply the new setting.
b. Selecting LATER will cause the new Address to be
saved in temporary memory and allow you to make
additional parameter changes before the node is
reset. However, you must ACCEPT the saved
changes before your next power cycle otherwise
they will be lost.
Press the SET button to confirm your choice.
1
12
12
NOW LATER
Only addresses 1- 192 are valid.
• Address 0 is not valid.
INT Y N
