Emerson PACSystems RSTi-EP User Manual

User Manual Section 4
GFK-2958L May 2021
Detailed Descriptions of the Fieldbus Network Adapters 98

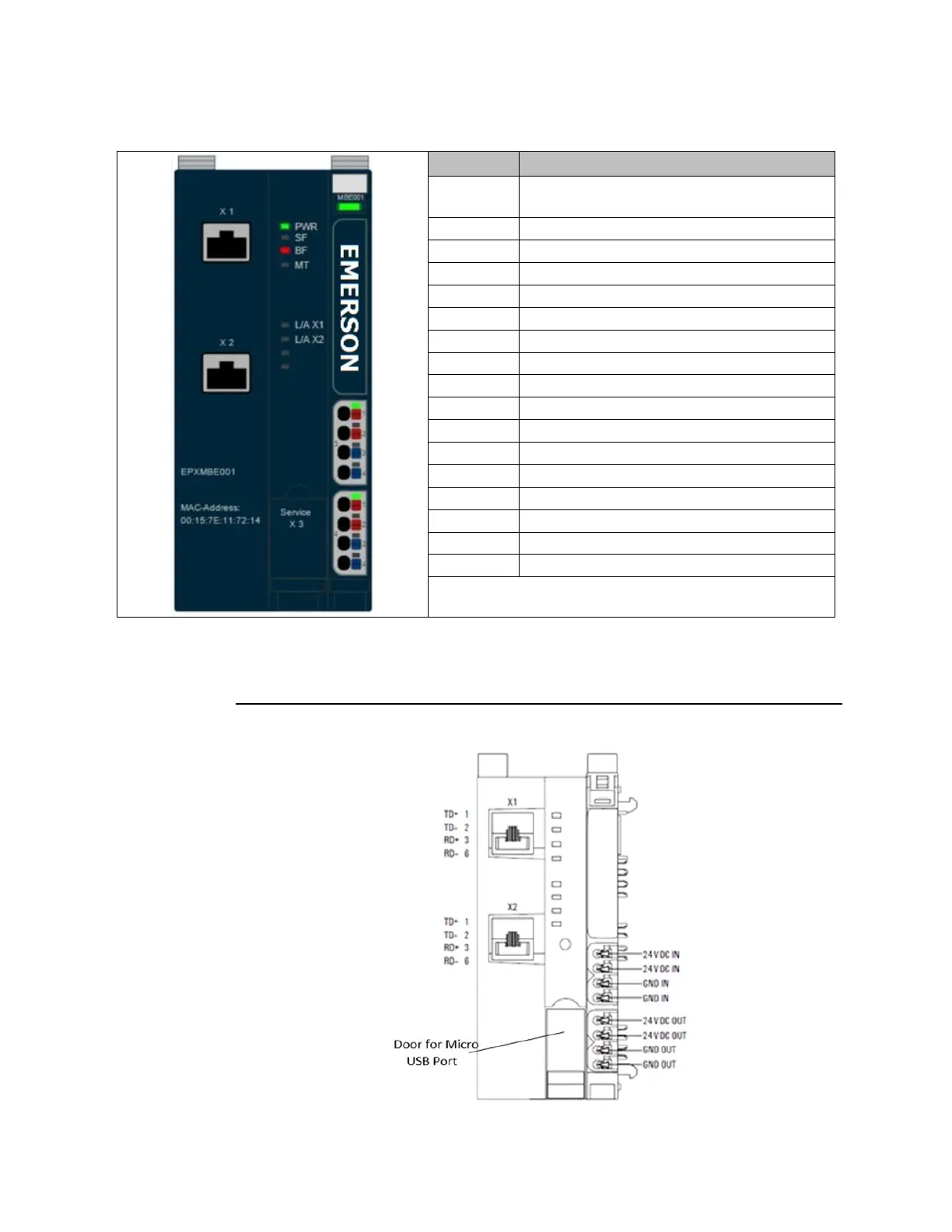

LED Indicators
LED
EPXMBE001/EPXMBE101
Power Supply
Green: Supply voltage > 18Vdc
Red: At least one current path < 18 V
3.1
Green: Input current path supply voltage > 18Vdc
3.2
Red: Input current path supply voltage < 18Vdc
3.3
3.4
Red: Internal fuse defective
4.1
Green: Output current path supply voltage > 18Vdc
4.2
Red: Output current path supply voltage < 18Vdc
4.3
4.4
Red: Internal fuse defective
For error messages, refer to Section 12, LED Indicators and Troubleshooting.
4.4.2 Connection Diagrams
Figure 43: Connection Diagram EPXMBE001/EPXMBE101
