Emerson PACSystems RSTi-EP User Manual

User Manual Section 5
GFK-2958L May 2021
Detailed Description of I/O Modules 183
Byte
Format
Name
Remark
OB0
OX0.0
OP-mode DO0
0: Sinking, 1: Sourcing
OX0.1
OP-mode DO1
0: Sinking, 1: Sourcing
OX0.2
OP-mode DO2
0: Sinking, 1: Sourcing
OX0.3
OP-mode DO3
0: Sinking, 1: Sourcing
OX0.4
DO0
OX0.5
DO1
OX0.6
DO2
OX0.7
DO3

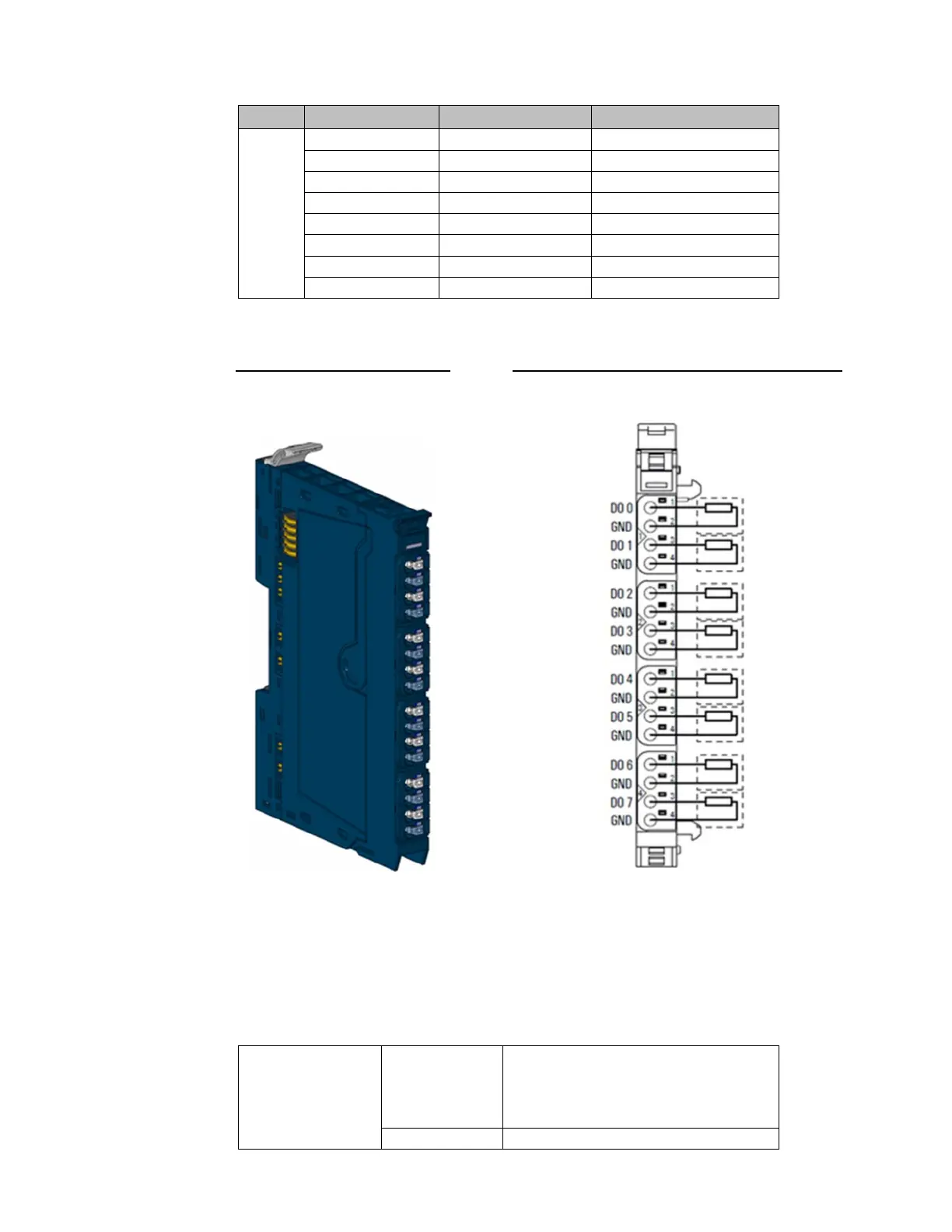

5.11 Digital Output Module EP-2218
Figure 90: Digital Output
Module EP-2218
Figure 91: Connection Diagram EP-2218
The EP-2218 digital output module can control up to 8 discrete outputs, each with a
maximum of 0.5A. Discrete outputs can be connected to each connector in a 2-wire
connection. A status LED is assigned to each channel. The outputs are supplied with power
from the output current path (IOUT).
5.11.1 LED Indicators EP-2218
Module Status
Green: Communication over the system
bus
Red: Module System Fault or Diagnostic
Fault
1.1
Yellow: Output 0 active
