User Manual Section 6
GFK-2958L May 2021
Installation 408

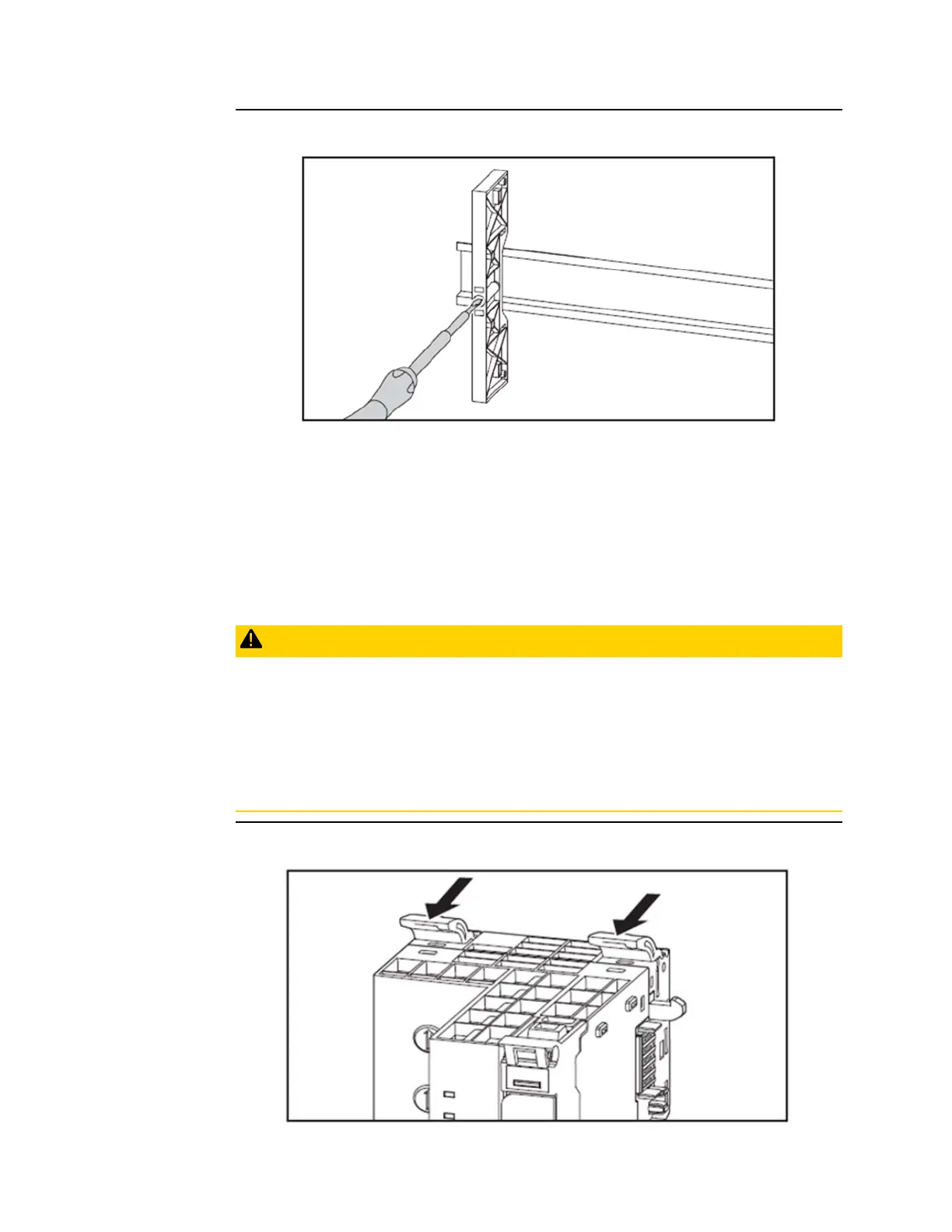

Figure 240: Attaching the End Bracket
Note: When installing the RSTi-EP products, make sure that you listen for the double click:
When snapping onto the DIN rail
When pushing together with the neighboring module.
The modules are in the correct position and the connection is made only when both
snapping noises are heard.
CAUTION
•
Improper installation may prevent grounding.
•
The grounding of the modules and network adapters is only ensured if the FE spring at
the bottom is in contact with the DIN rail.
•
During installation, make sure that both release levers on the bus network adapter and
all release levers on the modules are closed before snapping onto the DIN rail.
Figure 241: Release Lever Closed
