User Manual Section 8
GFK-2958L May 2021
Commissioning 438

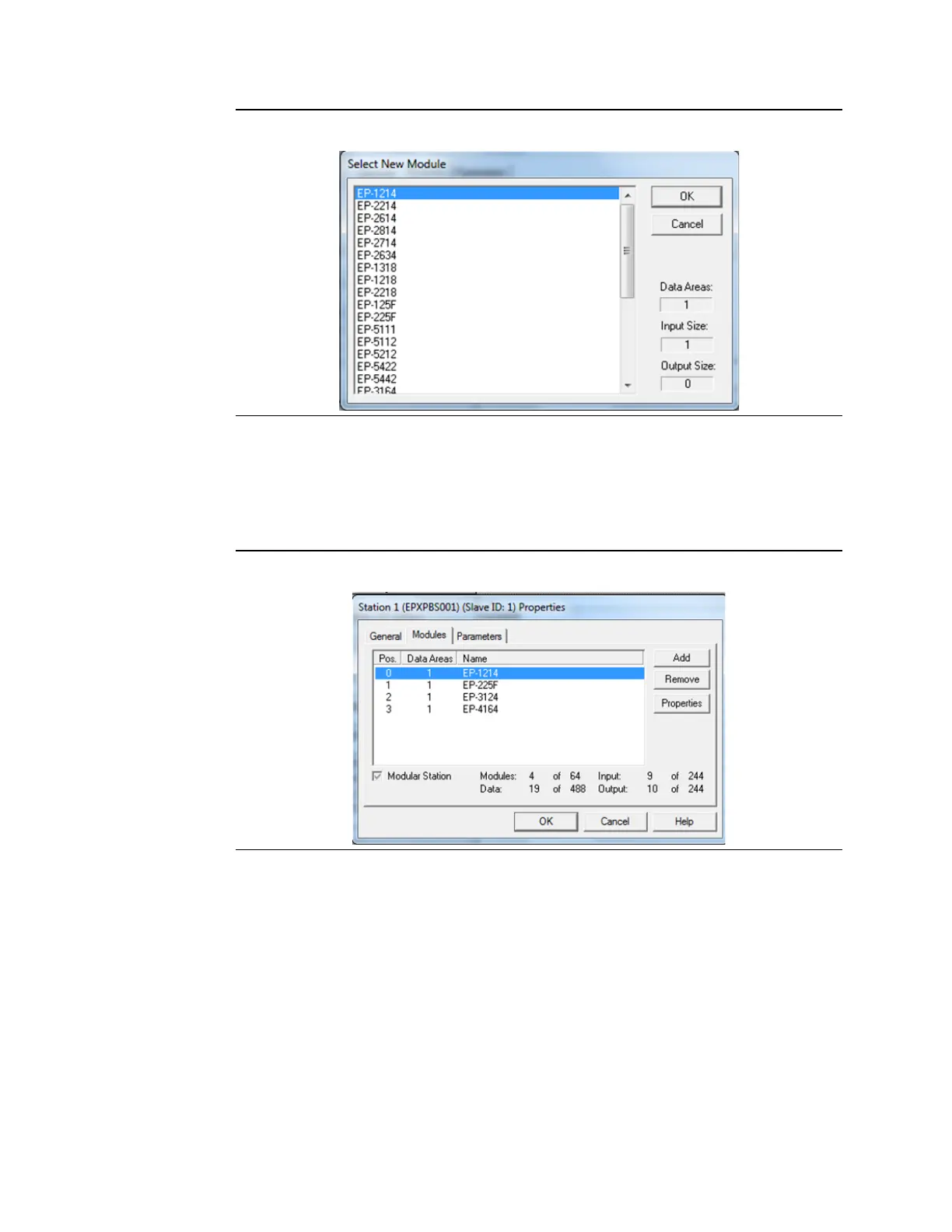

Figure 281
Note: The Select New Module list of modules is determined by the .GSD for the slave type.
Each type of slave may have a different list of modules.
6.
Select a module and click OK. The module is added to the Modules list in the Slave
Properties dialog box. Add additional modules as required for your system. The
following figure shows the Modules tab after several modules have been added.
Figure 282
To change the order (position) of a module, select it and click Properties. The Module
Properties dialog box displays. Enter the numerical value of the new position the module is
to have. The position numbering starts at 0.
The other information in this dialog box is generated by the GSD file associated with the
Slave module.
Note: The Data field corresponds to the module’s configuration identifier as defined in the
PROFIBUS specification.
