Note -
The rack mount kit contains two types of cable support: Type-1 and Type-2. To
distinguish the Type-2 cable support, see Figure 3-62. The Type-2 cable support is an
integrated unit consisting of the parts indicated by numbers 2 to 5 in Figure 3-61. Steps 6 and
10 in the
mounting procedure vary depending on the shape of the cable support. Attach the
support according to the corresponding steps.
Note -
The rack mount kit contains two types of rails: Type-1 and Type-2. To distinguish the
Type-2 rail, see Figure 3-63. The mounting procedure varies depending on the shape of the
rail. The text describes corresponding procedures, so attach the rail according to the relevant
procedure.

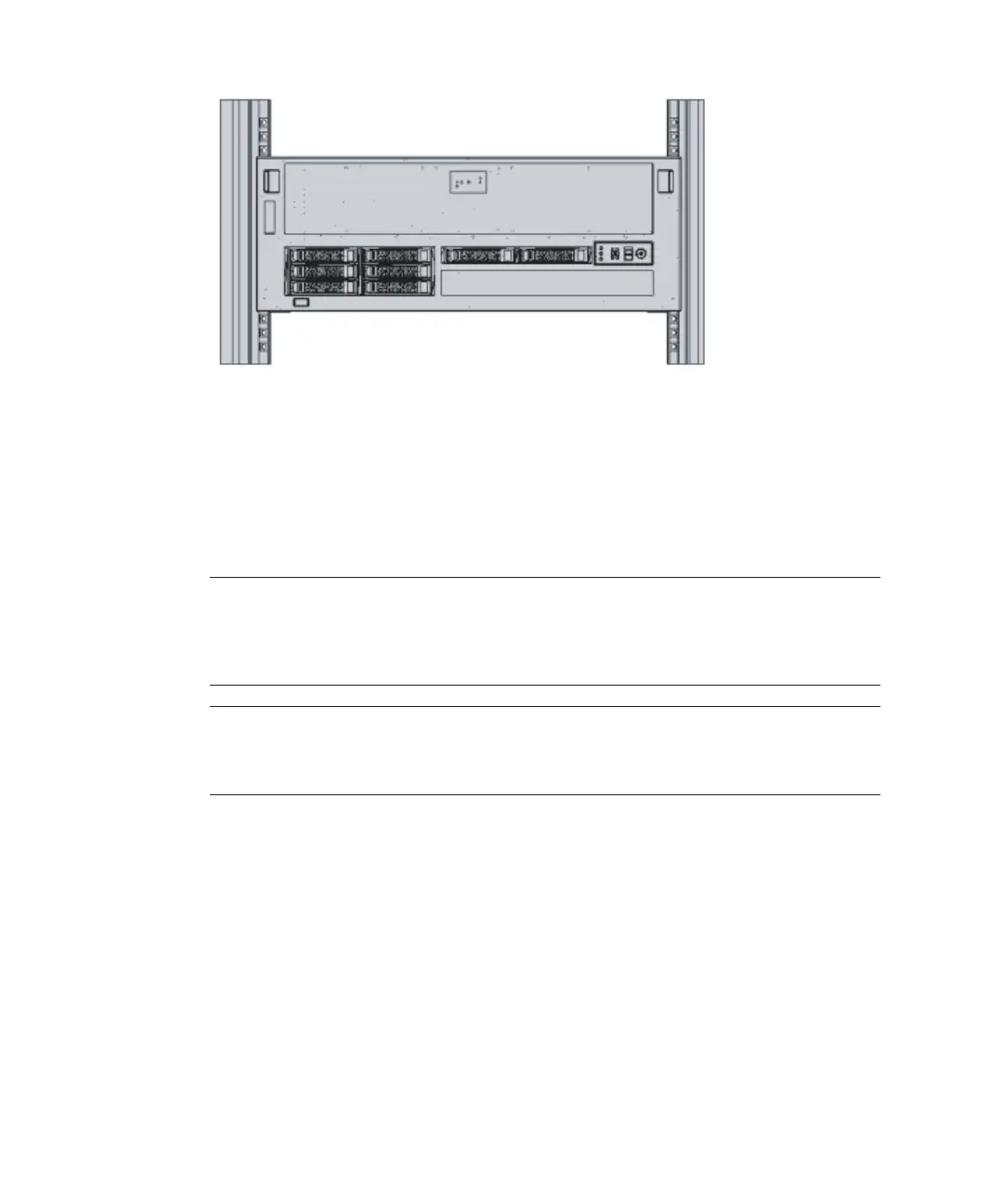

Figure 3-60
Completed SPARC M10-4/SPARC M10-4S configuration
3.4.3 Mounting the PCI expansion unit in a rack
1.
Confirm that the rack mount kit supplied with the PCI expansion unit is
complete.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015120
