4.2.2 Connecting
XSCF
cables
There
are
two
types
of
XSCF
cables:
DUAL
cable
and
XSCF
BB
control
cable.
Connect
XSCF
cables
according
to
the
following
procedure.
Connect
the
cables
such
that
the
port
indications
on
each
chassis
match
the
labels
on
the
cables.
1.
Connect
the
XSCF
DUAL
control
cable
between
the
XSCF
of
BB#00
and
the
XSCF
of
BB#01.
a.
Connect
the
XSCF
DUAL
cable
from
the
BB#00
DUAL
port
to
the
BB#01
DUAL
port.
The
DUAL
ports
are
marked
DUAL.
2.
For
the
2BB
configuration,
connect
an
XSCF
BB
control
cable
between
the
XSCF
of
BB#00
and
the
XSCF
of
BB#01.
a.
Connect
the
cable
from
port
0
of
BB#00
to
port
0
of
BB#01.
3.
For
the
3BB
configuration,
connect
XSCF
cables
to
XSCF
ports
of
BB#02,
in
addition
to
the
connection
of
step
2.
a.
Connect
the
cable
from
port
1
of
BB#00
to
port
0
of
BB#02.
b.
Connect
the
cable
from
port
1
of
BB#01
to
port
1
of
BB#02.
4.
For
the
4BB
configuration,
connect
XSCF
cables
to
XSCF
ports
of
BB#03,
in
addition
to
the
connections
of
steps
2
and
3.
a.
Connect
the
cable
from
port
2
of
BB#00
to
port
0
of
BB#03.
b.
Connect
the
cable
from
port
2
of
BB#01
to
port
1
of
BB#03.

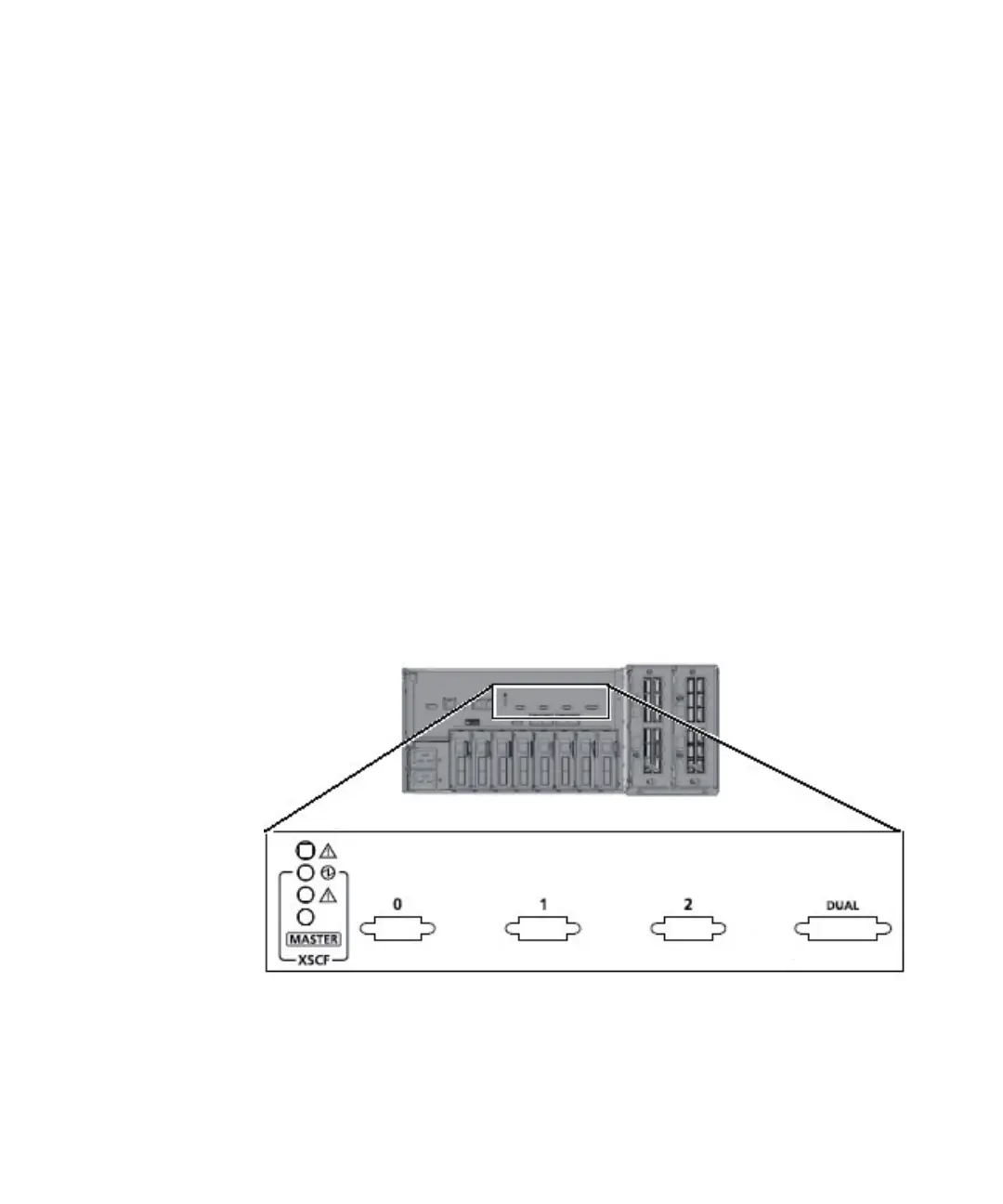

Figure
4-5
　　
XSCF
port
location
diagram
(chassis
rear)
Chapter
4
　
Configuring
Building
Block
Connections 147
