Fujitsu M10 User Manual

350(13.8)
350(13.8)
451(17.8)
451(17.8)
577.2(22.7)
577.2(22.7)
95
(3.7)
95
(3.7)
Front of the device
Level foot
Caster

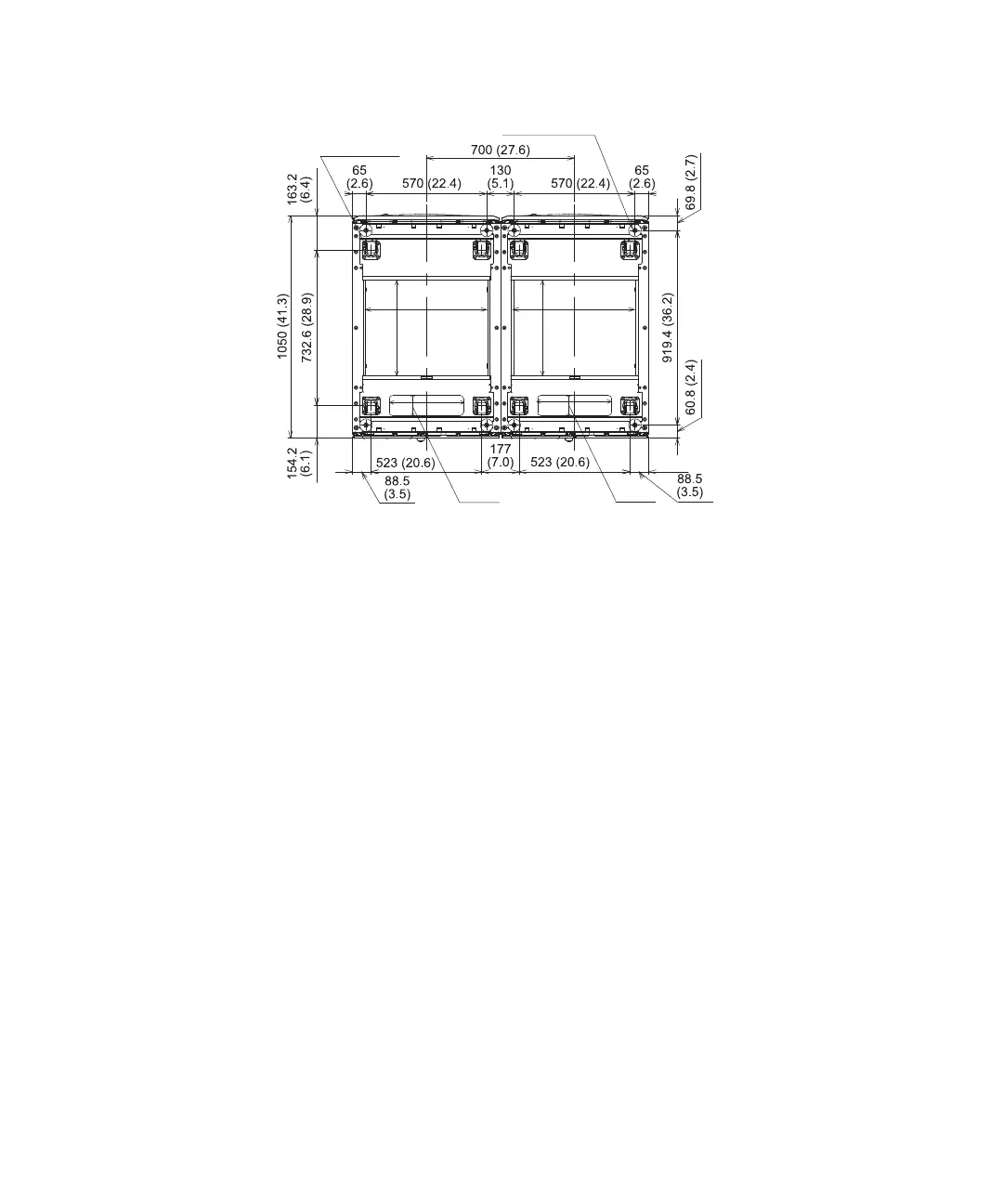

Figure 2-12
Bottom view of an expansion rack, Unit: mm (in.)
2.4.6 Points of concern when bringing in an expansion
rack
This section describes the points of concern when an expansion rack or the server
product is brought in.
■
Before bringing in an expansion rack, confirm that the access route is wide enough
for the rack package (Eco package: W 700 x D 1,050 x H 2,000 mm, ordinary
package: W 1,260 x D 1,264 x H 2,160 mm).
The expansion rack is shipped with both the SPARC M10-4S and
crossbar boxes
mounted in the rack. If it is difficult to bring in the rack while still packed, unpack
it as needed to bring it in.
■
If the access route has steps, a ramp may be necessary.
Chapter 2 Planning and Preparing for System Installation 35
