procedure. This work is not required for Eco packages.
a. Place the rack package on a flat surface. The package shows the work area
requirements. Referring to the description, select a work area.
b. Use scissors or another tool to cut the polyester banding securing the package
parts together. When cut,
the polyester banding may spring up dangerously.
Working from above, cut the polyester banding while pushing against it with
one hand.
c. Remove the package parts.
d. Secure the ramps at the predefined locations. The package shows the
predefined locations. Secure the ramps firmly with the four supplied U-shaped
brackets. If they
are not adequately secured, the rack becomes unstable when
being removed from the palette and thereby a danger.
e. Remove the plastic bag covering the rack.
f. Remove the four brackets securing the rack to the palette by using a wrench or
box wrench (nominal size 13 or 17).
g. Remove the
rack from the palette. Perform this work with three or more
people. Do not stand in the path that the rack moves along. An unstable rack is
dangerous.

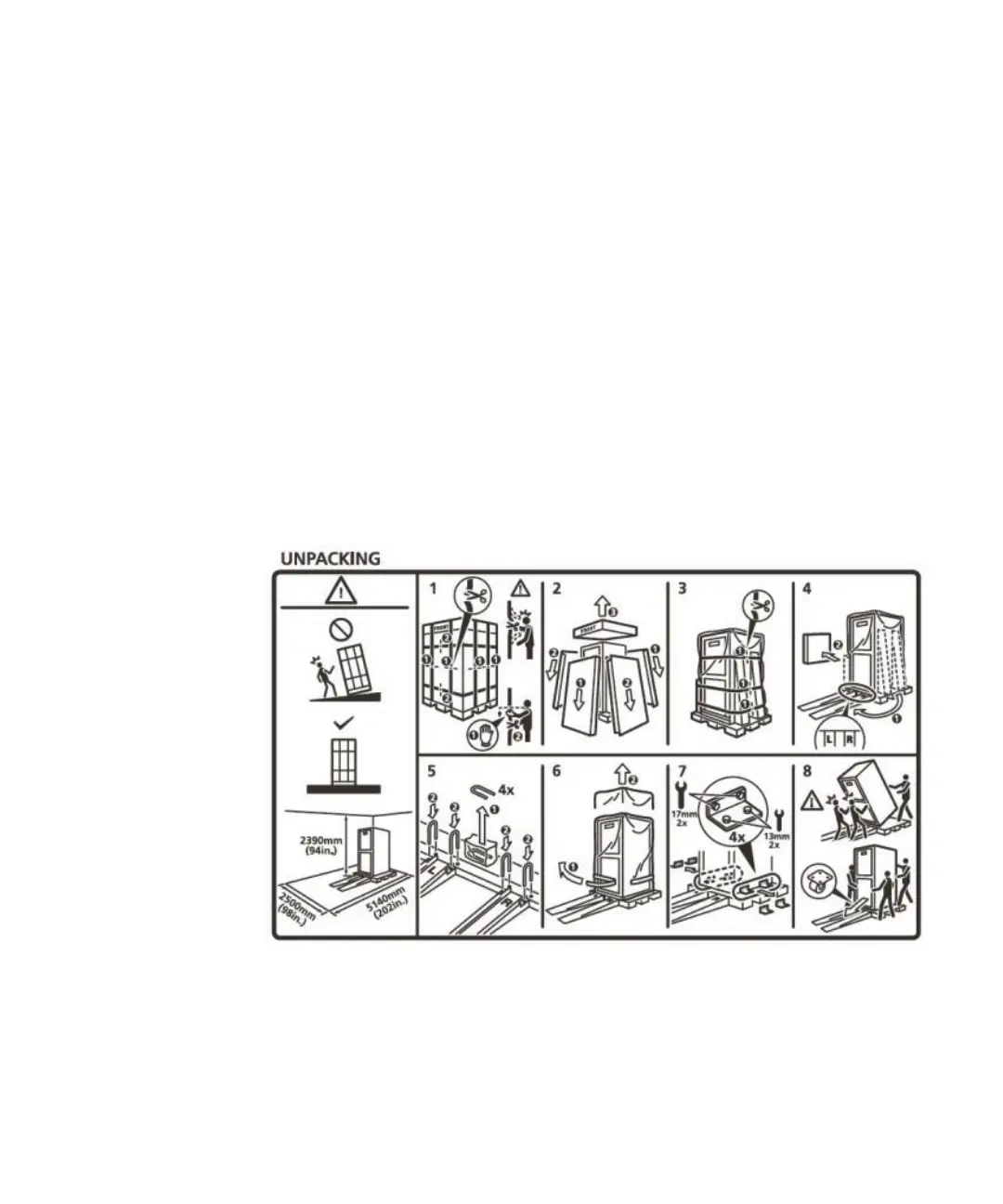

Figure 2-14
Procedure for unpacking an ordinary package
2.4.7 Method of fixing an expansion rack in place
To prevent the rack from toppling over in an earthquake, fix it in place appropriately.
For details, see "3.3.2 Securing the rack."
Chapter 2 Planning and Preparing for System Installation 37
