A
Note
-
Do
not
connect
to
an
outlet
at
this
point.
Note
-
The
two
link
cables
are
the
same.
The
labels
on
both
ends
of
each
cable
have
the
same
indications.
When
laying
the
cables,
check
their
connections
to
confirm
that
the
ends
of
the
cables
connected
to
the
link
card
and
link
board
are
at
the
same
locations
as
shown
on
the
5.
Connect
the
supplied
power
cords
to
the
power
supply
units
(A
in
Figure
5-6).
Secure
the
power
cords
with
a
power
clamp.

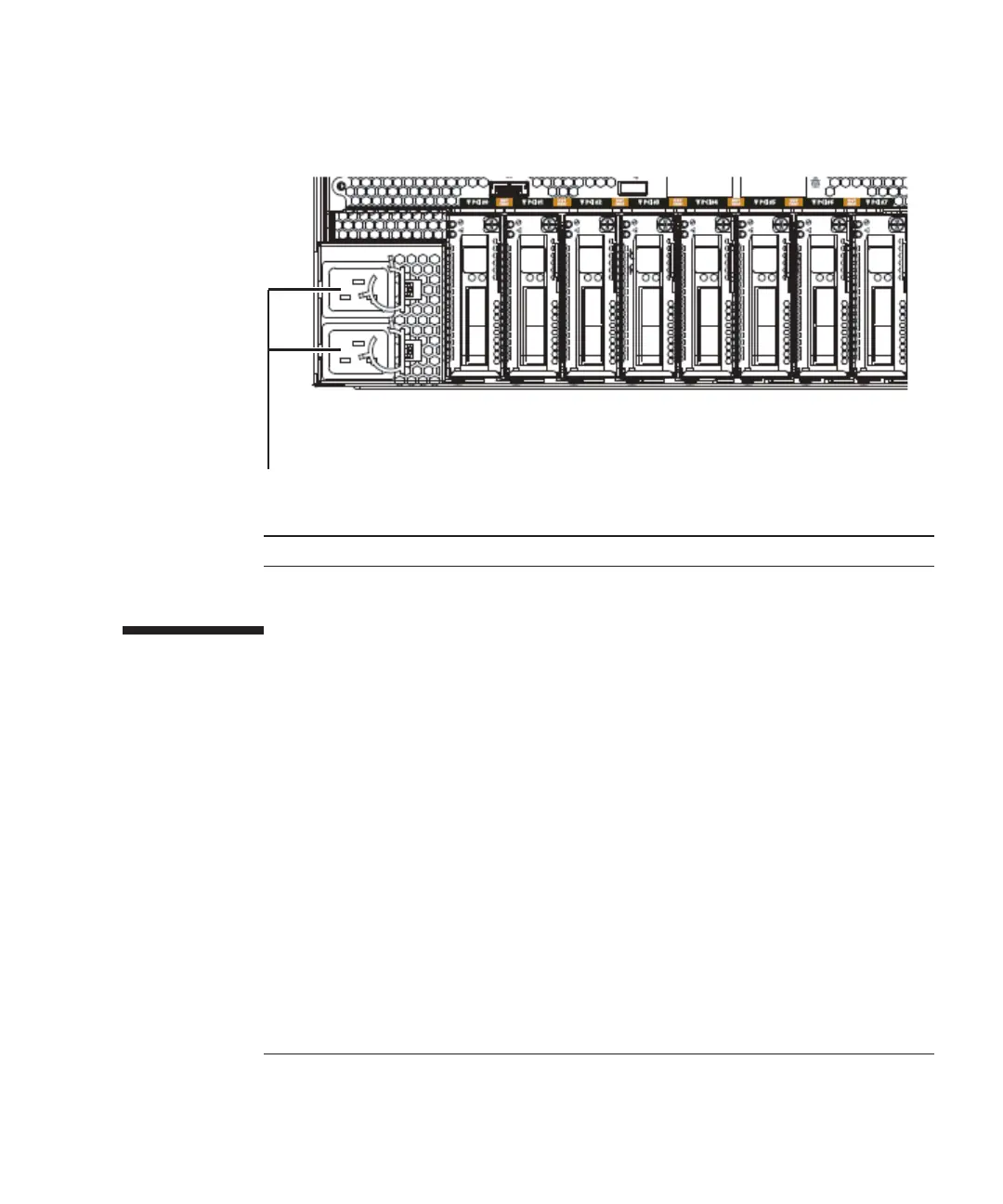

Figure
5-6
　　
Power
supply
unit
locations
5.3 Connecting
Cables
to
the
PCI
Expansion
Unit
This
section
describes
the
procedure
for
connecting
the
management
cable,
link
cables,
and
power
cords
to
the
PCI
expansion
unit.
1.
Connect
the
management
cable.
Connect
the
link
board
of
the
PCI
expansion
unit
and
the
link
card
of
the
chassis
by
using
the
management
cable.
(See
A
in
Figure
5-8,
A
in
Figure
5-9,
and
A
in
Figure
5-10.)
2.
Connect
link
cables.
Connect
the
cables
such
that
the
port
indications
on
the
link
card
and
link
board
match
the
labels
on
the
cables.
Each
port
on
the
link
card
and
link
board
is
color-coded
and
numbered.
Connect
the
port
to
the
corresponding
port
of
the
same
color
and
number.
Chapter
5
　
Connecting
Cables
to
the
Chassis 167
