4.3.2 Connecting crossbar cables
Cables that pass between racks are secured to expansion rack 2. Connect cables to
their respective ports on expansion rack 1 through the empty space in the connecting
part of the racks. Connect the cables such that the port indications on the chassis
correspond to the labels on the cables.
There
are two ports with the same port number. Each port on the chassis is
color-coded. Connect the port to the corresponding port of the same color.
For the cable routes, see Figure 4-15.
When laying the cables, use the supplied hook-and-loop fastener strips to bundle
them as appropriate.
1.
Unpack the cables
that will pass between the racks.
The cables are tied to a rack column with their connectors wrapped in a bag.
a. Remove the cable connectors from the rack column.
b. Unwrap the cable connectors.

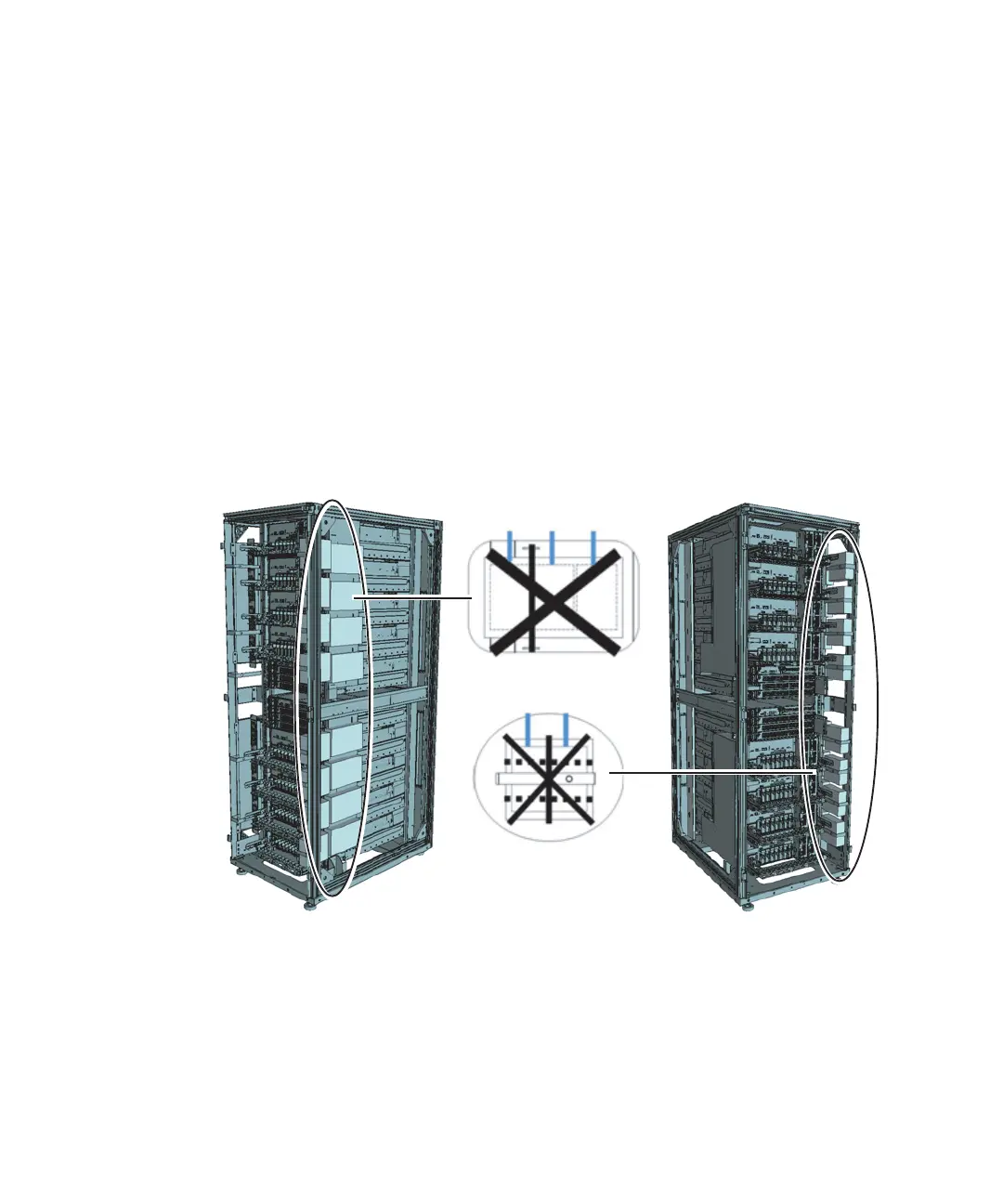

Figure 4-13
Cable storage locations in expansion rack 2
2.
Pass the crossbar cables (optical) unwrapped in step 1
between the upper
and lower PDUs on the connecting part of the racks.
Pass the crossbar cables connecting BB#00 to BB#03 and XBU#80 through the
lower side of the connecting part (A in Figure 4-14).
Pass the crossbar cables connecting BB#04 to BB#07 and XBU#81 through the
upper side of the
connecting part (B in Figure 4-14).
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015154
