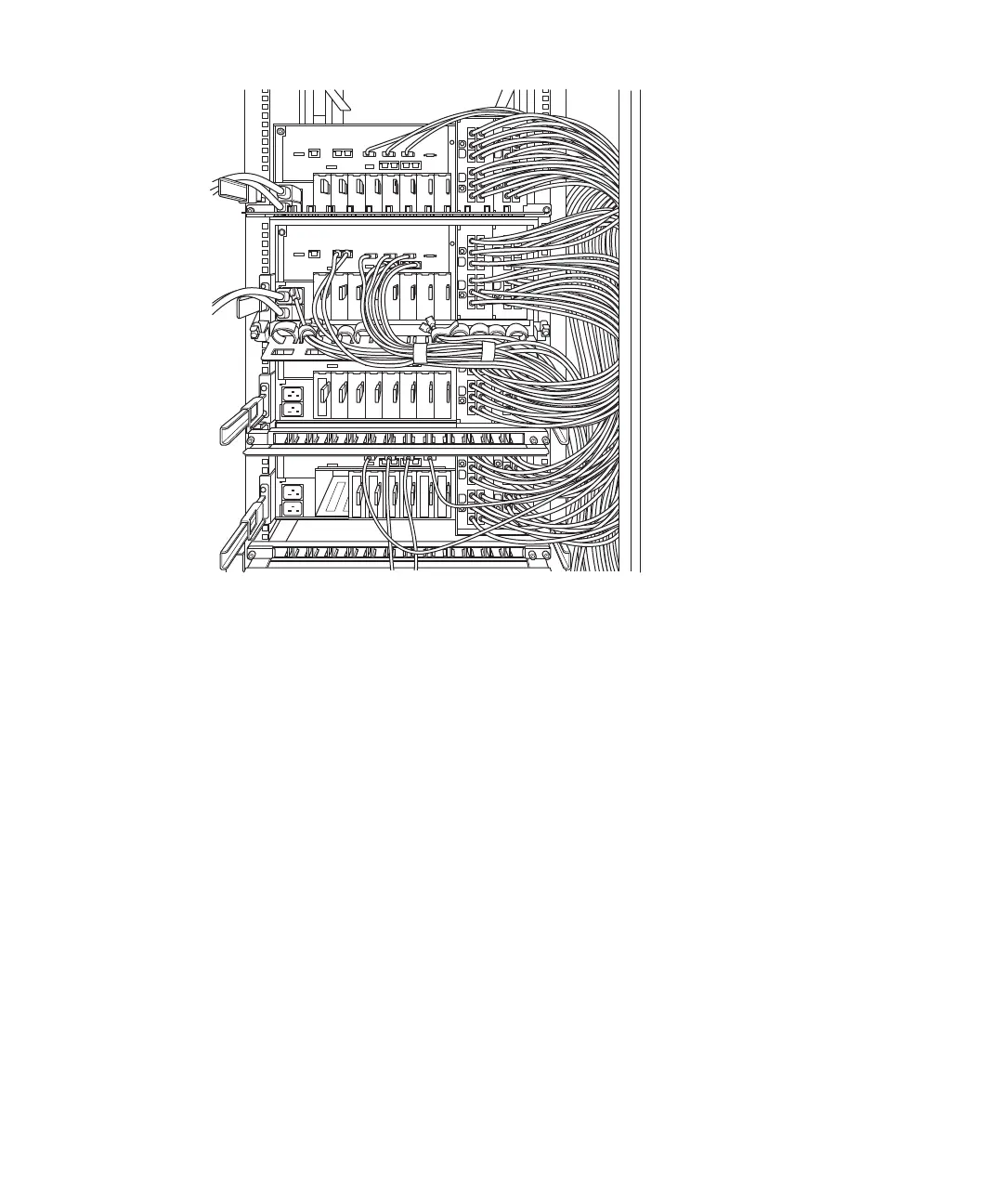

Figure
5-15
　　
Example
of
stored
cables
(4BB
configuration)
5.5.2 Rack
with
a
width
of
600
mm
(23.6
in.)
For
a
rack
with
a
width
of
600
mm
(23.6
in.),
there
is
not
enough
space
at
a
side
of
the
rack.
You
need
to
distribute
cables
appropriately
to
the
left
and
right
sides
and
bundle
them
together
there.
This
section
describes
the
recommended
method
of
storing
the
cables
by
using
the
3BB
configuration
and
4BB
configuration
as
examples.
Store
the
cables
properly
according
to
the
rack
used.
4BB
configuration
For
the
4BB
configuration,
place
the
crossbar
cables
connected
to
the
2L
and
2R
ports
of
XBU#0/#1
together
at
the
right
side
as
viewed
from
the
rear
of
the
rack.
Place
the
other
crossbar
cables
together
at
the
left
side
as
viewed
from
the
rear
of
the
rack.
1.
Hang
the
power
cords
from
the
left
side
as
viewed
from
the
rear
of
the
rack.
Place
the
power
cords
over
the
cable
support
fixing
bracket
to
hang
them
there
as
is.
2.
Place
the
crossbar
cables
connected
to
the
0L/0R
and
1L/1R
ports
of
each
XBU
together
at
the
left
side
as
viewed
from
the
rear
of
the
rack.
3.
Secure
the
crossbar
cables
placed
together
at
the
left
side
to
the
cable
support
with
hook-and-loop
fast ener
strips.
Fujitsu
M10/SPARC
M10
Systems
Installation
Guide
･
July
2015174
