Note -
Set the master chassis and the chassis that has the standby XSCF to the same mode. If
their settings are different, an asterisk (*) is shown beside the components in the output of
the showhardconf or showstatus command.
Remarks -
In a building block configuration with direct connections between chassis, change
the mode switches of BB-ID#00 and #01 to Service mode. In a building block configuration
with connections through crossbar boxes, change the mode switches of BB-ID#80 and #81 to
Service mode.
Service
Locked
6.2.2 Turning on the input power and starting the XSCF
1.
Set the mode switch on the operation panel to the Service position. For a
build ing block configuration, set the mode switches on the master chassis
and the chassis that has the stand by XSCF to the Service position.
The Service position is indicated by a wrench icon. The Locked position is
indicated
by a lock icon.

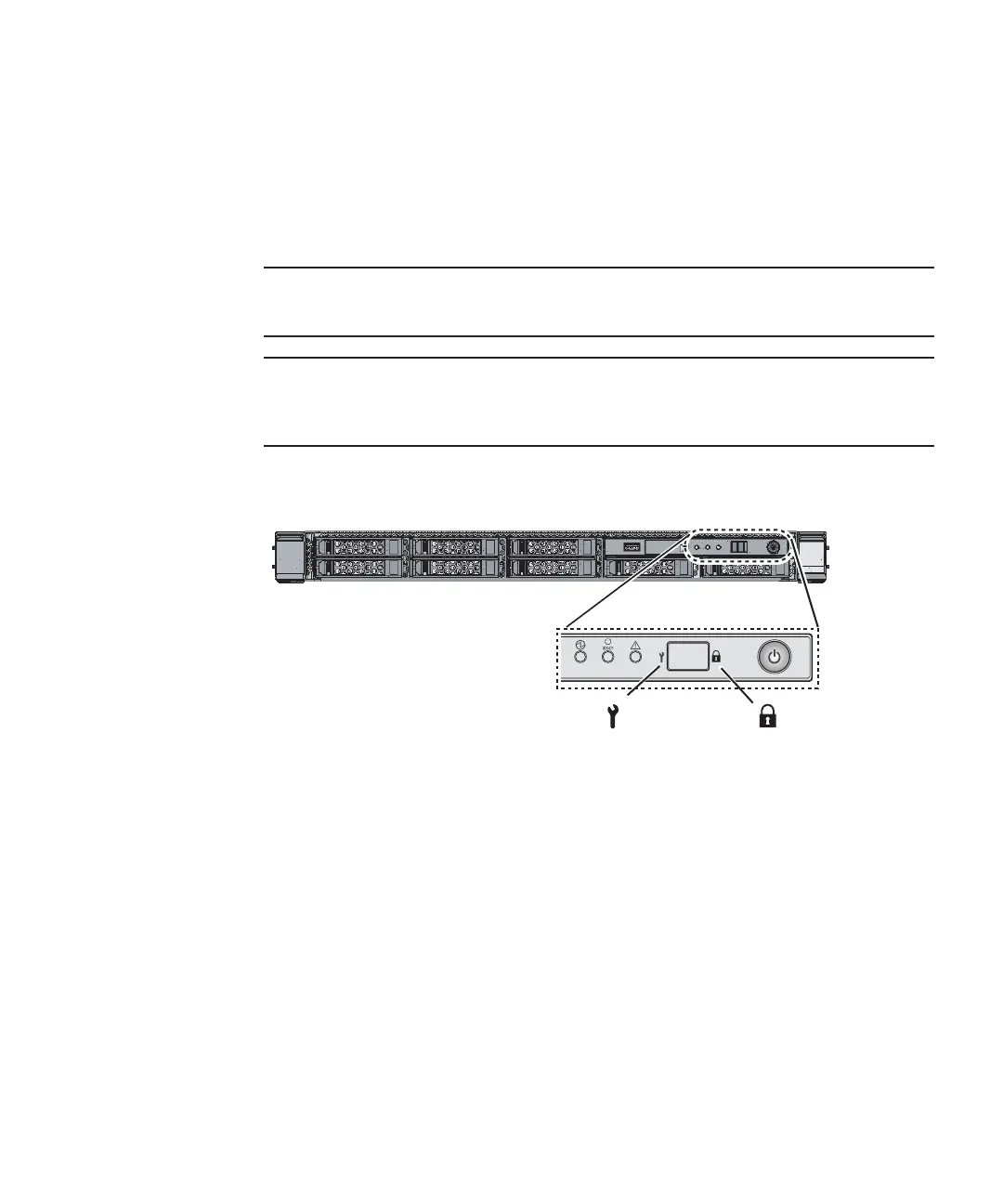

Figure 6-1
Mode switch on the operation panel of the SPARC M10-1
Chapter 6 Performing an Initial System Diagnosis 179
