7. HOW TO MANAGE CHARTS
7-12
7.8 How to Export a List of Specific Licenses
You can export a list of your ENC or C-MAP (excluding C-MAP DL) licenses to a USB
flash memory, in .txt format.
1. Set a USB flash memory in the USB port on the Control Unit.
2. Get into the Chart maintenance mode then click the [License] button.
3. Click the [ENC] or [C-MAP] tab.
4. Click the [Export List] button.
5. Change the file name at [File Name] if desired.
6. Select the USB flash memory then click the [Save] button.
7. Click the [OK] button to finish.

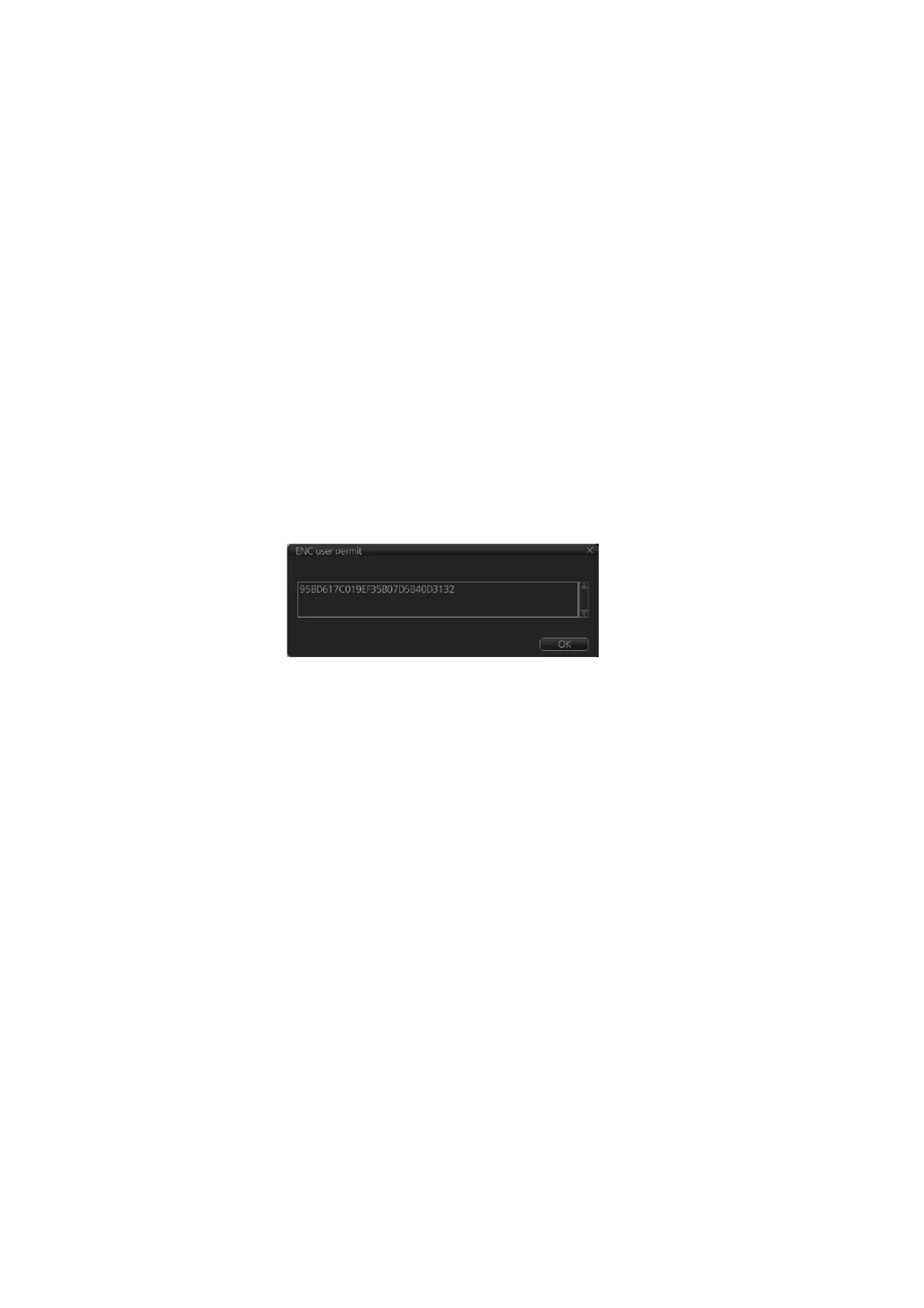

7.9 How to Show the ENC Permit
1. Get into the Chart maintenance mode then click the [License] button.
2. Click the [ENC] tab.
3. Click the [ENC User Permit] button to show the ENC permit.
4. Click the [OK] button to finish.
7.10 How to Backup, Restore Licenses
You can make backup copies of your ENC and AVCS (AIO) licenses and save them
to a USB flash memory. If re-installation of the licenses becomes necessary, you can
re-install them from the USB flash memory. The backup and restore functions are not
available with C-MAP charts.
To backup licenses:
1. Insert a USB flash memory into the USB port on the Control Unit.
2. Get into the Chart maintenance mode, then click the [License] button on the
InstantAccess bar to show the [Licenses] dialog box.
3. Click the [Backup Licenses] button.
4. Select the USB flash memory then click the [OK] button to save the licenses.
To restore licenses:
1. Insert the USB flash memory that has the licenses into the USB port on the Control
Unit.
2. Get into the Chart maintenance mode, then click the [License] button on the
InstantAccess bar to show the [Licenses] dialog box.
3. Click the [Restore Licenses] button.
4. Select the licenses from the USB flash memory then click the [OK] button.
