2-1
2. RADAR, CHART RADAR
OPERATION

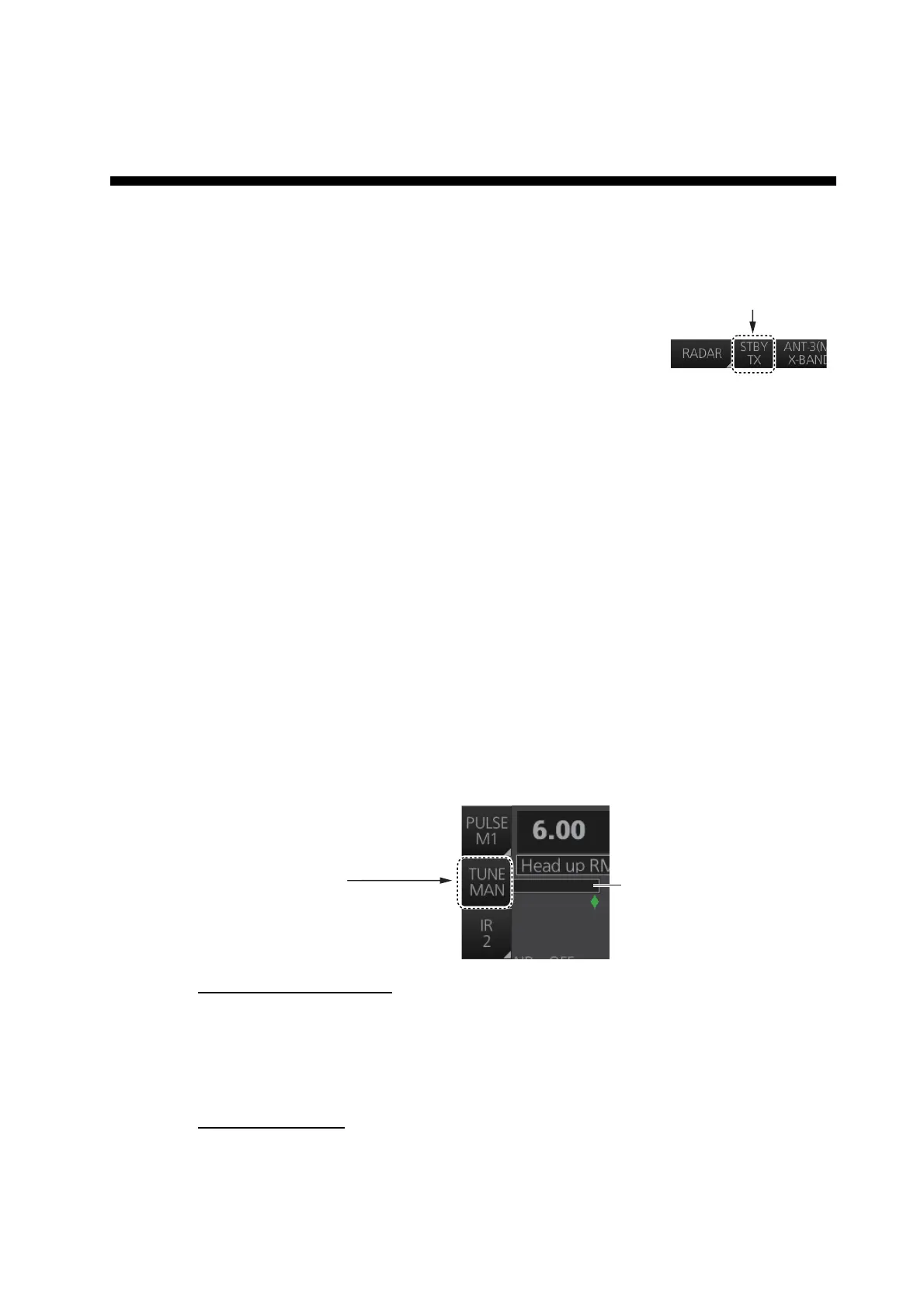

2.1 How to Transmit
After the power is turned on and the magnetron has
warmed*, "ST-BY" appears at the screen center, meaning
the radar is ready to transmit radar pulses. You can transmit
by pushing the STBY/TX key on the Control Unit, or clicking
the [STBY TX] button on the Status bar.
*: The solid state radar does not have a magnetron, therefore it has no warming peri-
od.
The radar is initially set to previously used range and pulse length. Other settings such
as brilliance levels, VRMs, EBLs and menu option selections are also set to previous
settings.
The STBY/TX key (or [STBY TX] button) toggles the radar between STBY and
TRANSMIT state. The antenna is stopped in stand-by and rotates in transmit. Set the
radar in standby when its use is not required, to conserve the life of the magnetron.
2.2 How to Tune the Radar Receiver
After the radar is transmitting, adjust the receiver to the exact frequency of the trans-
mitter.
2.2.1 Tuning for magnetron radar
How to initialize tuning
Automatic tuning is initialized during the installation. However, if you feel that automat-
ic tuning is not working properly try re-initializing the tuning. Right-click the [TUNE] but-
ton then select [Tune Initialize] to start the initialization. The indication [Tune INI]
appears during initialization.
Automatic tuning
Click the [TUNE] button on the InstantAccess bar to display [TUNE AUTO].
[STBY TX] button
[TUNE] button
TUNE MAN: Manual tuning
TUNE AUTO: Automatic tuning
Tuning bar
