22. SETTINGS MENU
22-8

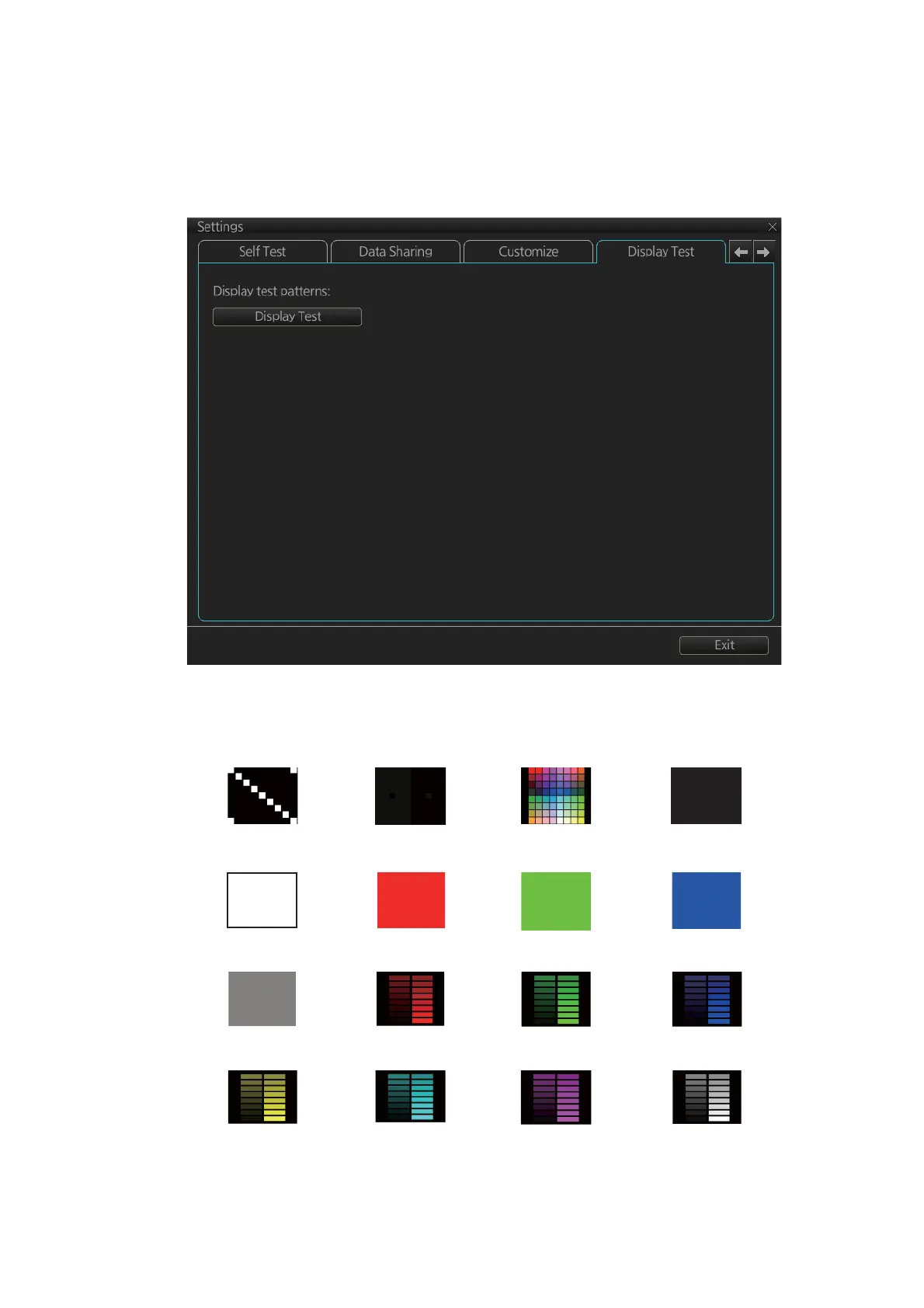

22.8 Display Test
The [DIsplay Test] page displays various test patterns to check the FURUNO-supplied
monitor for proper display of colors. Click the [Display Test] button to start the test. The
buzzer sounds when the display test starts.
Left-click to proceed in the numerical order shown below; right-click to proceed in re-
verse order.
To quit the display test at any time, press the ESC key on the applicable Control Unit.
(1) (2) (3) (4)
(5) (6) (7) (8)
(9) (10) (11) (12)
(13) (14) (15) (16)
Diagonal Gray and black All colors Black
White Red Green Blue
Gray Red bars Green bars Blue bars
Yellow bars
Aqua bars Purple bars Gray bars
