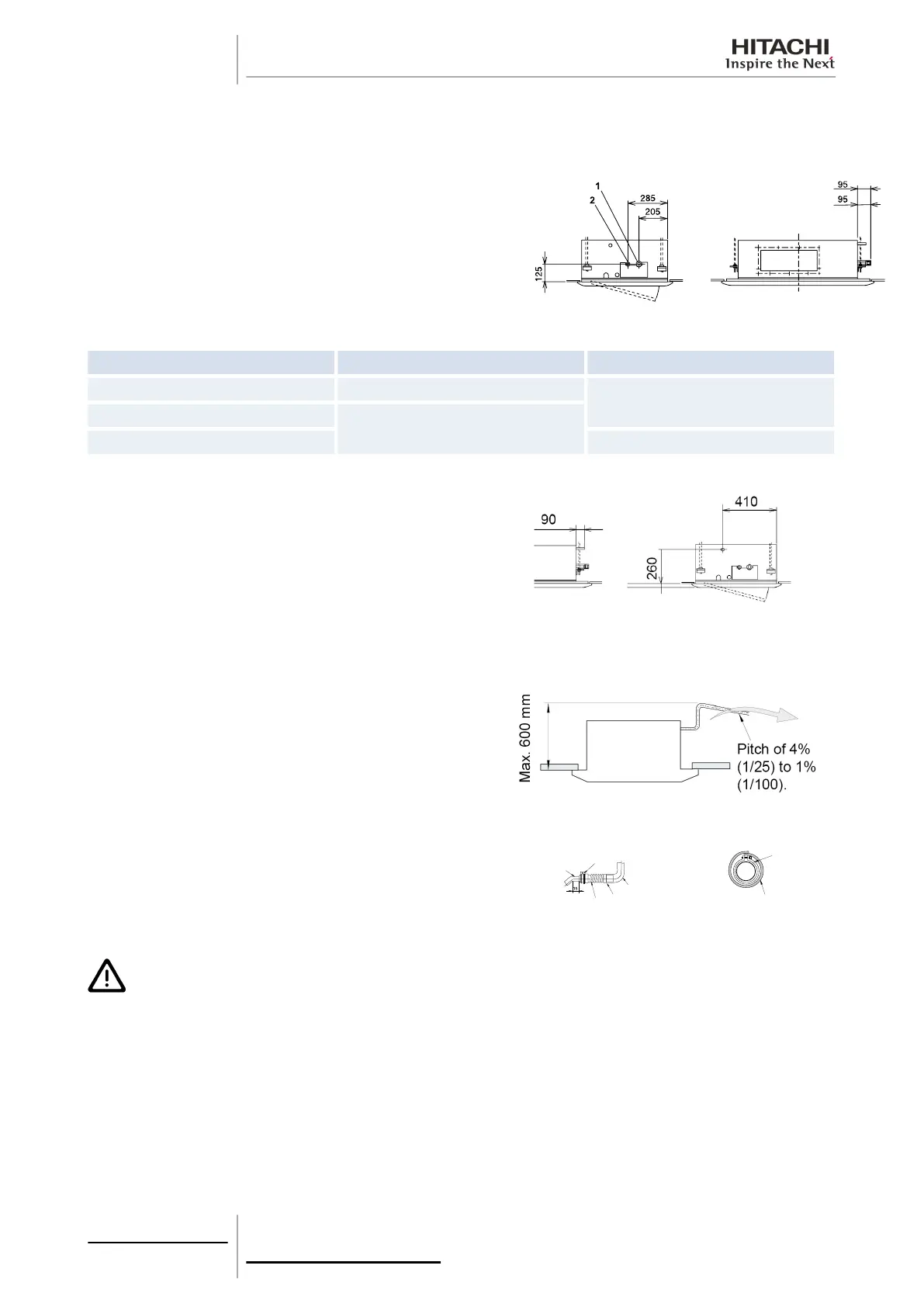

3.5.3 RCD - 2-way cassette (1.0-5.0)FSN2
¿ Gas refrigerant pipe installation
The correct position for the gas refrigerant pipe connection is
shown below. The pipe connection must be accessible from all
directions (above, left or right).
Models (1) Gas pipe mm (inches) (2) Liquid pipe mm (inches)
RCD-(1.0/1.5)FSN2 Ø12.70 (1/2)
Ø6.35 (1/4)
RCD-2.0FSN2
Ø15.88 (5/8)
RCD-(2.5–5.0)FSN2 Ø9.53 (3/8)
¿ Drain pipe installation
The correct position for the drain hose connection is shown below.
Prepare a polyvinyl chloride (PVC) pipe with an outer diameter of
32 mm.
Secure the pipe with the clamp and adhesive supplied.
The drain hose must have a gradient of 1% (1/100) to 4% (1/25).
C A U T I O N
• Do not apply adhesive between the drain hose connection and the drain hose.
• Do not apply too much force when making the drain hose connection as this could damage it.
• Do not use bent or twisted drain pipes as these will cause water leaks.
Drainage pipe
connection
Drainage pipe
(accessory)
Use PVC adhesive
PVC pipe Ø 32
(field-supplied)
Clamp (accessory)
Do not use adhesive
Clamp (accessory)
Insulation
(field-supplied)
