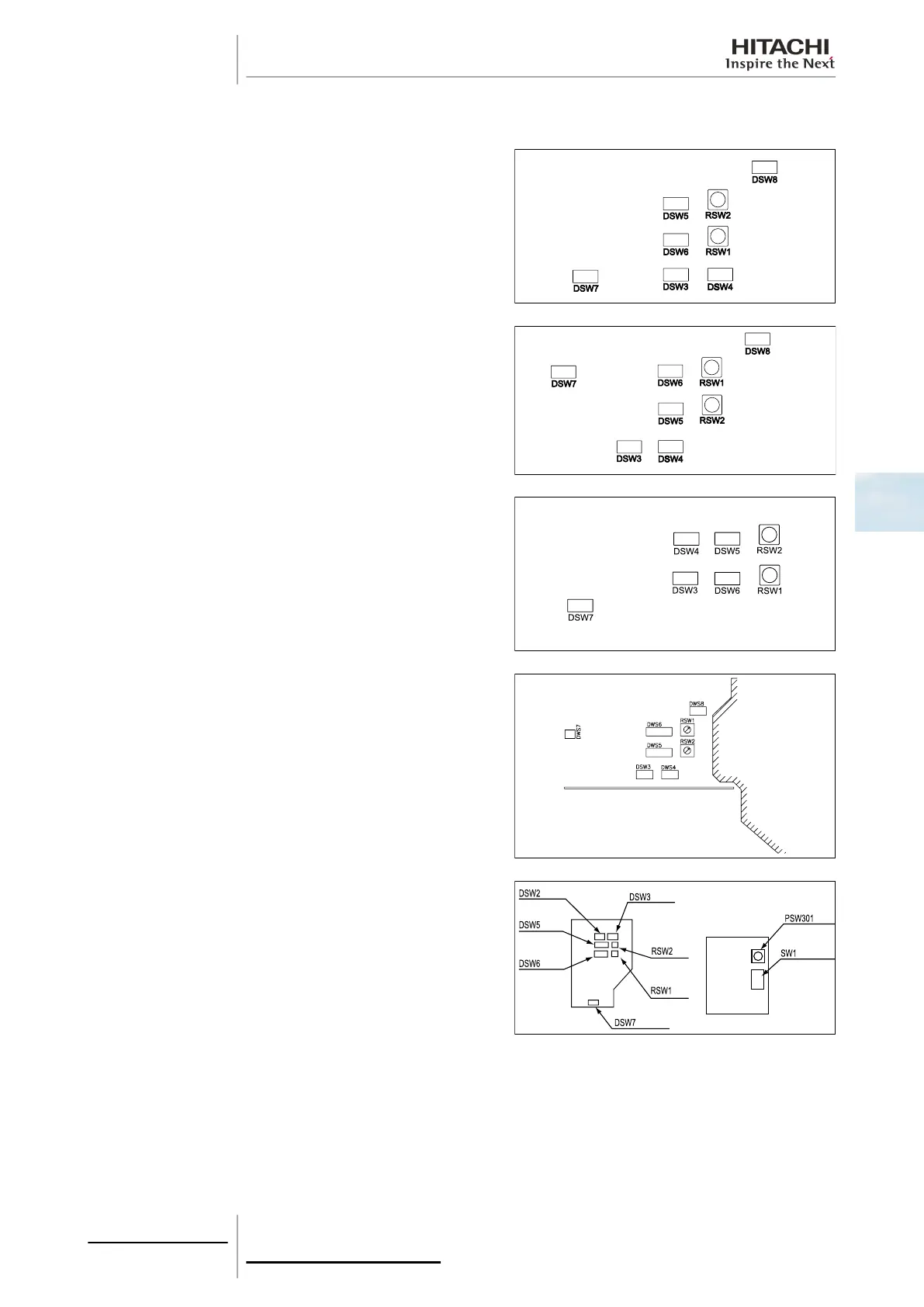

4.2.1 Location of DIP switches and RSW switches
Location of
DIP
switches and
RSW
rotary switches
•
RCI(M)-(1.0-6.0)FSN2(E)
units
•
RCD-(1.0-3.0)FSN2
units
•
RPC-(2.0-6.0)FSN2E
units
•
RPF(I)-(1.0-2.5)FSN2E
units
•
RPI(M)-(0.8-6.0)FSN2E (-DU)
units
•
RPI-(8.0/10.0)FSN2E
units
•
RPK-(1.0/1.5)FSN(H)2M
units
