10.3.4 Removal of the fan duct and the fan

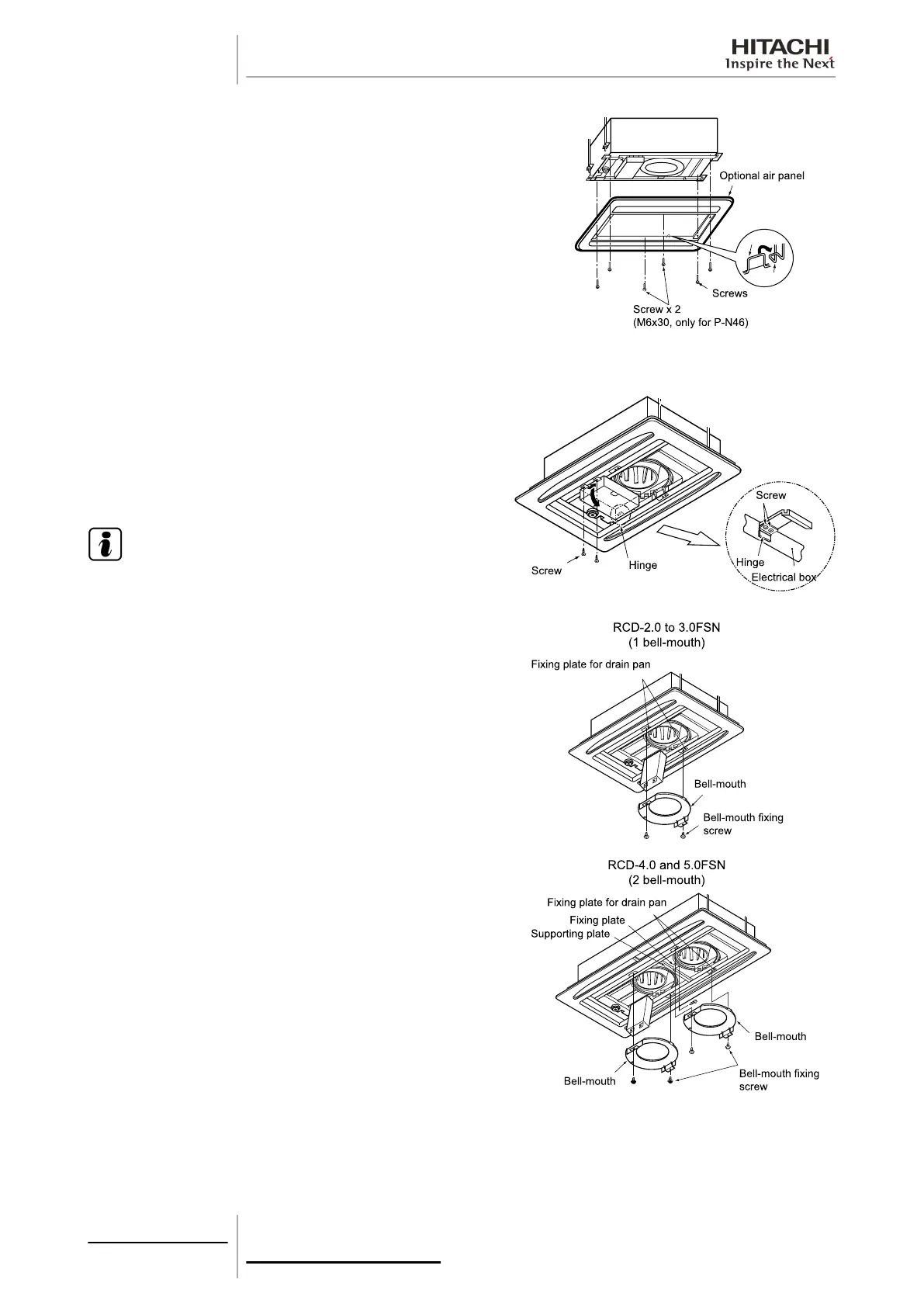

Remove the optional air panel in line with the instructions given in
chapter Removal of the optional air panel, see on page 287.
Separate the connectors from each cable in the electrical box.
Remove the two set screws from the electrical box and turn around
90° downwards (the electrical box is attached by the hinge).
N O T E
Do not remove the set screw from the hinge.
4 and 5 HP models: remove the screw from the securing plate and
remove.
Remove the two screws securing the bellmouth to the drain pan
securing plates and remove it.
