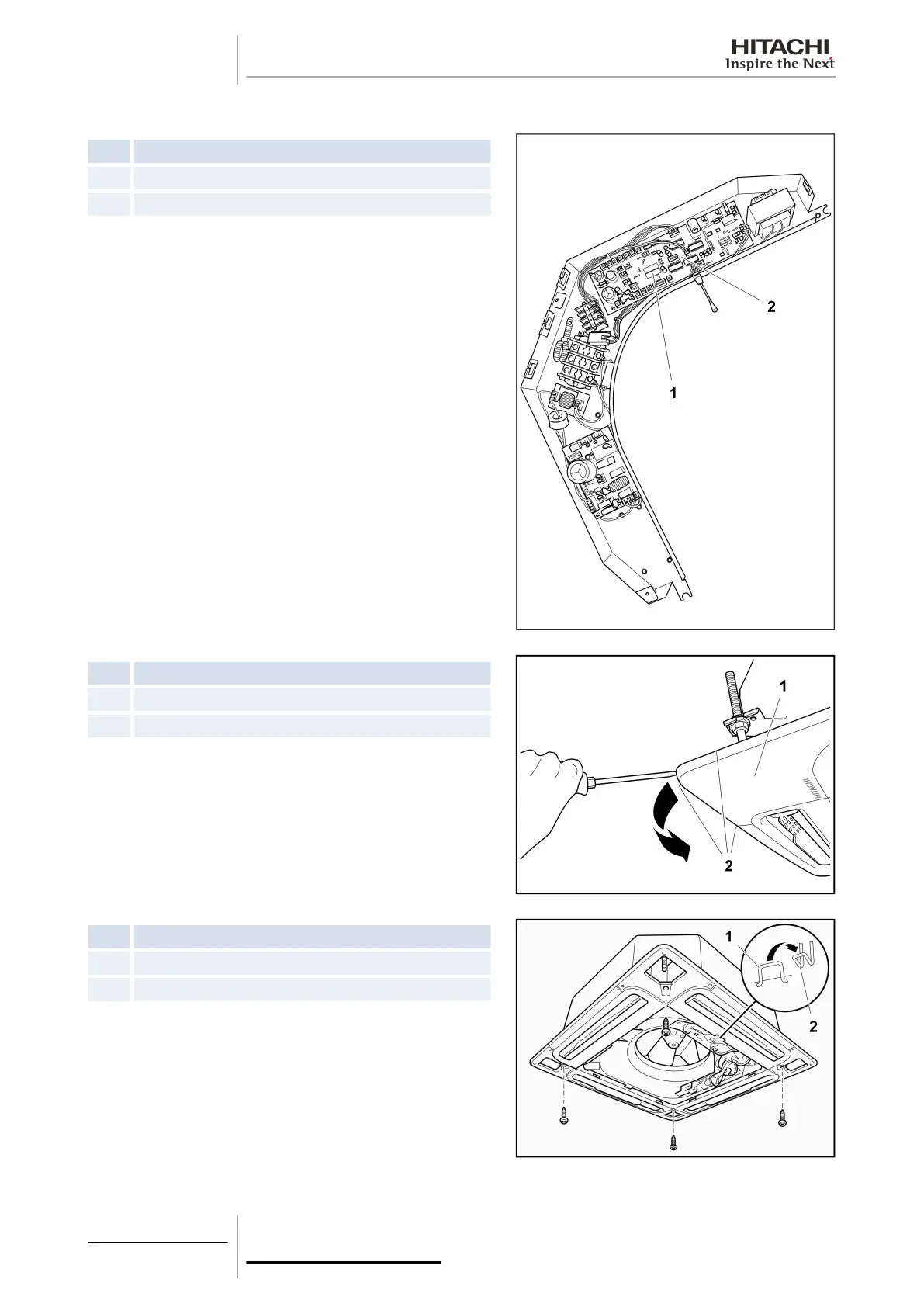

10.1.4 Removal of the optional air panel

Nº Part

1 Main PCB

2 Connector CN17 for the louver motor

Remove the electrical box cover Removal of the electrical box

cover, see on page 269 and separate connector CN17 from the

louver motor in the main indoor PCB.

Remove the air inlet grille from the optional air panel.

Remove the four panels from the corners as shown in the figure.

Insert a screwdriver or a coin into the three grooves in the corner

and release the attachment from each corner.

Remove the four screws from the optional air panel and secure to

the drain pan hinge as shown in the figure. Then remove the

optional air panel from the unit.

Nº

Part

1 Panel corner

2 3 grooves

Nº Part

1 Hinge

2 Hook
