Hitachi RCI User Manual

Nº Part

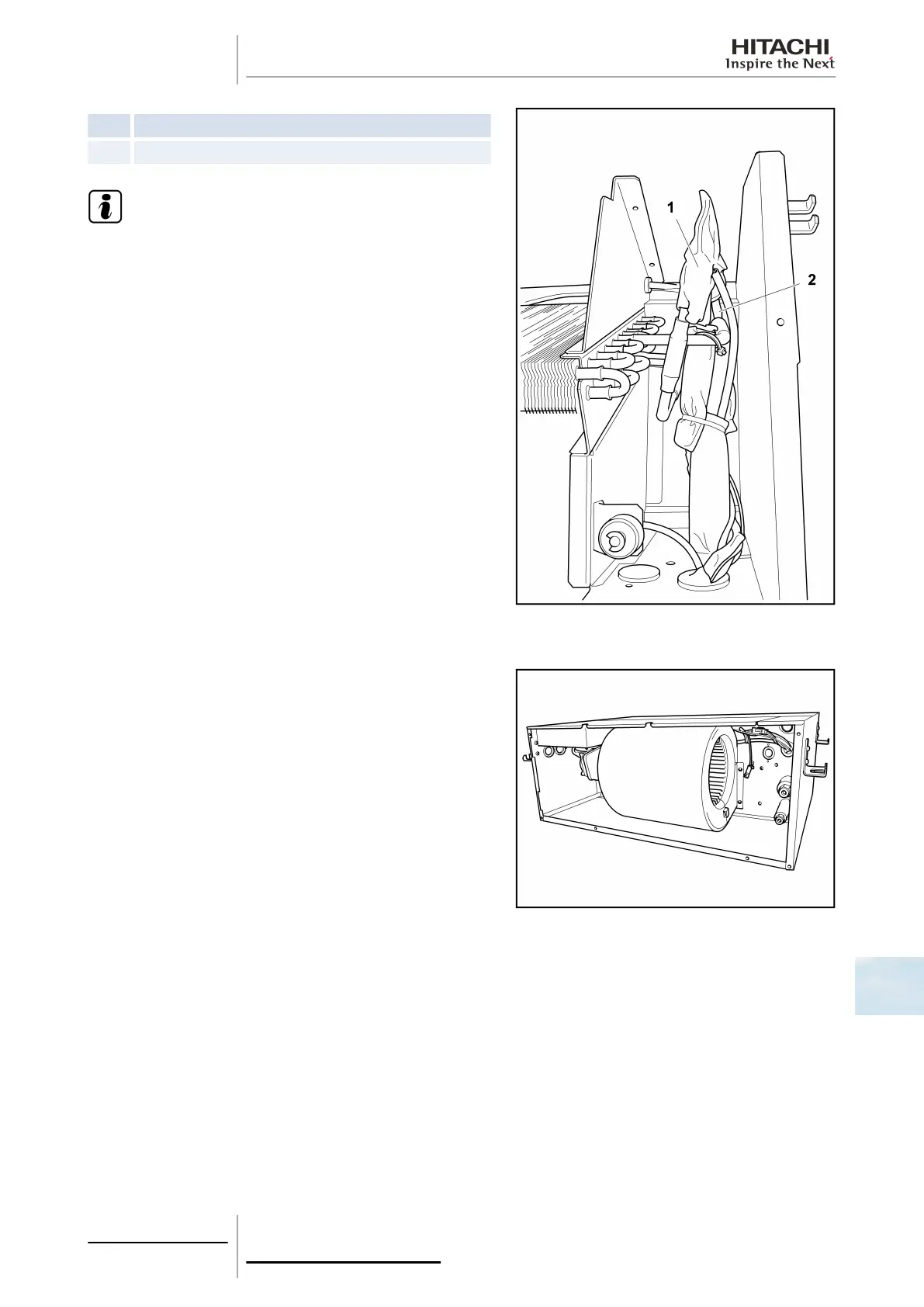

1 Location of the thermistor
N O T E
• Black connector: liquid thermistor.
• Yellow connector: gas thermistor.
10.6.4 Removal of the fan parts
Fan parts: fan motor, fan casing and duct.
Remove the rear cover as indicated in chapter Removal of the inlet
and outlet air thermistors, see on page 297.
Remove the tape located in the centre of the casing.
Press the locks and remove half of the fan casing.
Remove the fixture support screws and carefully remove the motor
together with the fans.
Loosen the screws securing the fans to the motor shaft.
10 Servicing
313
SMGB0063 rev. 1 - 10/2010
10
